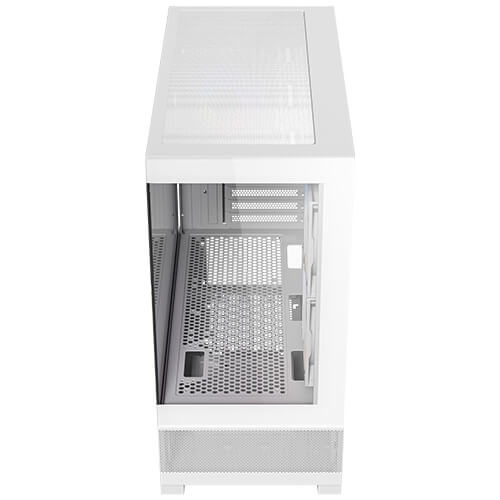

CX500m ARGB WHITE - Mid-Tower Gaming Case
Panoramic 270° View

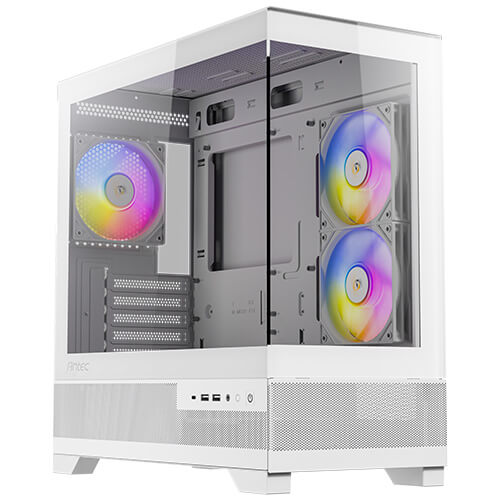

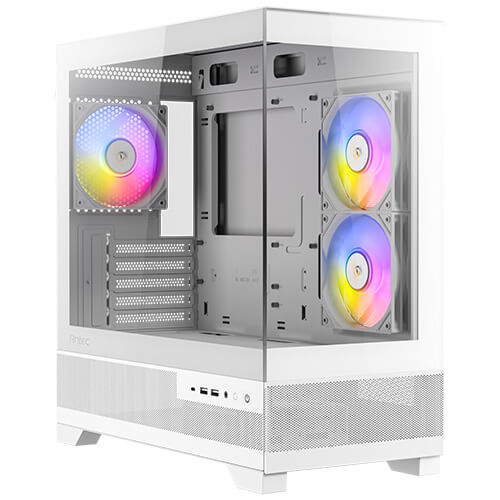

Standing out with full-view design on the seamless steel-tempered glass, CX500M ARGB's left and front panel offer an unobstructed view of your build, creating a stunning showcase for your components.
Vertical Cooling with Massive Air Intake

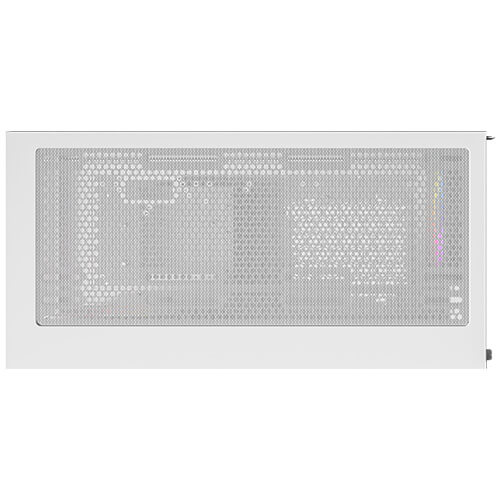

Bottom-up vertical airflow via mesh on lower front, lower left, and right side accelerates the heat dissipation.
Tool-Free Panels
Front and side panel adopt fixing stud design, which makes assembly and disassembly easier and helps avoid possible glass breakage.
Pre-Installed
3 x 120mm ARGBÂ fans
Use the major case fan to daisy-chain the other two fans for ARGB sync and create your personal style.
EVA PSU
Cushion Pads
With EVA anti-vibration foams on the power supply mount position, your lovely PC hardware is well protected against any jar or resonance caused by PSU operation.
Compatibility
-
Motherboard supportMicro-ATX , ITX
-
CPU cooler max height≤ 165mm
-
GPU max length≤ 415mm
-
2.5"1
-
3.5†/ 2.5†Drive Mounts2 / 1
-
Power Supply max length(Include cable) ≤ 210mm (With HDD)
(Not Include cable) ≤ 270mm (Without HDD)
Ample Cable
Management Space
23mm of cable management space enusres your PC build looks neat.
SPECIFICATIONS
| Dimensions |
436 x 210 x 446mm (DWH) |
| Form Factor |
Mini Tower |
| Materials |
Steel + Glass |
| Mainboard Support |
Micro-ATX , ITX |
| Front Access & Controls |
Power, LED Control Button, USB3.0 x 2 , Type-C 3.2 Gen 2 x 1, Headphone/Mic Combo Jack |
| Side Panel |
4mm Tempered Glass |
|
| Drive Bays |
| Expansion Slots |
5 |
| 3.5" /2.5" |
2/1 |
| 2.5" |
1 |
|
| Fan |
| Top |
3 x 120mm / 2 x 140mm |
| Side |
2 x 120mm |
| Power Supply Shroud |
3 x 120mm |
| Rear |
120mm |
| Included Fan(s) |
2 x 120mm ARGB reverse fans on right side + 1 x 120mm ARGB fan in rear |
|
| Radiator Support |
| Top |
120 / 140 / 240 / 280 / 360mm |
|
| Clearance |
| Max GPU Length |
≤415mm |
| Max CPU Cooler Height |
≤165mm |
| Max PSU Length |
(Include cable) ≤210mm (With HDD)
(Not Include cable) ≤270mm (Without HDD) |
|
| Miscellaneous |
| Dust Filter |
Top / Bottom |
| Net Weight |
6.34 Kg |
| Gross Weight |
8.2 Kg |
| Warranty |
1 Year |
| UPC# |
White: 0-761345-10144-8 |
|
