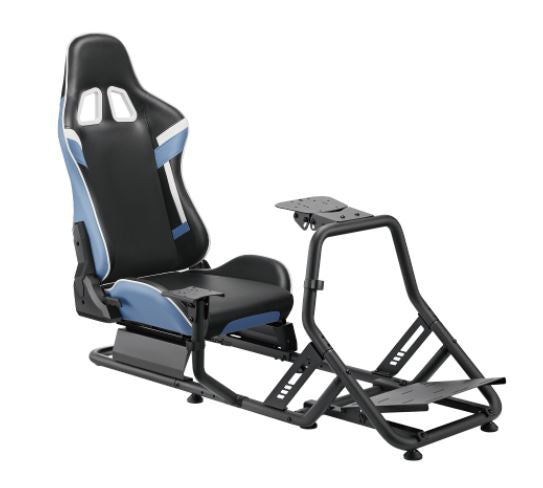

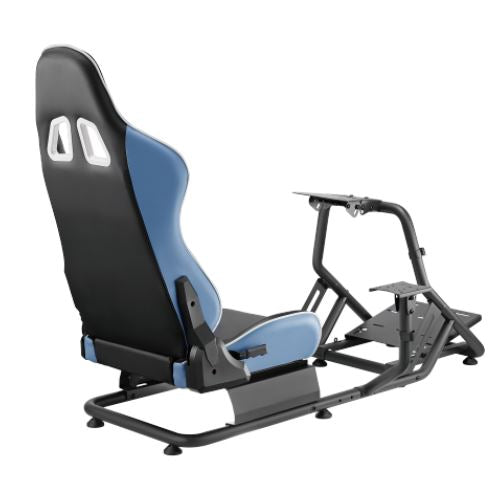

LRS09-BS02 shows the user what is “Racing in the most comfortable way”. The steering wheel mount, pedal mount and the racing seat can be fine adjusted for different gamers usage. The user can also install the gear shifter mount either left or right for preference. The pre-drilled mounting points provide compatibility with most major wheel and pedal brands including: Logitech, Fanatec, Thrustmaster and more.
FEATURES
-

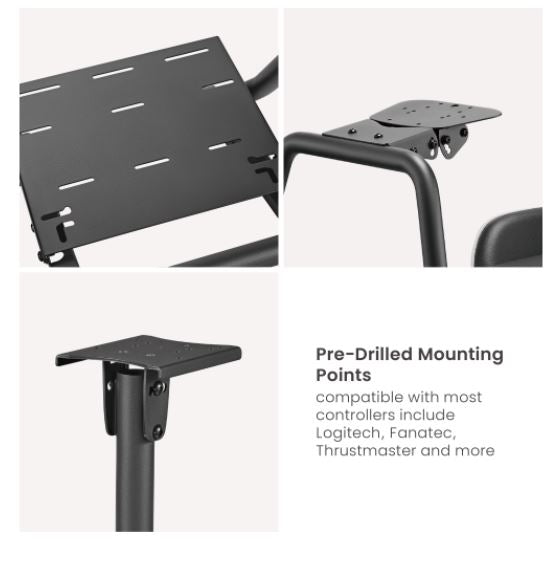

Pre-drilled Mounting Points: compatible with most wheels, gear shifters and pedals including Logitech, Fanatec, Thrustmaster and more
-
High Quality Powder-Coated Finish: features a stylish anti-scratch surface
-

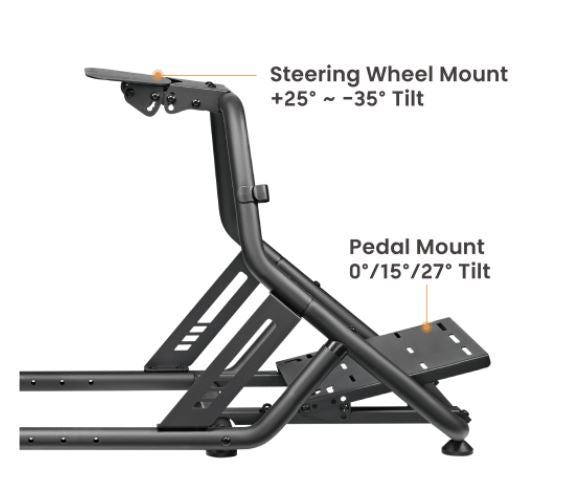

Adjustable Steering Wheel Plate: adjusts up/down & forward/back
-
Adjustable Gear Shifter Mount(Holder): can be mounted for left or right side use
-
Adjustable Pedal Mount(Plate): enables tilting and forward-back location conforming to your body for optimum support
-

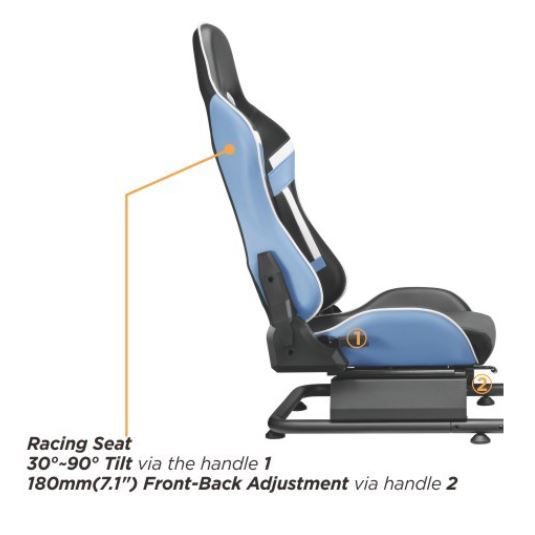

Adjustable Seat with PVC Leather Cover:enables quick reclining using the crank handle and forward-backward gliding using the seat handle
SPECIFICATIONS
| Product Category: |
Racing Simulator Cockpit |
| Rank: |
Standard |
| Dimensions: |
708x1363x1080mm (27.9"x53.7"x42.5") |
| Weight Capacity: |
100kg (220lbs) |
| Frame Type: |
Fixed Frame |
| Frame Material: |
Steel |
| Frame Surface Finish: |
Powder Coating |
| Frame Color: |
Fine Texture Black |
| Seat Type: |
Reclining Seat with PVC Leather Cover |
| Seat Width: |
450mm (17.7") |
| Seat Gliding Track: |
180mm (7.1") |
| Seat Back Tilt Range: |
30°~90° |
| Steering Wheel Panel Tilt Range: |
+25°~-35° |
| Pedal Panel Tilt Range: |
0°/15°/27° |
| Cable Management: |
Yes |
| Accessory Kit Package: |
Normal/Ziplock Polybag |
WHAT'S SUPPORTED
| Wheel |
Pedals |
Shifter |
| Fanatec ClubSport DD/DD+ |
Fanatec ClubSport V3 |
Fanatec ClubSport |
| Fanatec CSL DD |
Fanatec ClubSport V3 inverted |
Fanatec ClubSport SQ |
| Fanatec DD Pro |
Fanatec CSL |
Logitech G25 |
| Fanatec Podium DD1/DD2 |
Fanatec CSL Elite Pedals V2 |
Logitech G27 |
| Logitech G PRO |
Fanatec CSL LC |
Logitech G29 |
| Logitech G25 |
Logitech G PRO |
Logitech G920 |
| Logitech G27 |
Logitech G25 |
Thrustmaster TH8 RS |
| Logitech G29 |
Logitech G27 |
|
| Logitech G920 |
Logitech G29 |
|
| MOZA R12 |
Logitech G920 |
|
| MOZA R16 |
MOZA CRP Pedals |
|
| MOZA R21 |
MOZA SRP Pedals |
|
| MOZA R3 |
Simagic Alpha P1000 |
|
| MOZA R5 |
Simagic Alpha P1000i |
|
| MOZA R9 |
Simagic Alpha P2000 |
|
| Simagic Alpha |
Thrustmaster 2 Pedals |
|
| Simagic Alpha Mini |
Thrustmaster T-LCM |
|
| Simagic Alpha U |
Thrustmaster T3PA |
|
| Thrustmaster T248 |
Thrustmaster T3PA-PRO |
|
| Thrustmaster T300RS |
Thrustmaster T3PM |
|
| Thrustmaster T500RS |
|
|
| Thrustmaster TS-PC/TS-XW |
|
|
| Thrustmaster TX |
|
