Unstoppable Tri-Band Speed —  Speeds up to 2402 Mbps (6 GHz) + 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz)

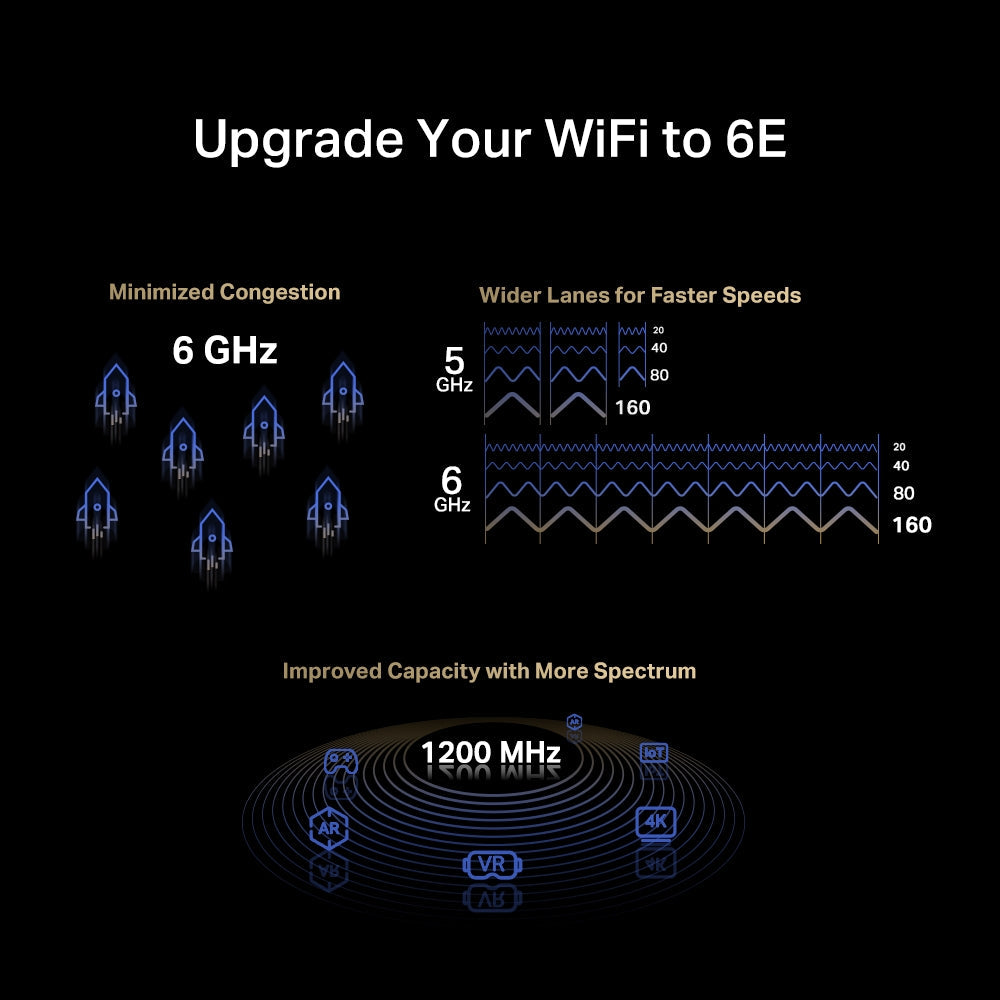

WiFi 6E Standard — Expand to the clearer, broader 6 GHz band

Reliable Connections — The latest Intel® Wi-Fi 6E chipset

Wider Signal Coverage — Two high-performance antennas

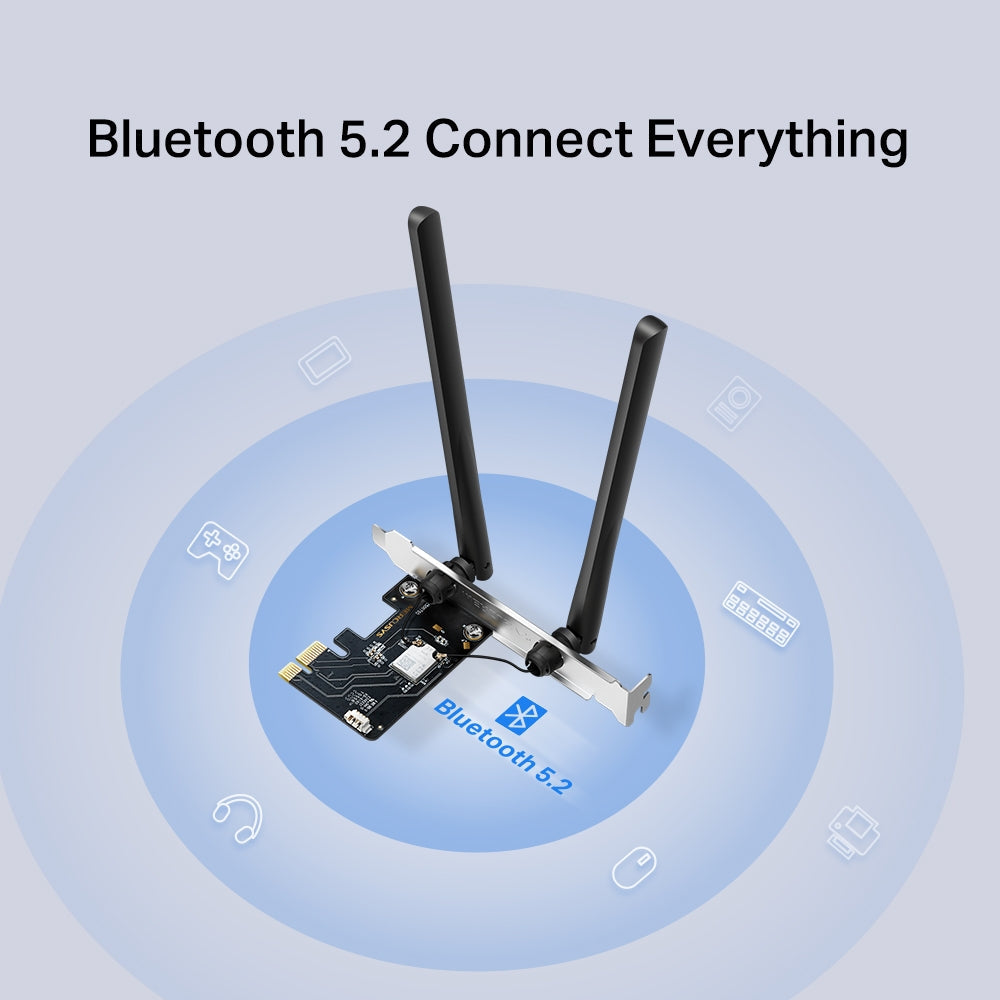

Bluetooth 5.2 — The latest Bluetooth technology achieves faster speeds and broader coverage

Improved Security — The latest security enhancement, WPA3, provides enhanced protection in personal password safety

Backward Compatibility — Full support for 802.11ax/ac/a/b/g/n standards

Windows Compatible — Supported operating system: Windows 10, 11 (64 bit), and the 6 GHz is now available on Windows 11

Wireless

Wireless Standards

IEEE 802.11 a/ac/ax 5 GHz
IEEE 802.11 b/g/n/ax 2.4 GHz

WiFi Speeds

2402 Mbps on 6 GHz
2402 Mbps on 5 GHz
574 Mbps on 2.4 GHz

Reception Sensitivity

6 GHz:
11ax HE160 MCS0:-86 dBm
11ax HE160 MCS11:-56 dBm

5 GHz:
11ax HE80 MCS0: -90 dBm
11ax HE80 MCS11: -59 dBm
11a 54Mbps: -77 dBm
11ac VHT80 MCS0: -92dBm
11ac VHT80 MCS9: -64dBm

2.4 GHz:
11ax HE40 MCS0: -91 dBm
11ax HE40 MCS11: -60 dBm
11g 54Mbps: -76 dBm
11n HT40 MCS7: -72dBm

Wireless Security

WPA-PSK/WPA2-PSK/WPA3-SAE

Hardware

Dimensions

8.9 × 4.8 × 0.85 in (226.3 × 120.8 × 21.5 mm)

Antenna Type

2× Fixed High-Performance Omni-Directional Antennas

Others

Package Contents

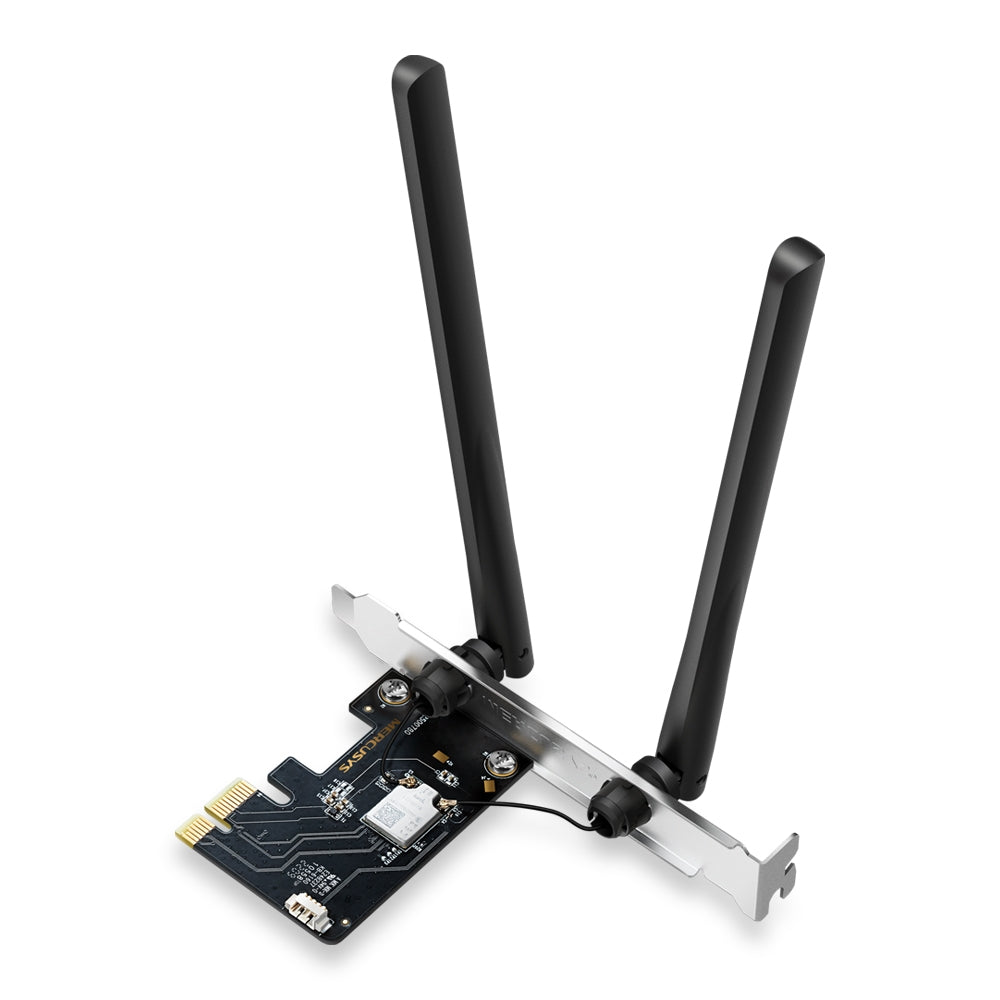

AXE5400 Wi-Fi 6E Bluetooth 5.2 PCIe Adapter (MA86XE)
Bluetooth Header Cable
Quick Installation Guide
Resource CD

Environment

Operating Temperature: 0°C~40°C (32°F~104°F)
Operating Humidity: 10%~90% Non-Condensing
Storage Humidity: 5%~90% Non-Condensing

System Requirements

Supported operating systems include Windows 10, 11(64-bit)
