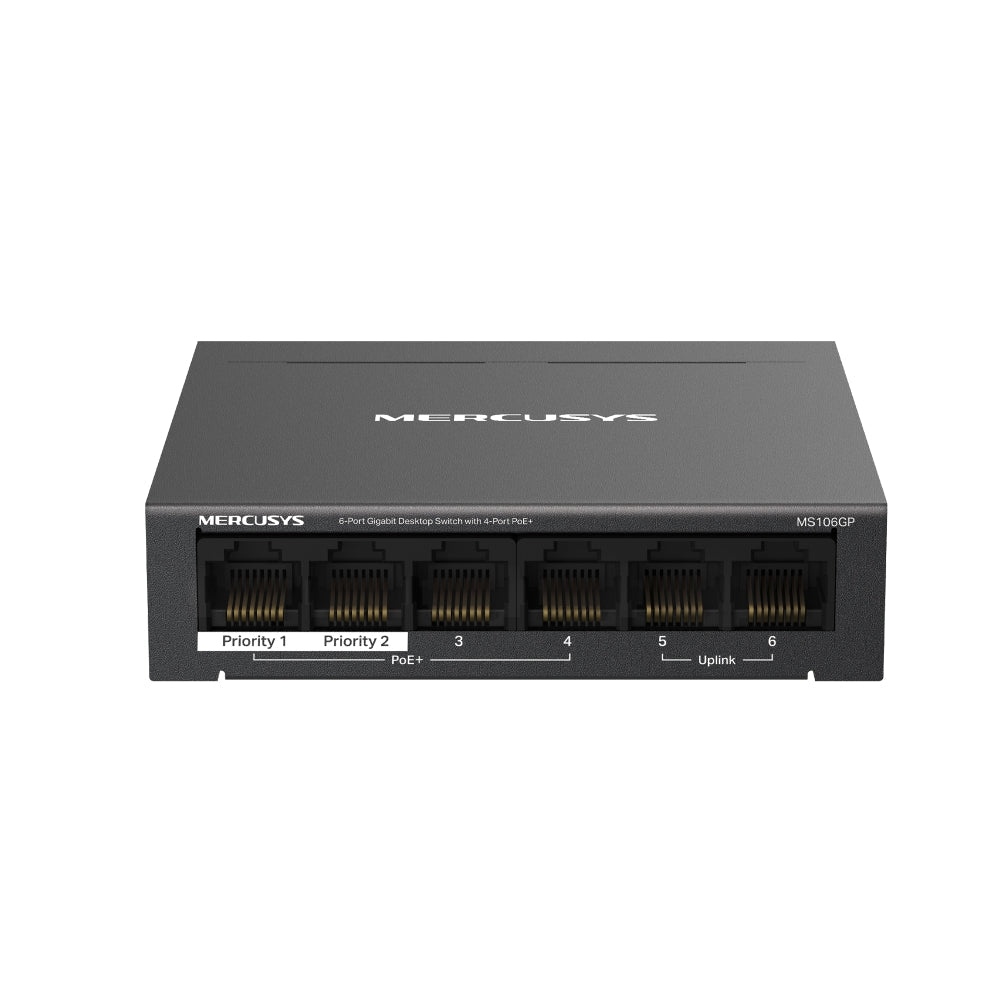

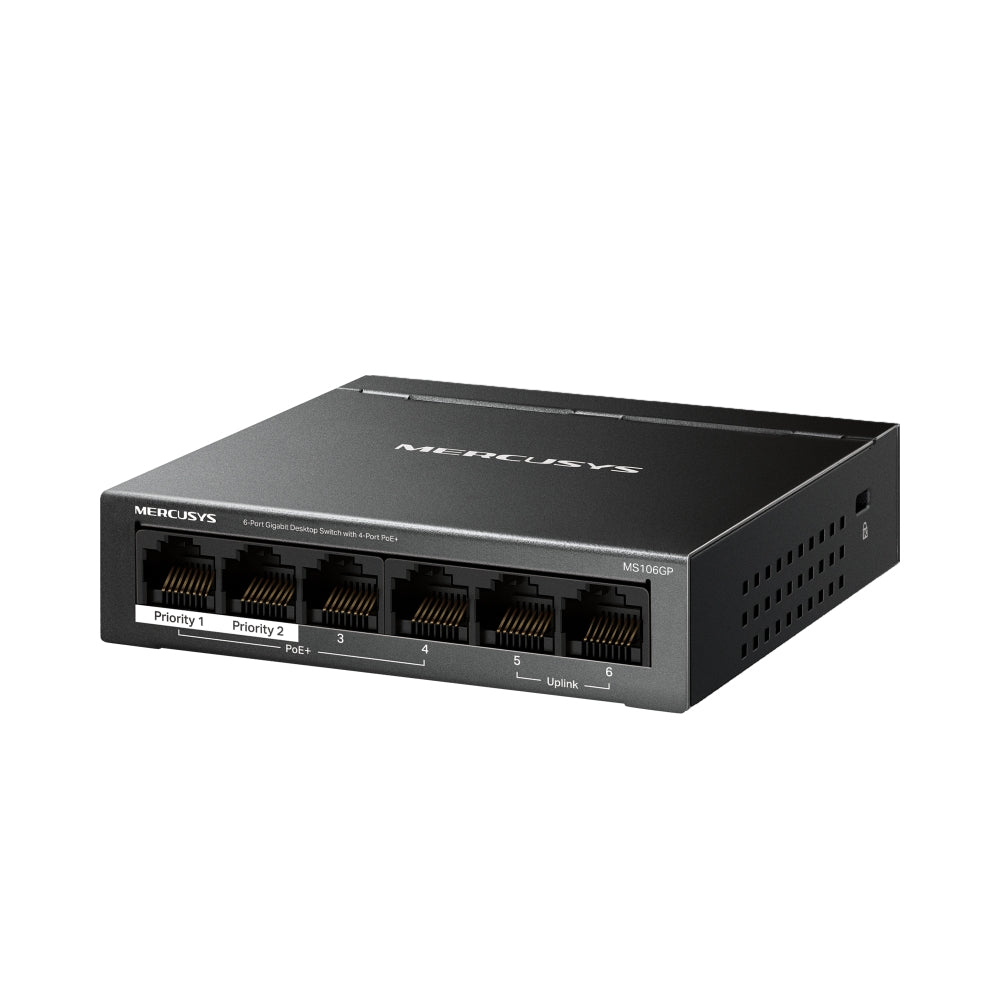

Mercusys MS106GP, Multi-port Gigabit Desktop Switch with PoE+

• Fast Gigabit Ports: 6×Gigabit RJ45 ports with 4 PoE+ ports

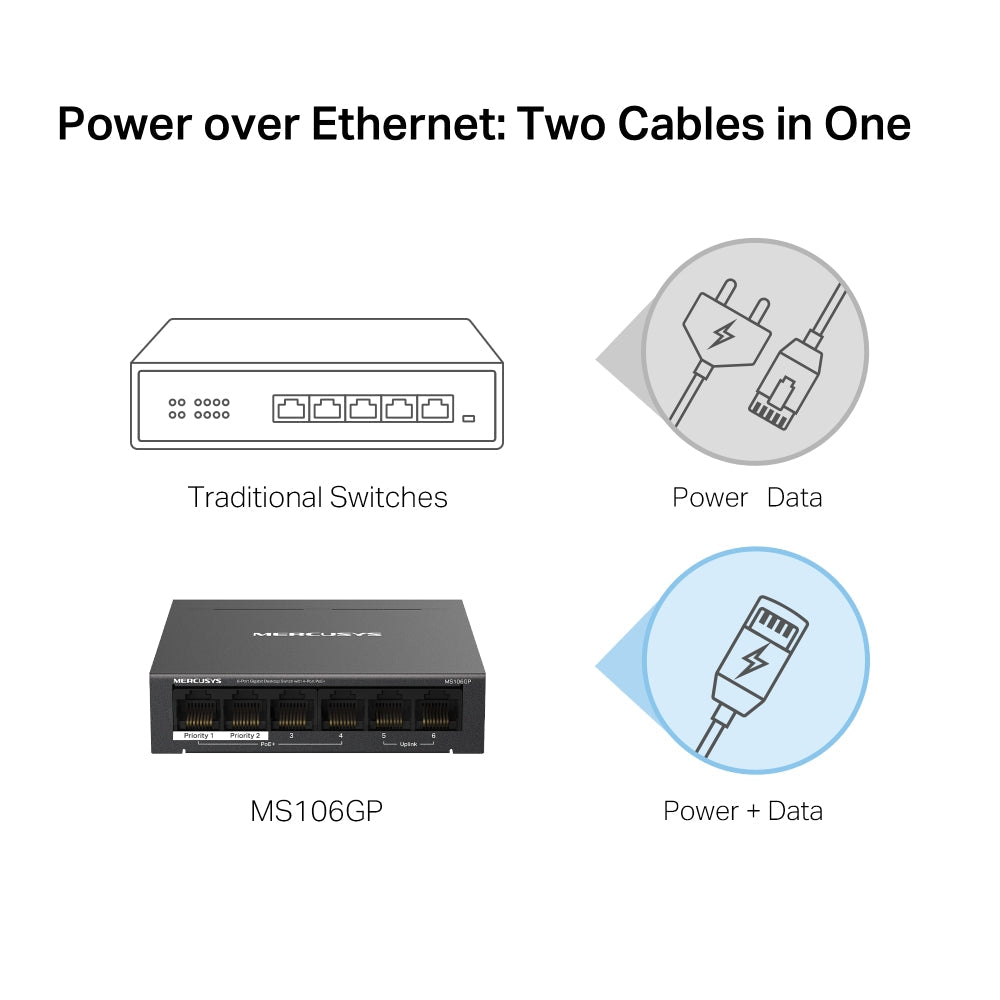

• High Power PoE+: Support PoE Power up to 30 W for each PoE port and 65 W for all PoE ports*. Works with IEEE 802.3af/at compliant PDs
• 2× Uplink Ports: MS106GP provides 2× uplink ports when turning on the isolation mode. One for connecting to the Internet and one for connecting to the NVR

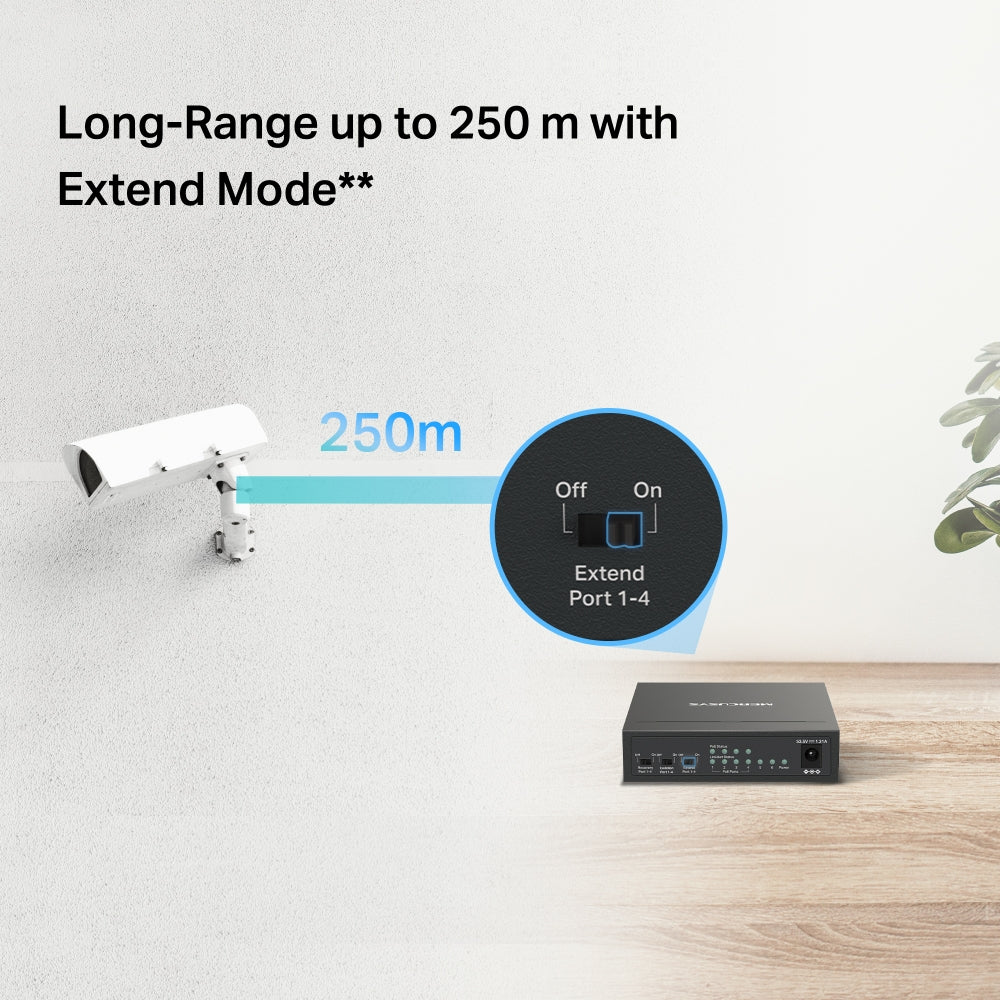

• Longer transmission: Increases PoE transmission distance to 250 m by Extend Mode**

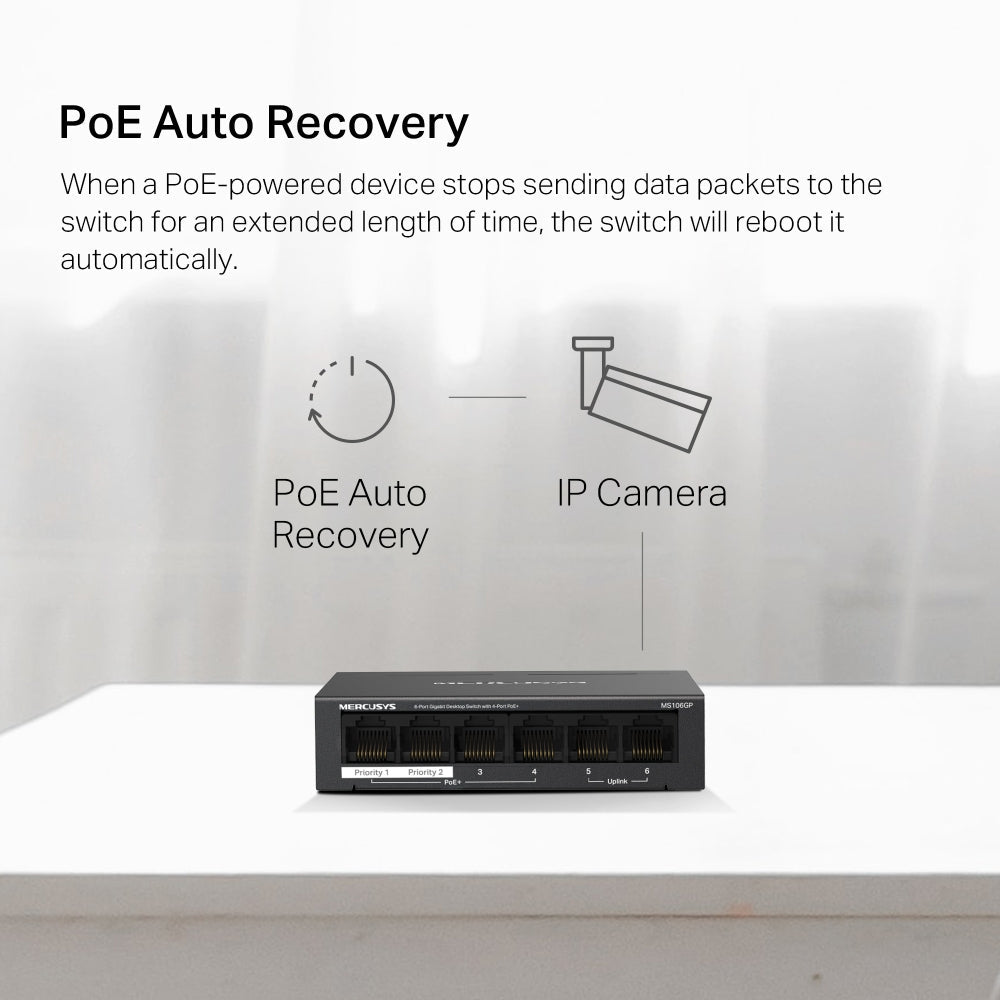

• PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices

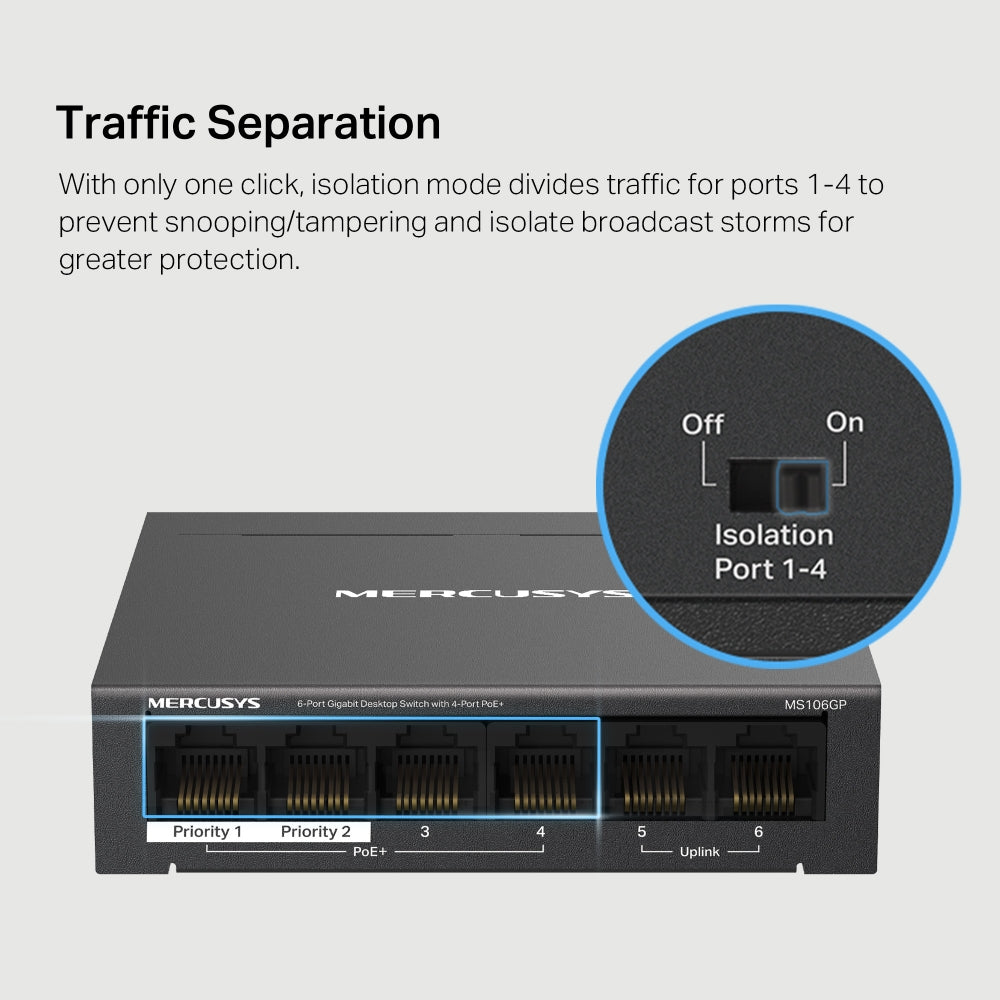

• Isolation Mode: One click to divide traffic for specific ports for stability and security
• Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs

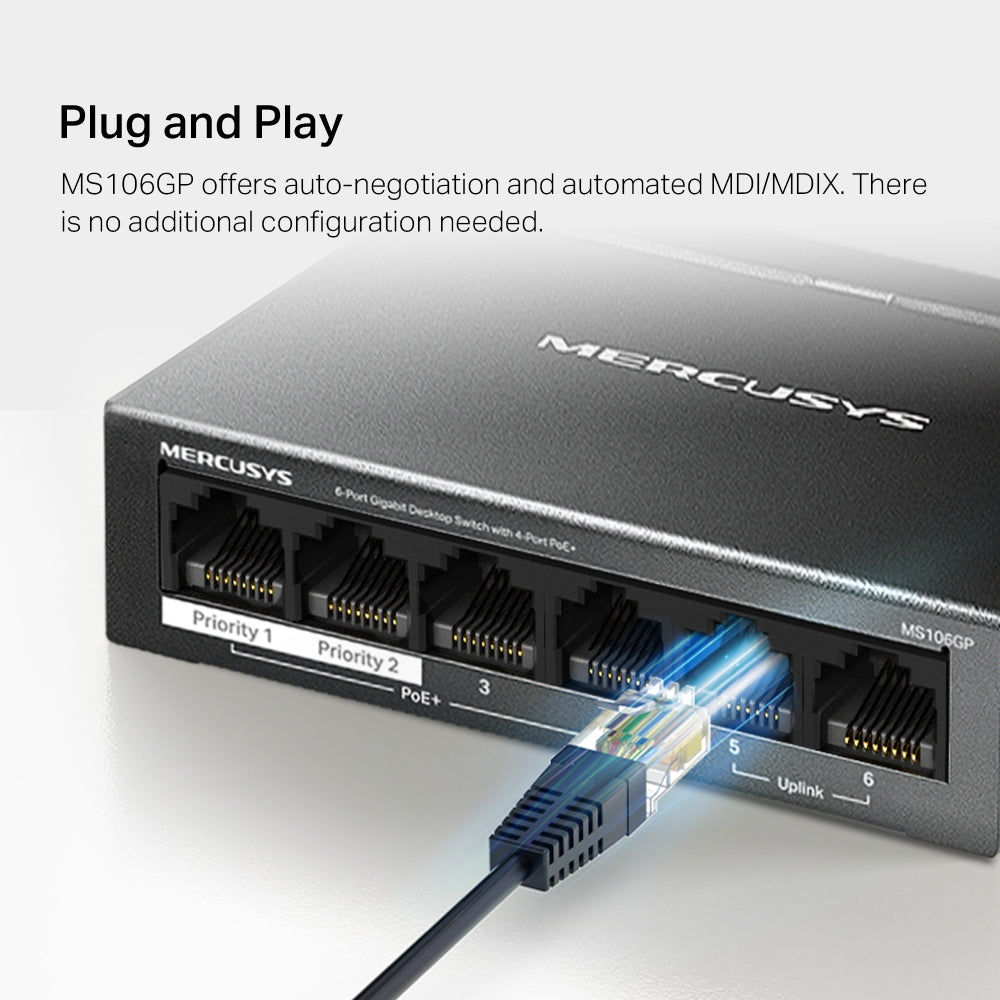

• Plug and Play: Simple to use, saving time and effort
• Durable Metal Casing: Allows for efficient heat dissipation and long network life

SPECIFICATI0NS

Hardware

Standards and Protocols

IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x,
IEEE 802.3af, IEEE 802.3at

PoE Ports

PoE Standard: compatible with 802.3af/at PDs
PoE Port 1–4, up to 30 W per port

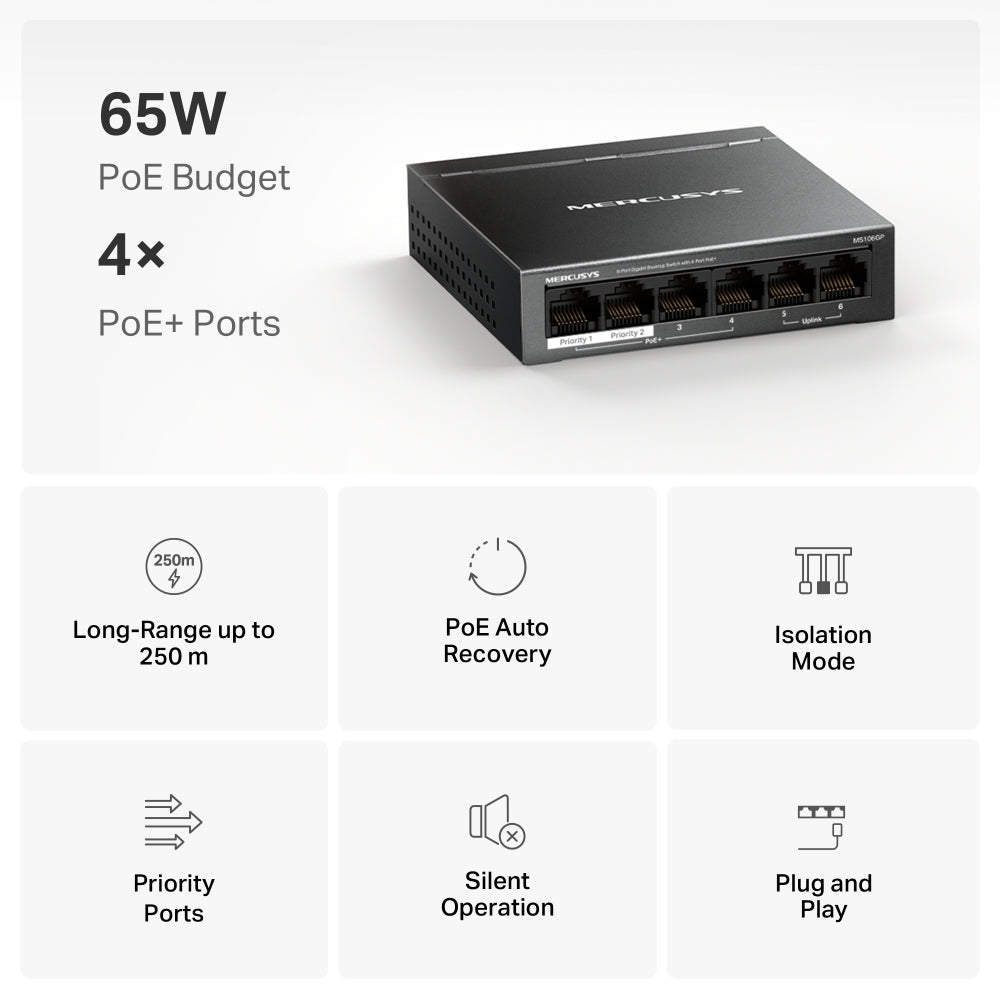

PoE Power Budget 65 W*

Dimensions : 3.9 × 3.9 × 1.0 in (99.8 × 98 × 25mm)

Interfaces : 6× 10/100/1000 Mbps PoE+ RJ45 Ports

Transmission Medium

10BASE-T: 2-pair UTP/STP of Cat. 3 or above (≤100 m)
100BASE-TX: 2-pair UTP/STP of Cat. 5 or above (≤100 m)
1000BASE-T: 4-pair UTP/STP of Cat. 5e or above (≤100 m)

Fan Quantity : 0

Switching Capacity : 12 Gbps

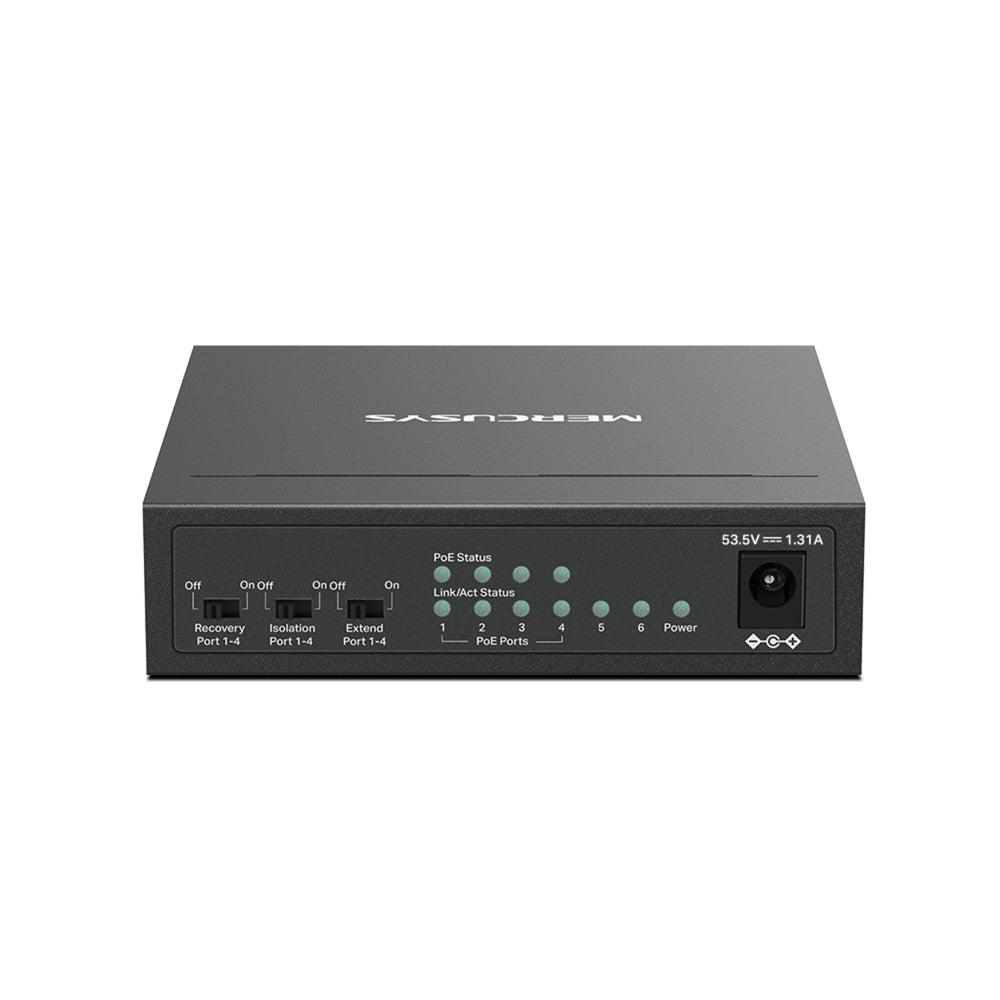

LED : Power, Link/Act, PoE Status

MAC Address Table : 2K, Auto-learning, Auto-aging

Max Power Consumption : 69.64 W (110V/60 Hz @ 25 °C, with 65 W PD connected)

Max Heat Dissipation

237.47 BTU/hr (110V/60 Hz @ 25 °C, with 65 W PD connected)
237.13 BTU/hr (220V/50 Hz @ 25 °C, with 65 W PD connected)

Others

Certifications : CE, RoHS

Environment

Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
Operating Humidity: 10% to 90% RH, non-condensing
Storage Humidity: 5% to 90% RH, non-condensing
