• Full Gigabit Ports: 16× 10/100/1000 Mbps Auto-Negotiation RJ45 port supporting Auto-MDI/MDIX
• Plug and Play: Simple to use and saves time and effort
• Isolation Mode: Isolation Mode allows one-click client traffic separation for higher security and performance
• Loop Prevention: Monitor and address loop-related issues within your network structure to prevent disruptions caused by looping
• Durable Metal Casing: Allows for efficient heat dissipation and long network life

What This Product Does

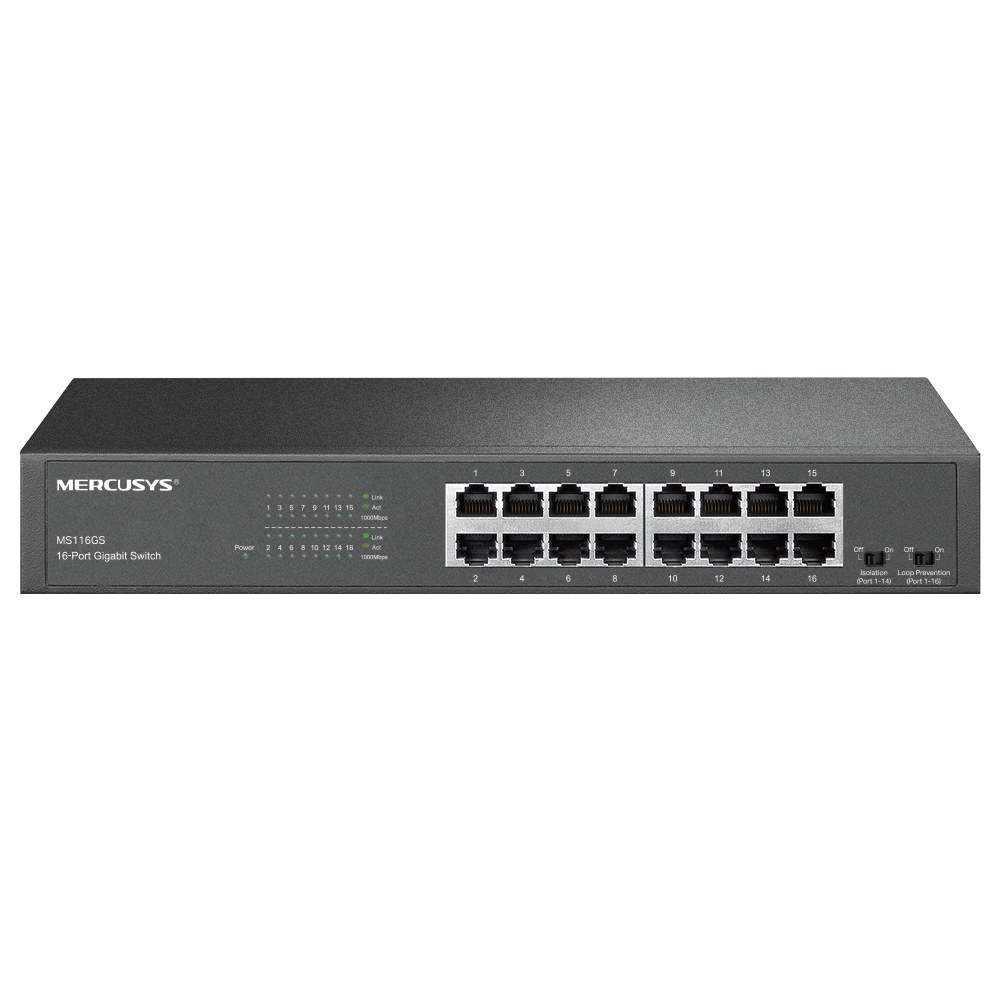

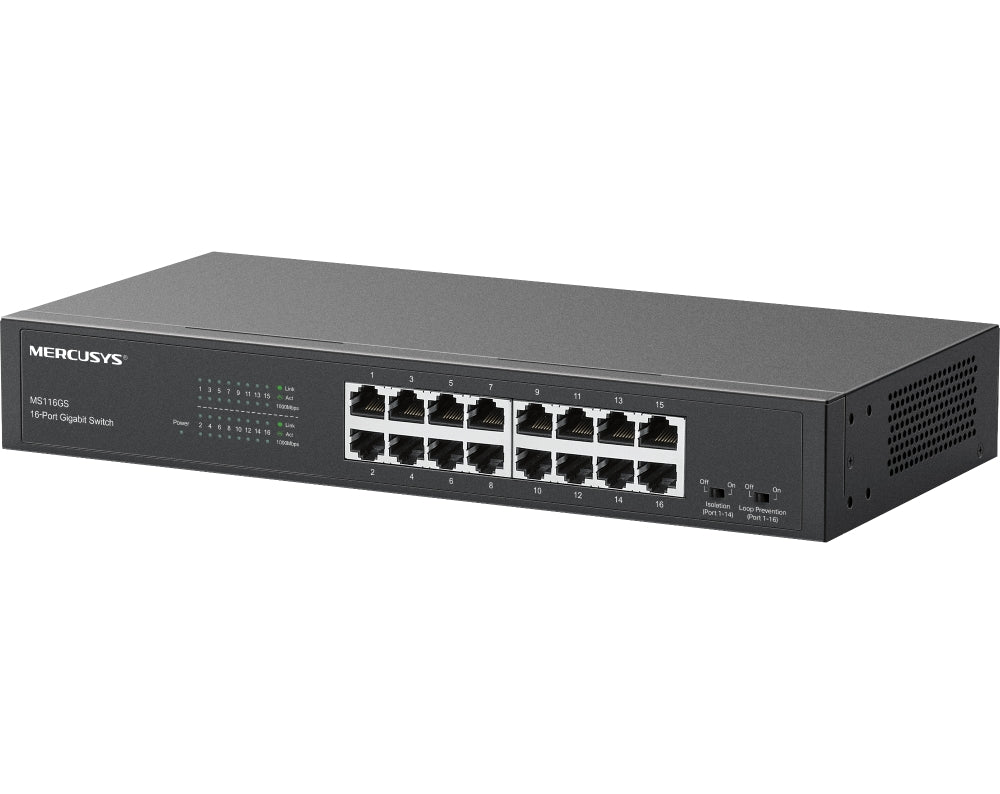

The MS116GS Gigabit Ethernet Switch provides a low-cost and easy-to-use option to expand your wired network with sixteen 10/100/1000 Mbps Ethernet ports—10 times faster than regular 10/100 Mbps Ethernet ports. MS116GS offers flexible connectivity and is fully compatible with 4K UHD TVs, computers, printers, IP cameras, game consoles, and more. It is ideal for homes, small offices, and dormitories.



Software

Transfer Method



Store and Forward



Advanced Features



802.3X Flow Control, 802.1P/DSCP QoS, Loop Prevention, Isolation

Hardware

Dimensions (W X D X H)



294*140*44mm (11.6*5.5*1.7 in)



Interfaces



16×10/100/1000Mbps RJ45 Ports, Auto-Negotiation, Auto MDI/MDIX



External Power Supply



100-240VAC, 50/60Hz



Standards and Protocols



IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p



Switching Capacity



32 Gbps



LED



Power, Link/Act, 1000Mbps



Mac Address Table



8K

Others

Certifications



CE, RoHS



Environment



Operating Temperature: 0˚C to 40˚C (32˚F to 104˚F)
Storage Temperature: -40ËšC to 70ËšC (-40ËšF to 158ËšF)
Operating Humidity: 10% to 90% non-condensing
Storage Humidity: 5% to 90% non-condensing
