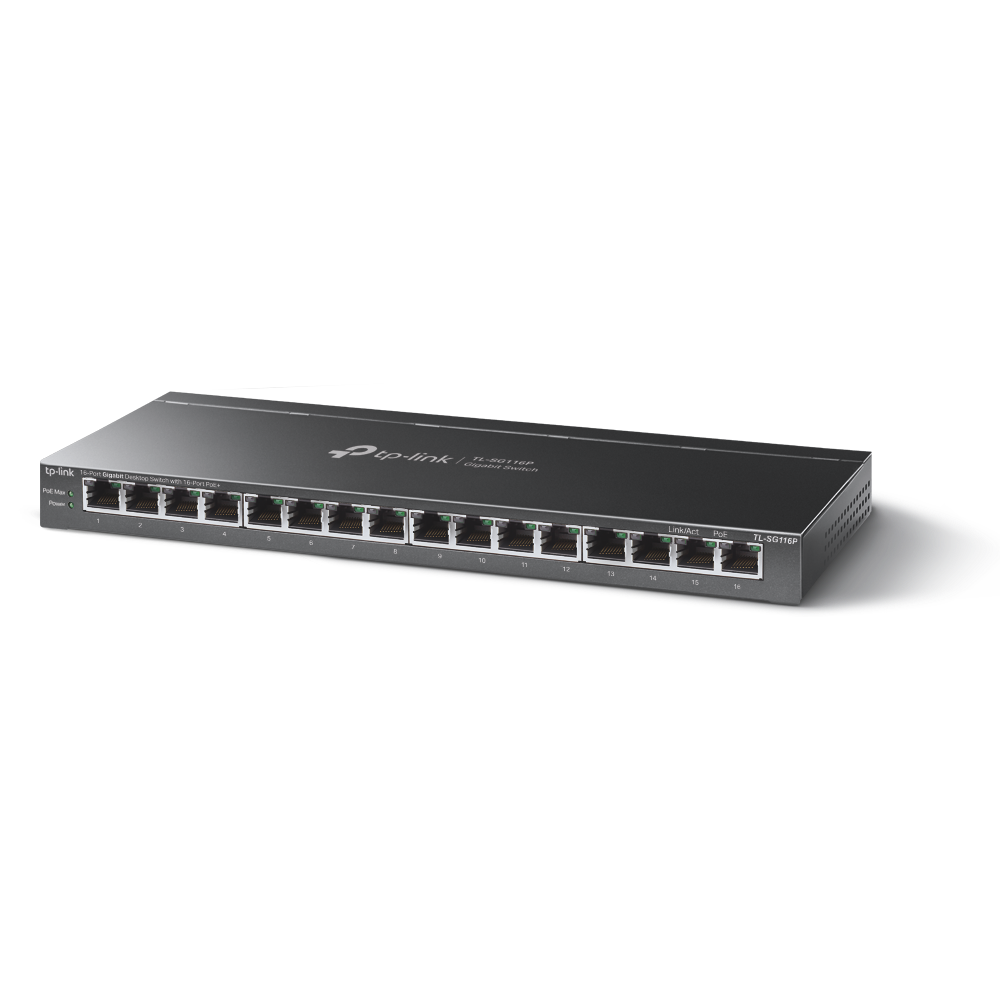

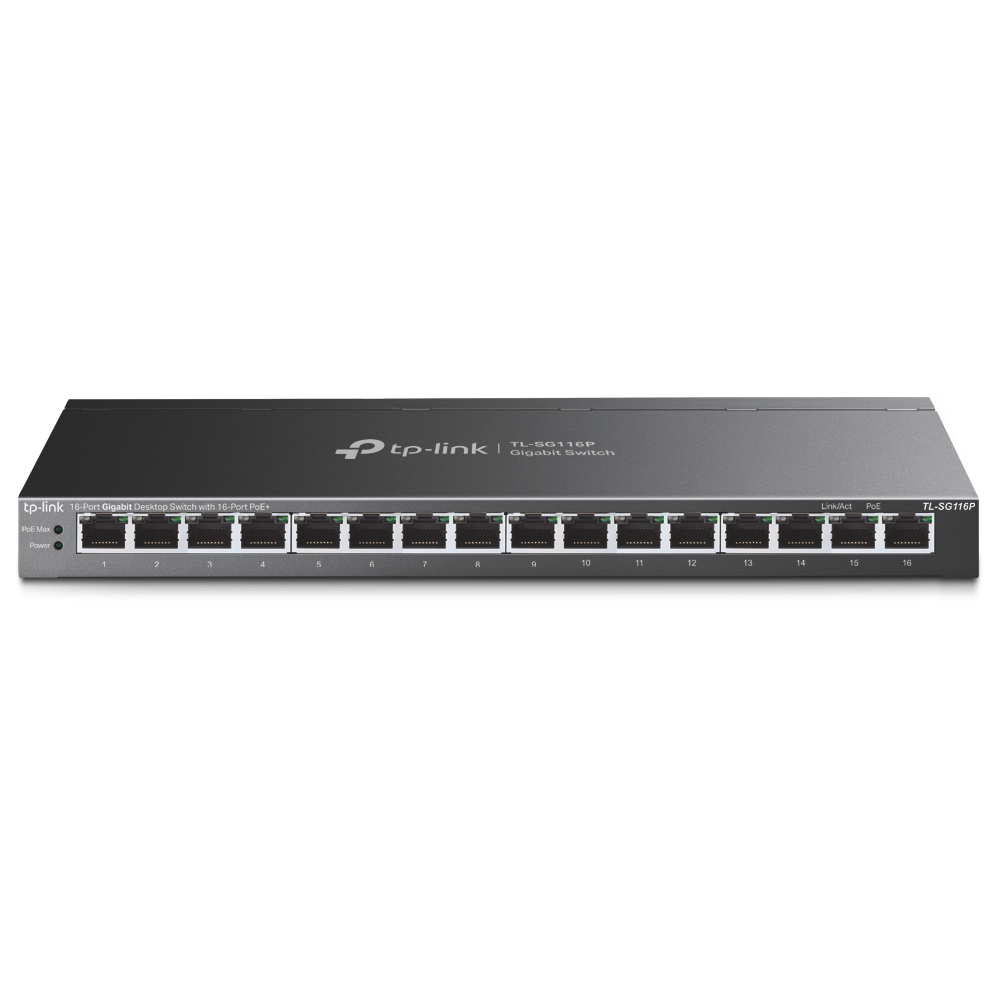

TP-Link 16-Port Gigabit Desktop Switch with 16-Port PoE+

Roll over image to zoom in Click on image to zoom

TP-Link 16-Port Gigabit Desktop Switch with 16-Port PoE+

Name: TP-Link 16-Port Gigabit Desktop Switch with 16-Port PoE+
Brand: TP-LINK
SKU: TL-SG116P
Price: 219.0 NZD
Availability: OutOfStock

TP-LINKSKU: TL-SG116P

Description

16-Port Gigabit Desktop Switch with 16-Port PoE+

16× 10/100/1000 Mbps RJ45 ports
With 16 PoE+ ports, transfers data and power on one single cable
Compliance with IEEE 802.3af/at PoE+, the switch supports PoE Power up to 30 W for each PoE port
Supports PoE Power up to 120 W for all PoE ports^*
Up to 250 m data and power transmission range under Extend Mode**
Priority Mode ensures high priority of ports 1–4 to guarantee the quality of the sensitive applications
Isolation Mode allows one-click client traffic separation for higher security and performance
Automatically reboots your dropped or unresponsive PoE-powered devices with PoE Auto Recovery
Plug and play with no configuration required

Learn more about TP-Link PoE technology >

HARDWARE FEATURES
Interface	• 16× 10/100/1000Mbps RJ45 Ports • AUTO Negotiation • AUTO MDI/MDIX
Network Media	• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity	Fanless
External Power Supply	External Power Adapter (Output: 53.5 VDC / 2.43 A)
Packet Forwarding Rate	23.8 Mpps
PoE Ports (RJ45)	• Standard: 802.3 af/at compliant • PoE Ports: Ports 1–16 • Power Supply: 120 W
Mac Address Table	8K, Auto-learning, Auto-aging
Switching Capacity	32 Gbps
Dimensions ( W x D x H )	11.3 × 4.4 × 1.0 in (286 × 111.7 × 25.4 mm)
Max Power Consumption	• 11.72 W (220 V / 50 Hz no PD connected) / 11.56 W (110 V / 60 Hz no PD connected) • 142.51 W (220 V / 50 Hz with 120 W* PD connected) / 144.28 W (110 V / 60 Hz with 120 W* PD connected)
Max Heat Dissipation	• 39.85 BTU/h (220 V / 50 Hz no PD connected) / 39.31 BTU/h (110 V / 60 Hz no PD connected) • 484.53 BTU/h (220 V / 50 Hz with 120 W* PD connected) / 490.55 BTU/h (110 V / 60 Hz with 120 W* PD connected)

SOFTWARE FEATURES
Advanced Features	• Compatible With IEEE 802.3af/at Compliant PDs • Extend Mode Button (Ports 1–4, Up to 250 m PoE power supply and data transmission) • Priority Mode Button (Ports 1–4) • Isolation Mode Button (Ports 1–7 / 8-14) • PoE Auto Recovery (Ports 1-16) • Mac Address Auto-Learning And Auto-Aging • IEEE 802.3x Flow Control • 802.1p/DSCP QoS • IGMP Snooping
Transfer Method	Store-And-Forward

OTHERS
Certification	FCC, CE, RoHS
Package Contents	• TL-SG116P • Power Adapter • Installation Guide
Environment	• Operating Temperature: 0–40 ℃ (32–104 ℉); • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing

For additional version information, please go to the support page.

^*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.

**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.
