What This Product Does

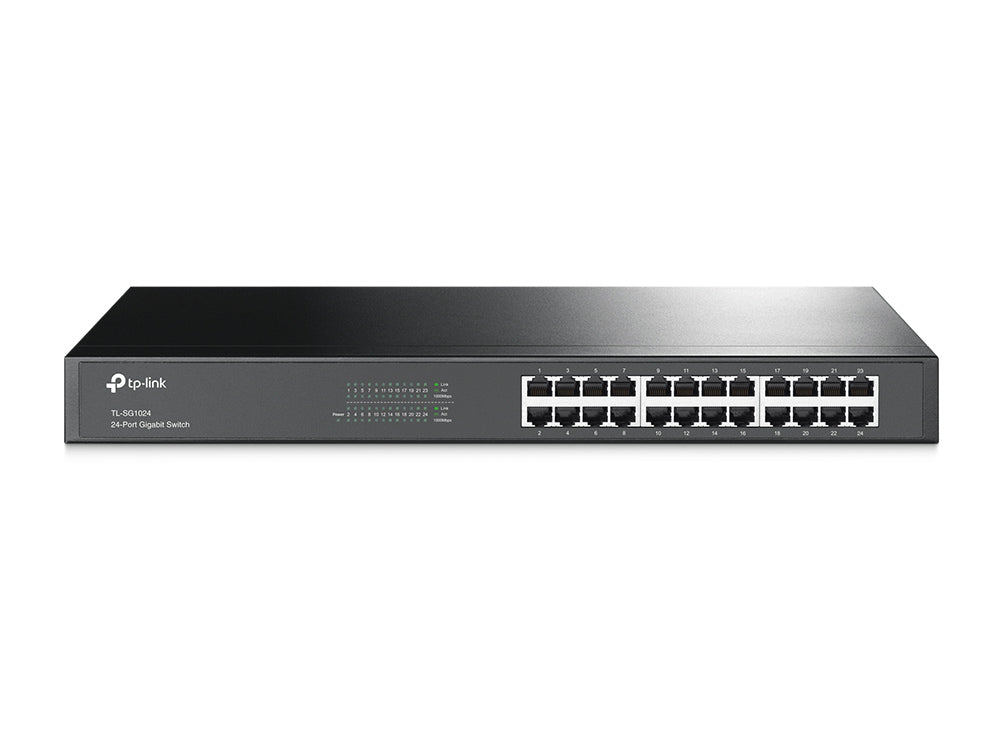

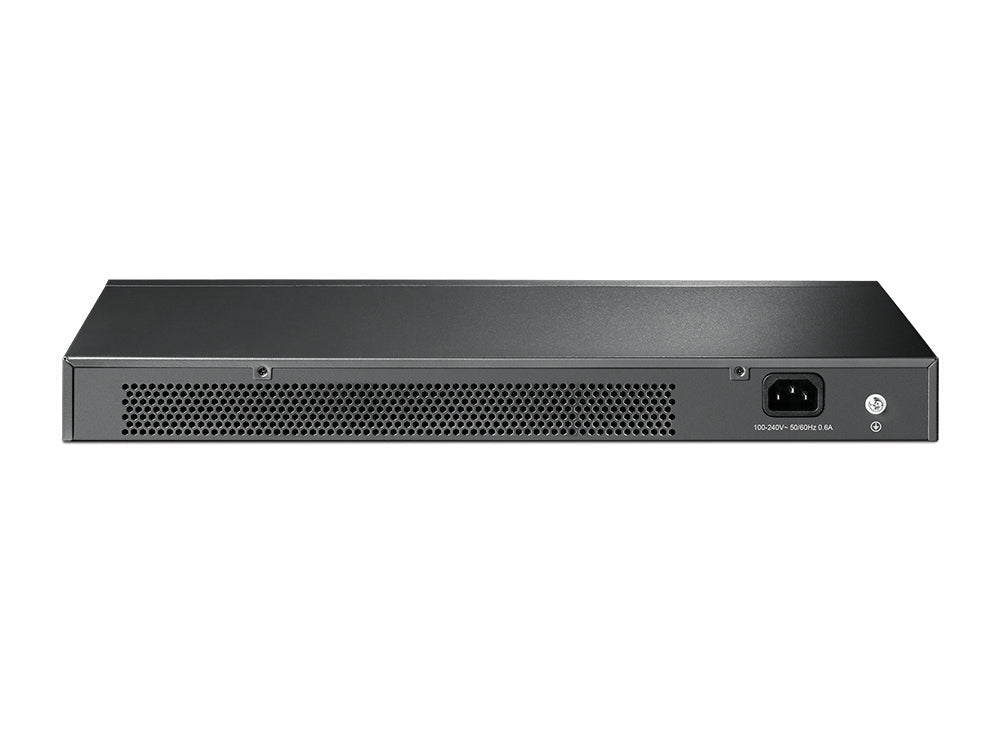

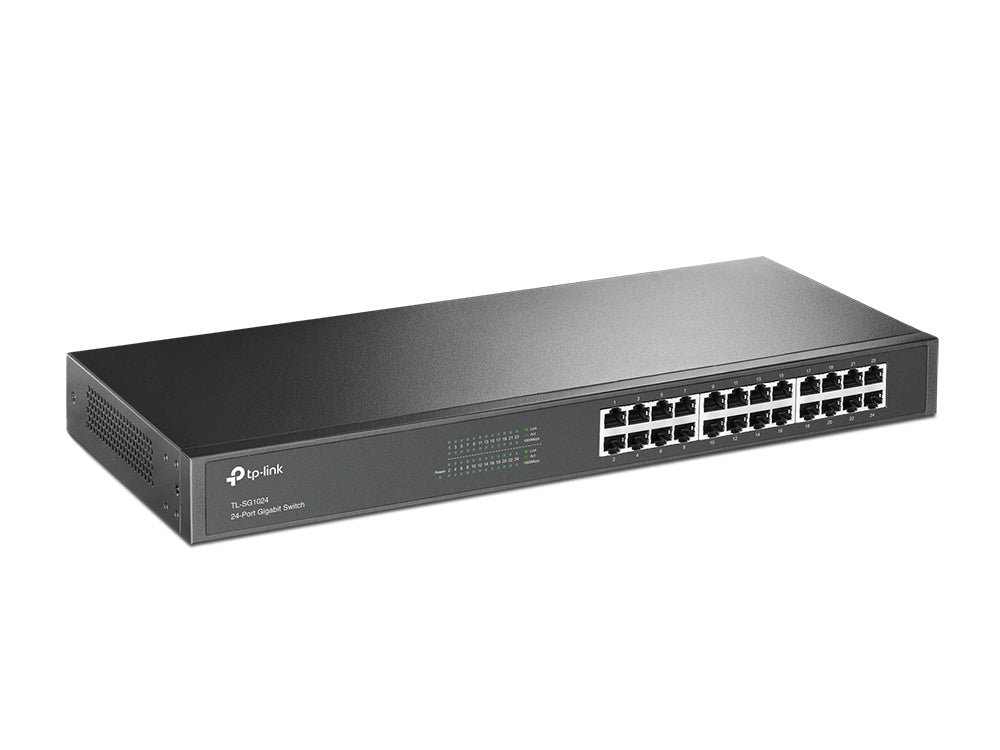

The TL-SG1024 Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1024 can save power consumption, making it an eco-friendly solution for your business network.
TP-Link Green Technology
This new generation TL-SG1024 Gigabit Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status to limit the carbon footprint of your network. It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials. Besides, most of the packaging material can be recycled.
High Performance
All 24 ports are Gigabit RJ-45 ports which can provide large file transferring and also be compatible with 10Mbps and 100Mbps Ethernet devices. Featuring non-blocking switching architecture, TL-SG1024 forwards and filters packets at full wire-speed for maximum throughput. With 10KB Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make The TL-SG1024 work reliably. It’s a perfect choice to update your network to Gigabit while protecting your previous investment properly.
Ease of Use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.
| HARDWARE FEATURES |
| Standards and Protocols |
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x |
| Interface |
24 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) |
| Network Media |
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m) |
| Fan Quantity |
Fanless |
| Physical Security Lock |
No |
| Power Supply |
100-240VAC, 50/60Hz |
| Dimensions ( W x D x H ) |
17.3*7.1*1.7 in. (440*180*44 mm) |
| Mounting |
Rack Mountable |
| Max Power Consumption |
13.62W |
| Max Heat Dissipation |
46.44BTU/h |
| PERFORMANCE |
| Switching Capacity |
48Gbps |
| Packet Forwarding Rate |
35.7Mpps |
| MAC Address Table |
8K |
| Jumbo Frame |
10KB |
| QoS |
802.1p/DSCP QoS*
*Only for V11 and later version |
| Green Technology |
Yes |
| Transfer Method |
Store-and-Forward |
| OTHERS |
| Certification |
FCC, CE, RoHS |
| Package Contents |
24-Port Gigabit Rackmount Switch
Power Cord
Installation Guide
Rackmount Kits
Rubber Feet |
| Environment |
Operating Temperature: 0℃~40℃ (32℉~104℉);
Storage Temperature: -40℃~70℃ (-40℉~158℉);
Operating Humidity: 10%~90% non-condensing;
Storage Humidity: 5%~90% non-condensing |
