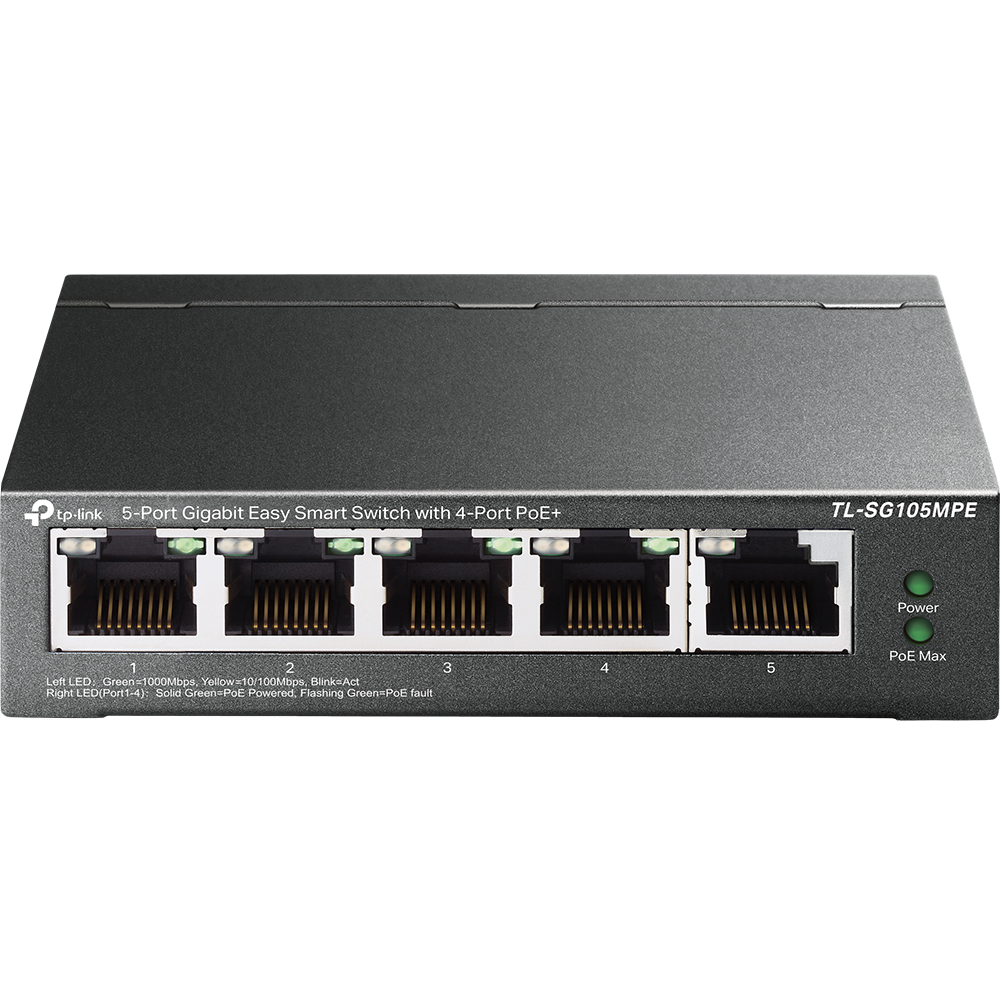

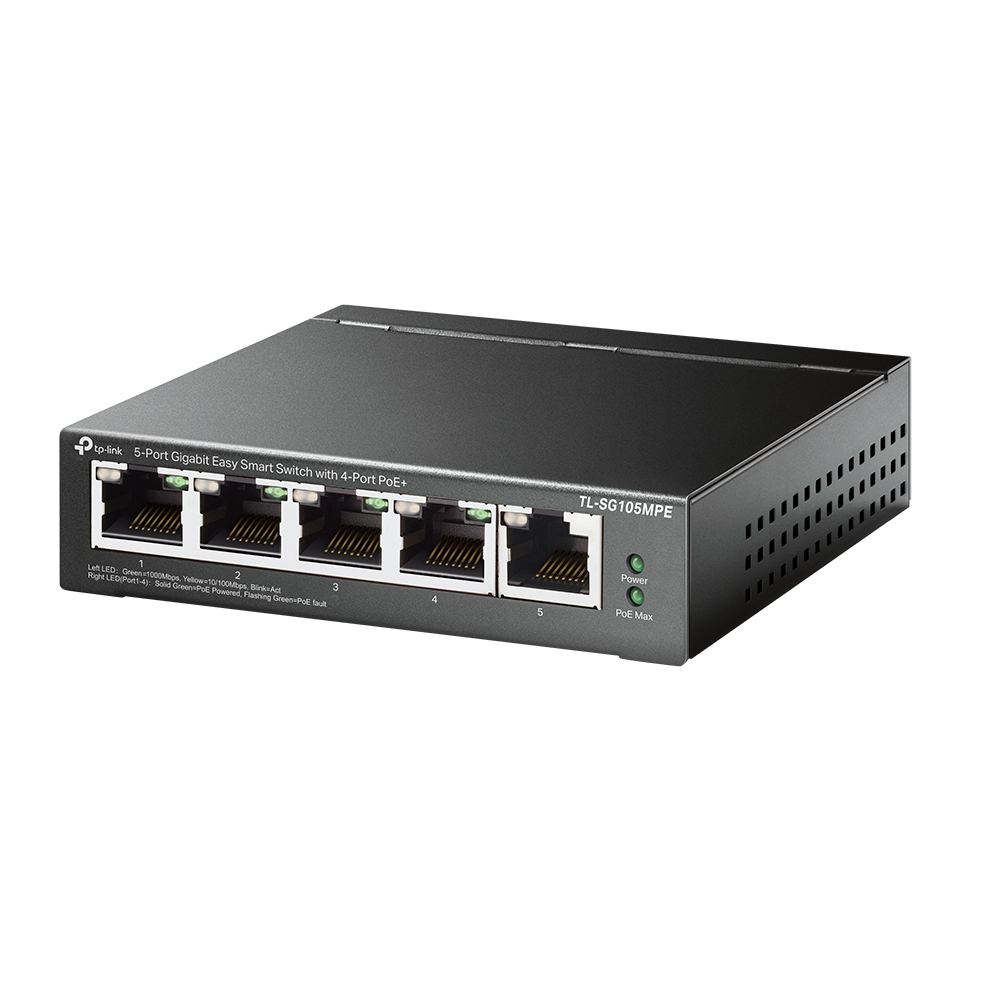

TP-Link 5-Port Gigabit Easy Smart Switch with 4-Port PoE+

Roll over image to zoom in Click on image to zoom

TP-Link 5-Port Gigabit Easy Smart Switch with 4-Port PoE+

Name: TP-Link 5-Port Gigabit Easy Smart Switch with 4-Port PoE+
Brand: TP-LINK
SKU: TL-SG105MPE
Price: 139.0 NZD
Availability: InStock

TP-LINKSKU: TL-SG105MPE

Description

TL-SG105MPE

5-Port Gigabit Easy Smart Switch
with 4-Port PoE+

Five 10/100/1000Mbps RJ45 ports
Equipped with four 802.3af/at PoE+ ports with up to 30W for each port, data, and power can be transferred on one single cable
Supports PoE power up to 120 W for all PoE ports*
Provides network monitoring, traffic prioritisation, VLAN features, and PoE Auto Recovery
Simple network set-up on top of plug-and-play connectivity
Web-based user interface and Easy Smart Configuration Utility simplify configuration
Fanless design lowers energy consumption and eliminates operating noise

HARDWARE FEATURES
Standards and Protocols	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at
Interface	Five 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX
Network Media	10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity	Fanless
Power Supply	External Power Adapter (Output: 53.5 VDC / 2.43 A)
PoE Ports (RJ45)	Standard: 802.3 af/at compliant PoE Ports: Port 1- Port 4 PoE Power Budget: 120 W
Dimensions ( W x D x H )	3.9 × 3.9 × 1.0 in (99.8 × 98 × 25 mm)
Max Power Consumption	4.34 W (220 V/50 Hz with no PD connected) 137.01 W (110 V/50 Hz with 120 W PD connected)
Max Heat Dissipation	14.8 BTU/h (with no PD connected) 467.17 BTU/h (with 120 W PD connected)

PERFORMANCE
Switching Capacity	10 Gbps
Packet Forwarding Rate	7.44 Mpps
MAC Address Table	2 K
Packet Buffer Memory	1 Mb
Jumbo Frame	16 KB

SOFTWARE FEATURES
Quality of Service	Support Port-Based/802.1p/DSCP priority Support 4 priority queues Rate Limit Storm Control
L2 Features	IGMP Snooping V1/V2/V3 Static Link Aggregation Port Mirroring Cable Diagnostics Loop Prevention PoE Auto Recovery Extend Mode
VLAN	Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN
Management	Web-based GUI Easy Smart Configuration Utility
Transmission Method	Store-And-Forward

OTHERS
Certification	FCC, CE, RoHS
Package Contents	TL-SG105MPE Power Adapter Installation Guide Rubber Feet
System Requirements	Microsoft® Windows® for running Utility
Environment	Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90%RH non-condensing Storage Humidity: 5%~95%RH non-condensing

For additional version information, please go to the support page.

^*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.
