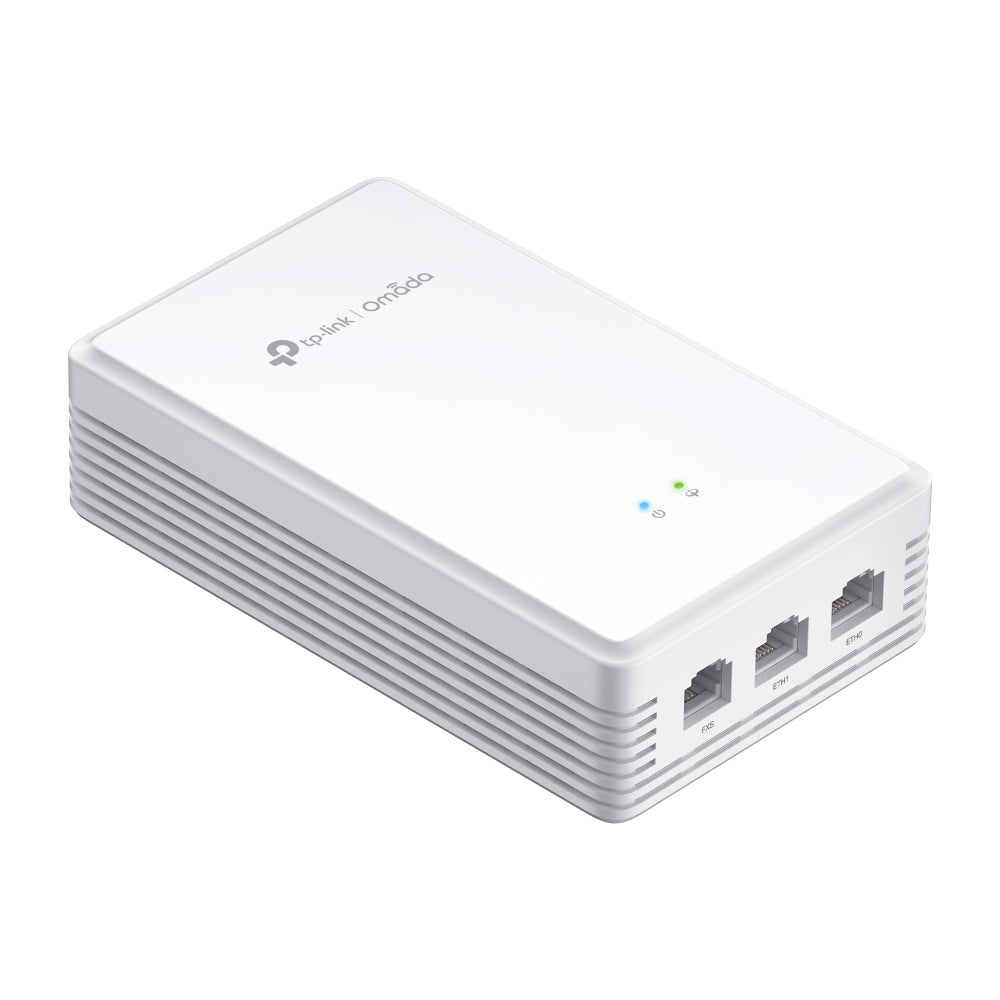

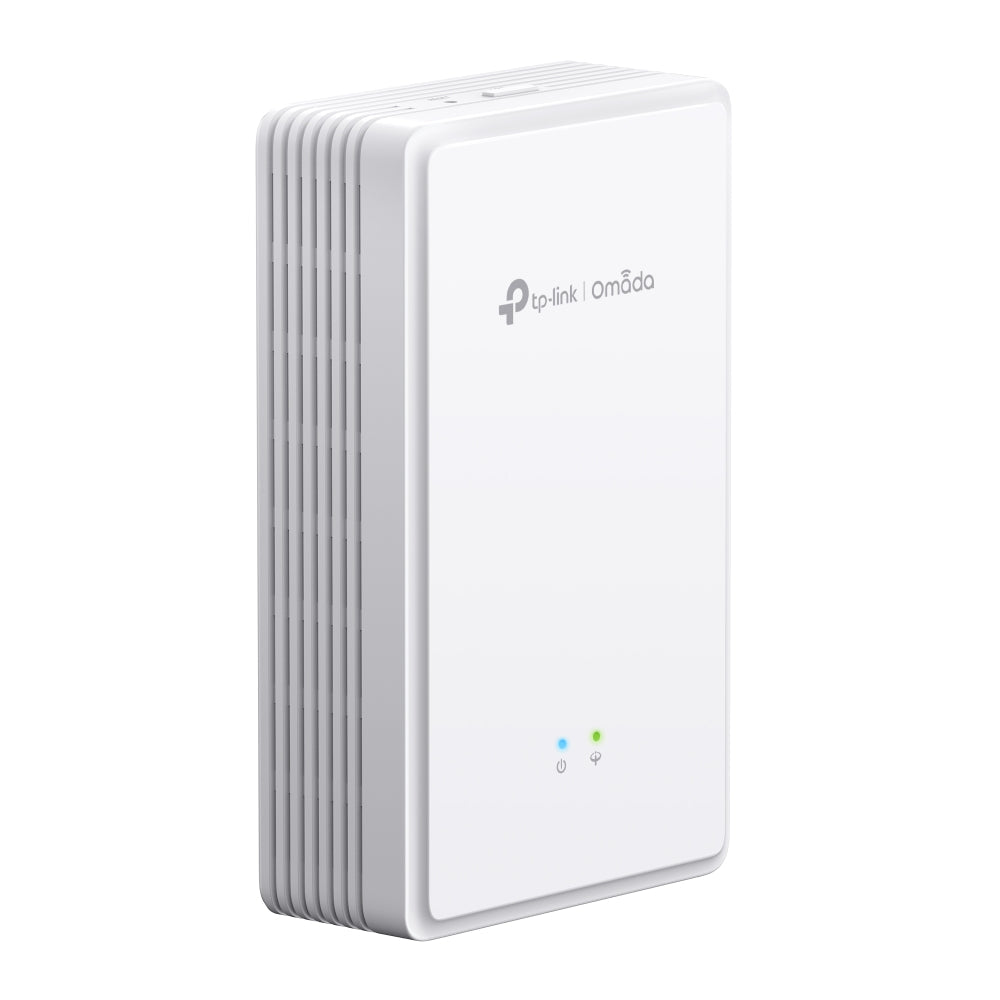

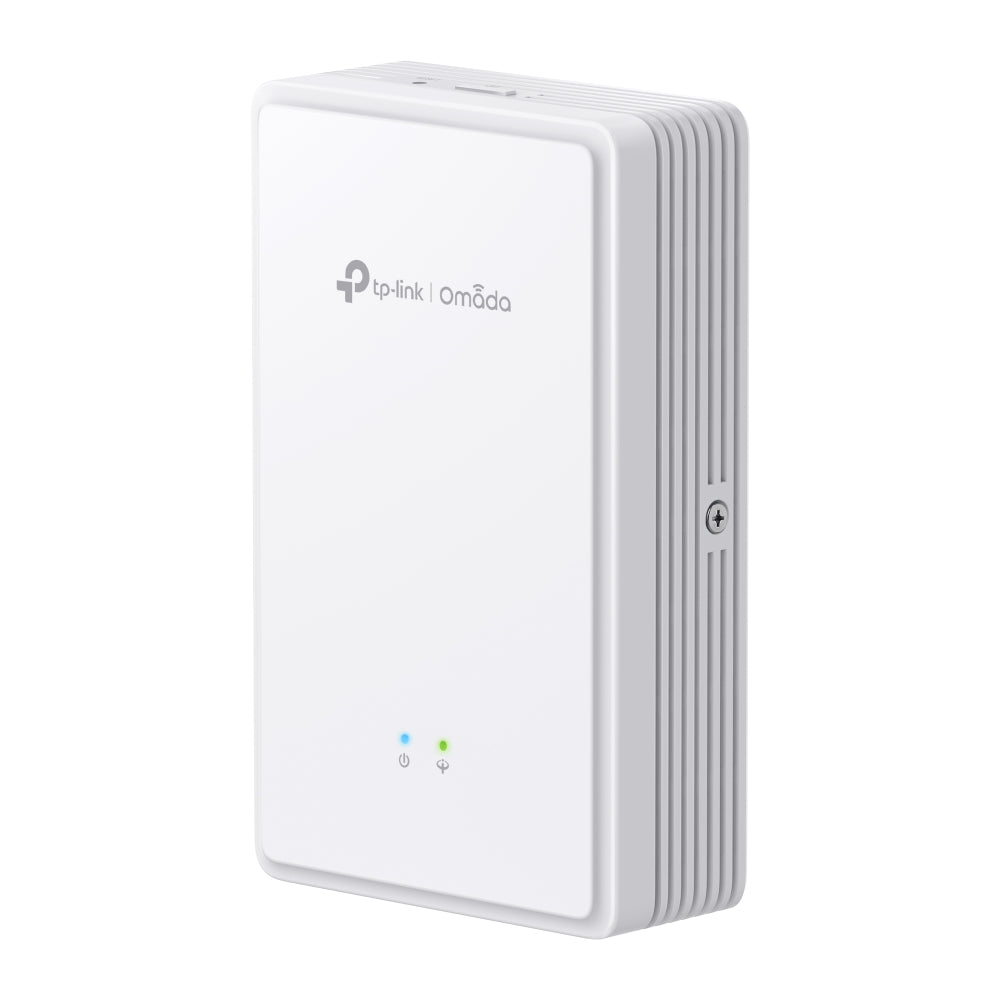

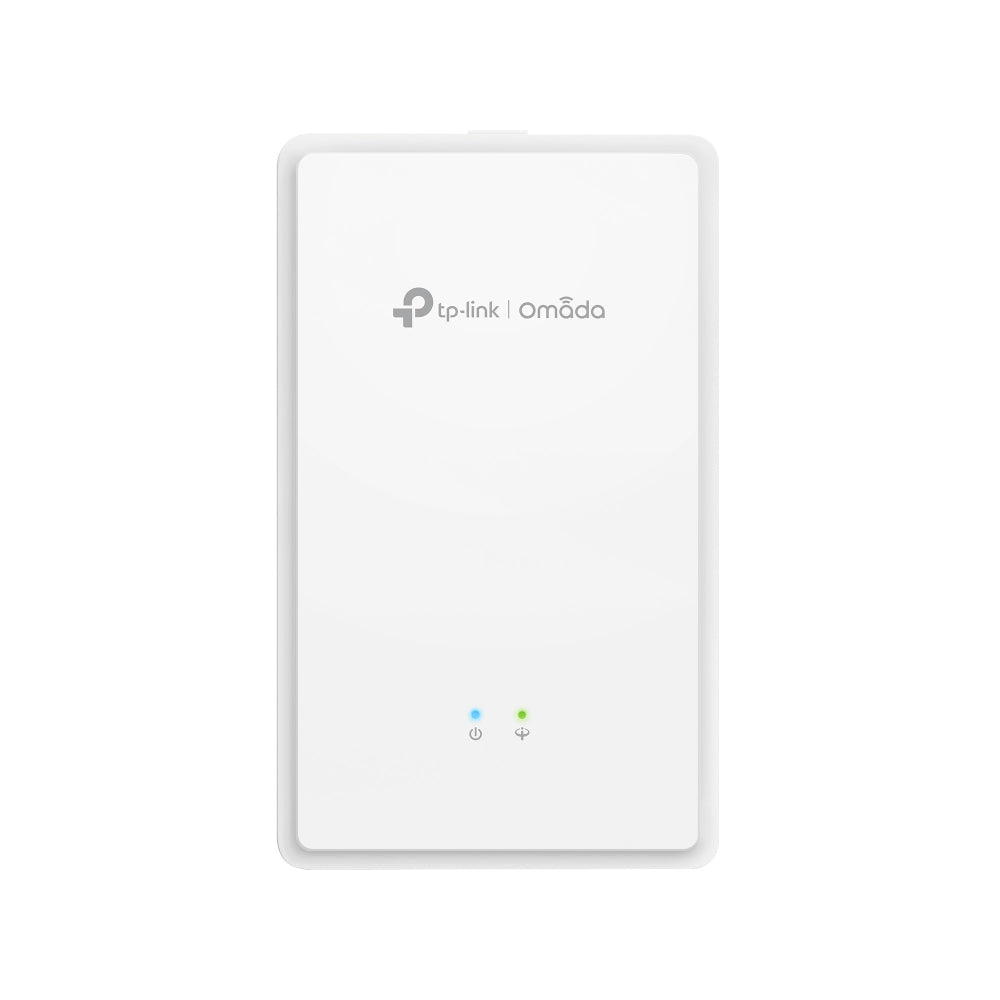

TP LINK EAP615GP-Wall Omada AX1800 Wi-Fi 6 Wall Plate GPON Access Point

Roll over image to zoom in Click on image to zoom

TP LINK EAP615GP-Wall Omada AX1800 Wi-Fi 6 Wall Plate GPON Access Point

Name: TP LINK EAP615GP-Wall Omada AX1800 Wi-Fi 6 Wall Plate GPON Access Point
Brand: TP-Link
SKU: TL-EAP615GP-WALL
Price: 229.0 NZD
Availability: OutOfStock

TP-LinkSKU: TL-EAP615GP-WALL

Description

EAP615GP-Wall

Omada AX1800 Wi-Fi 6 Wall Plate GPON Access Point

Seamless 1.8 Gbps Wi-Fi 6 Speeds: 1201 Mbps on 5 GHz & 574 Mbps on 2.4 GHz^†
1× GPON Port for High-Speed and Ultra-Range Access
Ultra-Broadband Wi-Fi 6: MU-MIMO, Seamless Roaming^§
One Fiber for Multiple Services: Wired, Wireless, Voice, VoIP, Data, and HD Video Services
VoIP Calls: Support multiple VolP accounts and various call features, exceeding traditional landlines
Easy Use: One-Click Pairing and Automatic Adoption
Smart O&M: PPSK^△ and Multiple Portals^§
Centralised Management: Integrates with the Unified Optical Solution
Wall-Mounted, AC Powered

HARDWARE FEATURES

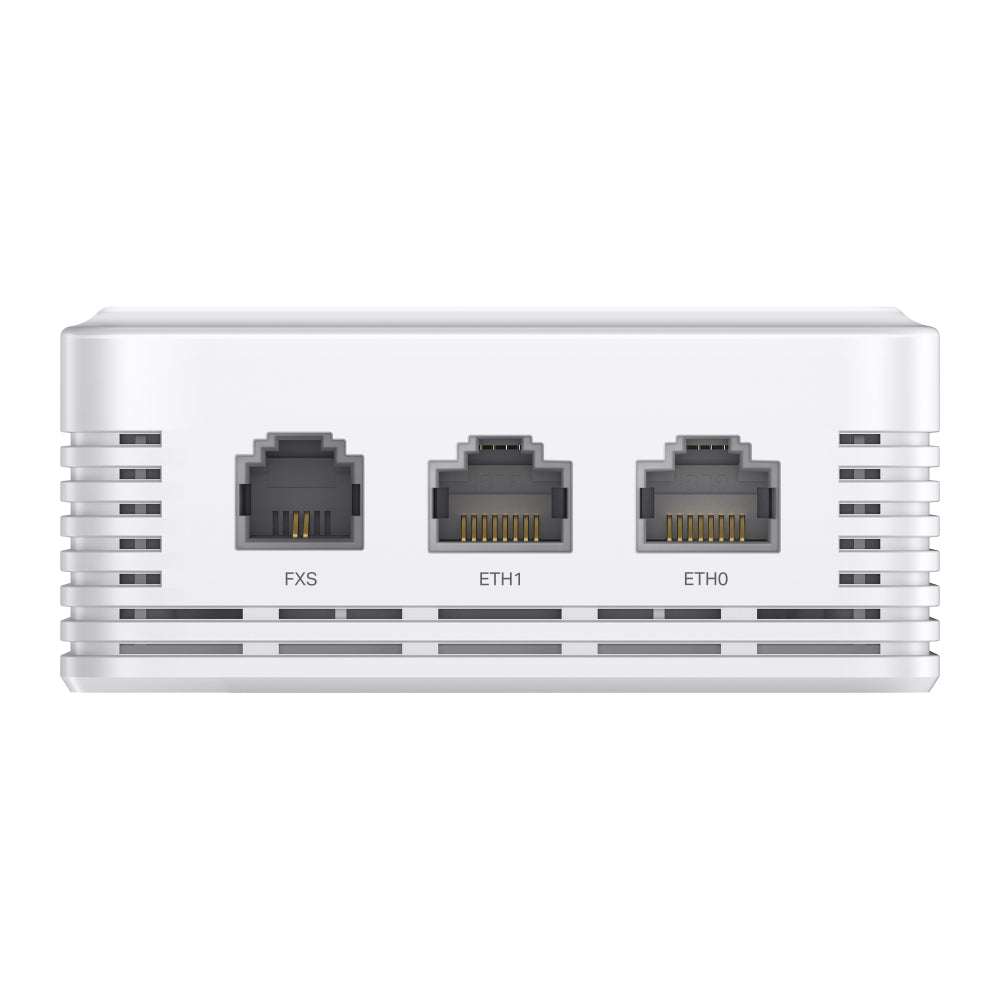

Interface	• 1x GPON Port • 1x FXS Port • 2x Gigabit RJ45 Ports
GPON Interface	• Port Type: SC-APC • Standards and Protocols: ITU-984.x, G.988, Class B+ • Data Rate: 2.488 Gbps (Downstream); 1.244 Gbps (Upstream) • Fiber Type: 9/125 um Single mode • Max. Cable Length: 20 km
Button	• Reset • LED
Power Supply	100–240V~ 50/60Hz, 0.5A
Max. Power Consumption	12.2W
Weight	320g
Dimensions ( W x D x H )	5.6 × 3.4 × 1.5 in (143 × 86 × 37.6 mm)
Antenna	Internal Omni • 2.4 GHz: 2× 4 dBi • 5 GHz: 2× 6.5 dBi

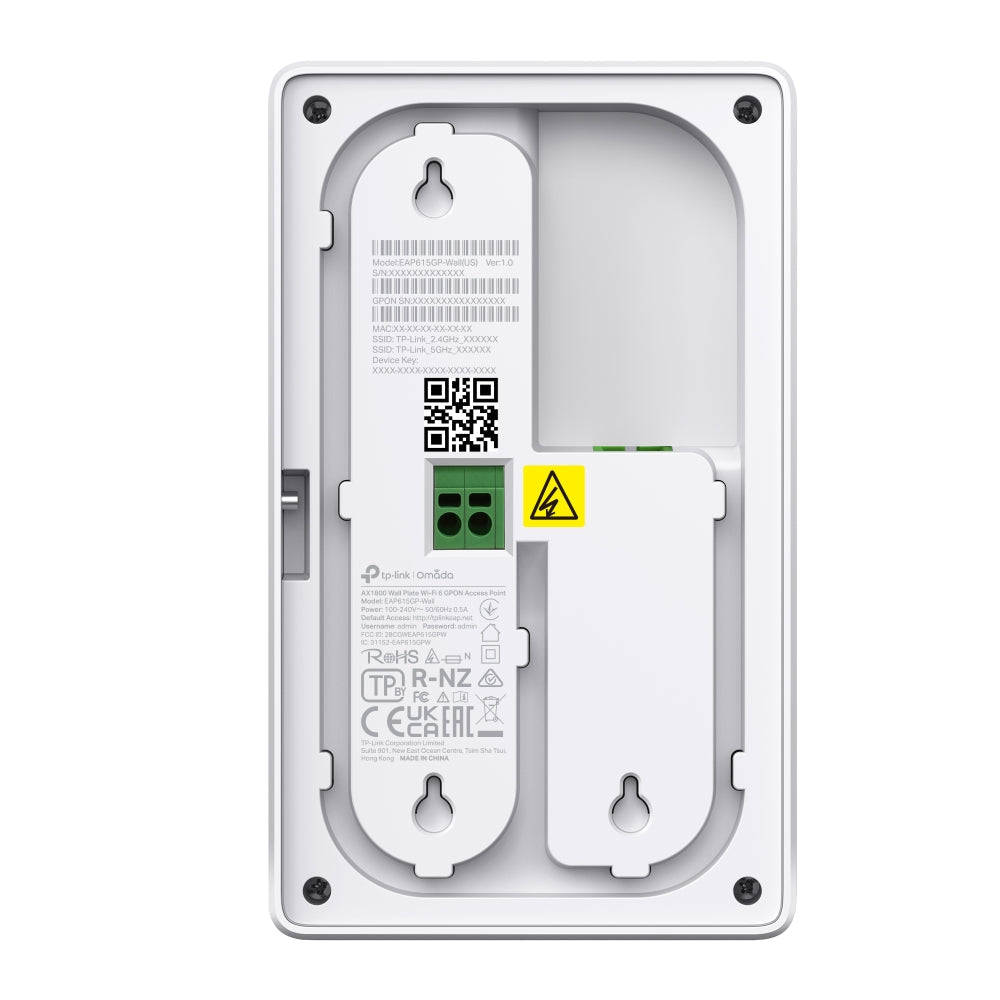

Mounting	Wall Mounting (Kits included)

Management Features
Omada App	Yes
Centralized Management	• Omada Hardware Controller (OC300, OC200) • Omada Software Controller • Omada Cloud-Based Controller
Cloud Access	Yes. Require the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Email Alerts	Yes
LED ON/OFF Control	Yes
Management MAC Access Control	Yes
SNMP	v1, v2c, v3
System Logging Local/Remote Syslog	System Log
SSH	Yes
Web-based Management	Yes
Zero-Touch Provisioning	Yes. Require the use of Omada Cloud-Based Controller.

WIRELESS FEATURES
Coverage	50㎡(600ft²)^**
Concurrent Clients	120+^*
Wireless Standards	IEEE 802.11 a/b/g/n/ac/ax
Frequency	2.4 GHz and 5 GHz
Signal Rate	• 5 GHz: 1201 Mbps^† • 2.4 GHz: 574 Mbps
Wireless Functions	• 2×2 (2.4G & 5G) MU-MIMO^‡ • HE80 (80 MHz Bandwidth)^‡ • OFDMA^‡ • Seamless Roaming ^§ • Multiple SSIDs (16 SSIDs, 8 on each band) • Enable/Disable SSID Broadcast • Enable/Disable Wireless Radio • Guest Network • Automatic Channel Assignment • Beamforming • Rate Limit • Band Steering • Load Balance • Airtime Fairness • Transmit Power Control (Adjust Transmit Power on dBm) • QoS (WMM) • RADIUS Accounting • MAC Authentication • Reboot Schedule • Wireless Schedule and Statistics • Static IP/Dynamic IP
Wireless Security	• Captive Portal Authentication^§ • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • VLAN • Rogue AP Detection • 802.1X Support • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power	• CE: <20 dBm(2.4 GHz, EIRP) <23 dBm(5 GHz, band1 & band2, EIRP) <24 dBm(5 GHz, band3, EIRP) • FCC: <21 dBm (2.4 GHz) <21 dBm (5 GHz)

OTHERS
Certification	CE, FCC, RoHS, IC
Package Content	• EAP615GP-Wall • Wall Mounting Kit • Installation Guide
System Requirements	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Environment	• Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
