TP Link EAP725-WALL BE3600 Wall Plate Wi-Fi 7 Access Point

Roll over image to zoom in Click on image to zoom

TP Link EAP725-WALL BE3600 Wall Plate Wi-Fi 7 Access Point

Name: TP Link EAP725-WALL BE3600 Wall Plate Wi-Fi 7 Access Point
Brand: TP-Link
SKU: TL-EAP725-WALL
Price: 349.0 NZD
Availability: InStock

TP-LinkSKU: TL-EAP725-WALL

Description

BE3600 Wall Plate Wi-Fi 7 Access Point

Dual-Band Wi-Fi 7: 2882 Mbps on 5 GHz and 688 Mbps on 2.4 GHz^†
Versatile Ports with PoE Flexibility: 1× 2.5G PoE Input port, 1× 2.5G PoE pass-through port, and 2× Gigabit downlink ports.
Low Latency and Interference: Multi-Link Operation, Multi-RUs, and 4K-QAM ensure high performance for your network.^‡
Complete In-Room Wi-Fi Coverage: Guaranteed strong signals and corner-to-corner Wi-Fi coverage up to 750ft² (70 ㎡).^*
Flexible Deployment and Easy Setup: Supports 802.3at/bt PoE for flexible installation with Omada SDN for one-click setup.
Advanced Features: Supports centralized cloud management, Mesh, and Seamless Roaming.^△
More Connections: Supports 250+ concurrent connections

HARDWARE FEATURES

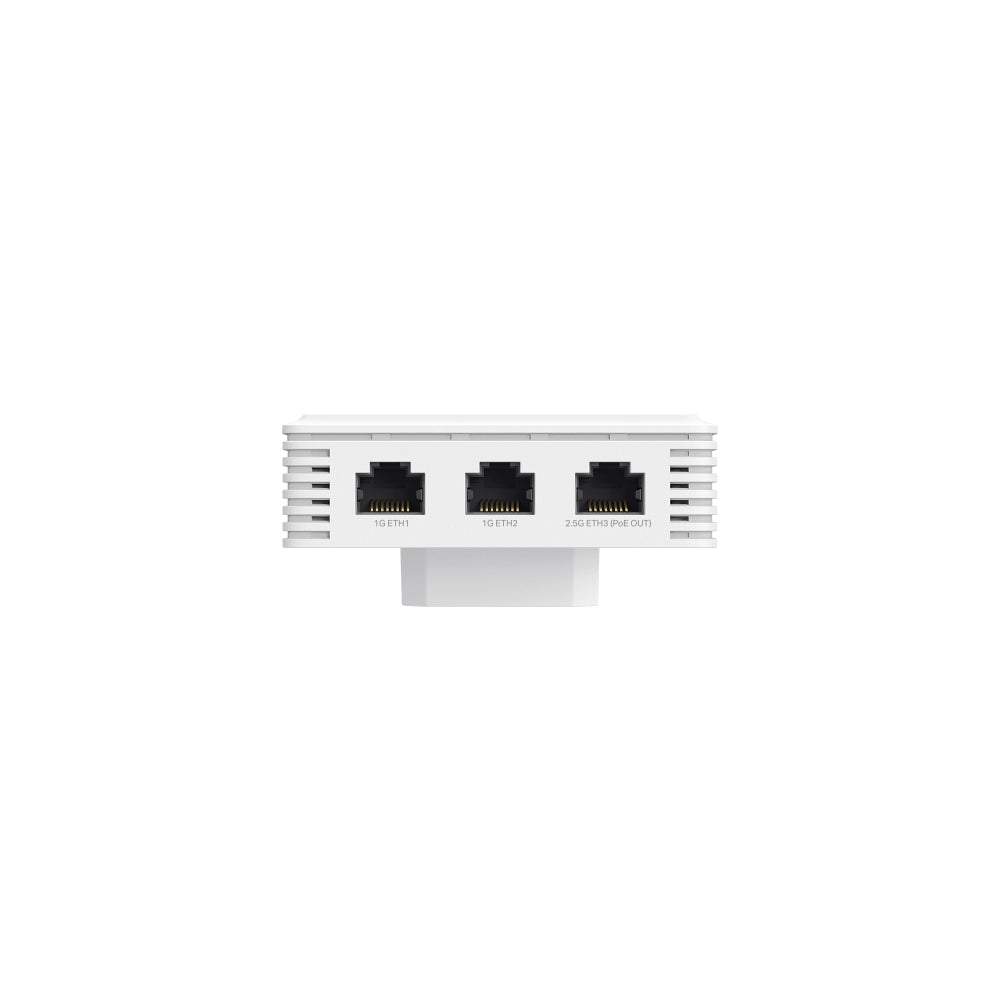

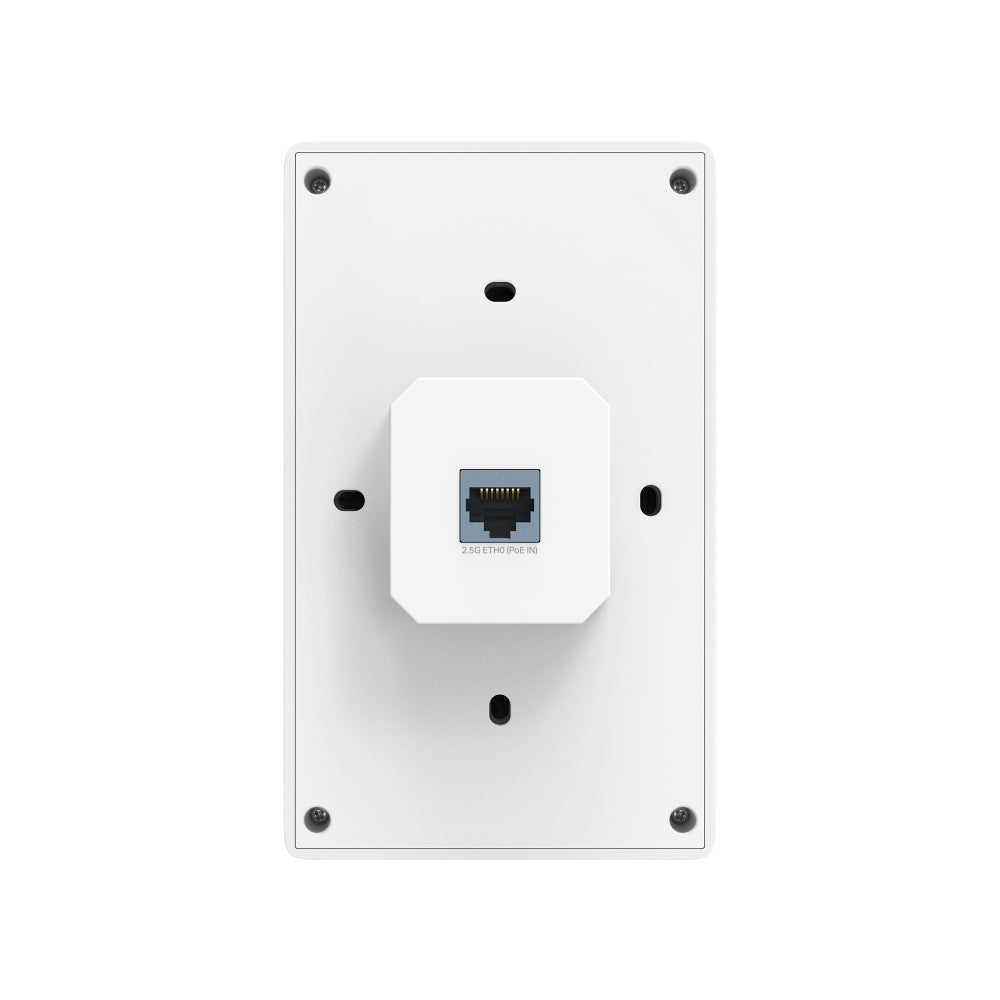

Interface	• Uplink: 1× 2.5G Ethernet Port • Downlink: 1× 2.5G Ethernet Port + 2× Gigabit Ethernet Ports (The 2.5G port supports PoE pass-through.)
Physical Security Lock	No
Button	Reset, LED
Power Supply	802.3at/bt PoE
PoE Out	PoE Passthrough (Pins 1,2-; 3,6+) The PoE pass-through feature requires 802.3at/bt input. If the power consumption of the AP's downstream device exceeds 7W, the AP needs an 802.3bt input.
Max. Power Consumption	• 802.3bt: 17W (PoE Out support 15.4W) • 802.3at: 17W (PoE Out support 7W)
Dimensions ( W x D x H )	143 × 86 × 40 mm (5.6 × 3.4 × 1.6 in)
Antenna	4× Internal Antennas • 2.4 GHz: 2× 4 dBi • 5 GHz: 2× 5 dBi
Bluetooth	V5.2
Mounting	Wall Mounting (Screws included)

WIRELESS FEATURES
Coverage	750ft² (70 ㎡)^*
Concurrent Clients	250+^**
Wireless Standards	IEEE 802.11 a/b/g/n/ac/ax/be
Frequency	2.4 GHz and 5 GHz
Signal Rate	• 5 GHz: Up to 2882 Mbps • 2.4 GHz: Up to 688 Mbps
Wireless Functions	• MLO^‡ • 4K-QAM^‡ • Multi-RUs^‡ • 160 MHz Bandwidth^‡ • 16 SSIDs (Up to 8 SSIDs on each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • Seamless Roaming^△ • Beamforming • Rate Limit (Based on SSID/Client) • Load Balance • Airtime Fairness • Band Steering • Reboot Schedule • Wireless Schedule • RADIUS Accounting • MAC Authentication • Wireless Statistics • Static IP/Dynamic IP
Wireless Security	• Captive Portal Authentication^△ • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • VLAN • Rogue AP Detection • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power	4-22 dBm (2.4GHz) 4-22 dBm (5GHz, U-NII-1, U-NII-2A, U-NII-2C, U-NII-3/ISM)

Management Features
Omada App	Yes
Centralized Management	• Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller
Cloud Access	Yes. Require the use of an Omada controller.
Email Alerts	Yes
LED ON/OFF Control	Yes
Management MAC Access Control	Yes
SNMP	v1, v2c, v3
System Logging Local/Remote Syslog	System Log
SSH	Yes
Web-based Management	Yes
L3 Management	Yes
Multi-site Management	Yes
Management VLAN	Yes
Zero-Touch Provisioning	Yes. Requiring the use of Omada Cloud-Based Controller.

OTHERS
Certification	FCC, RoHS
Package Content	• EAP725-Wall • Installation Guide • Mounting Screws
System Requirements	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux
Environment	• Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
