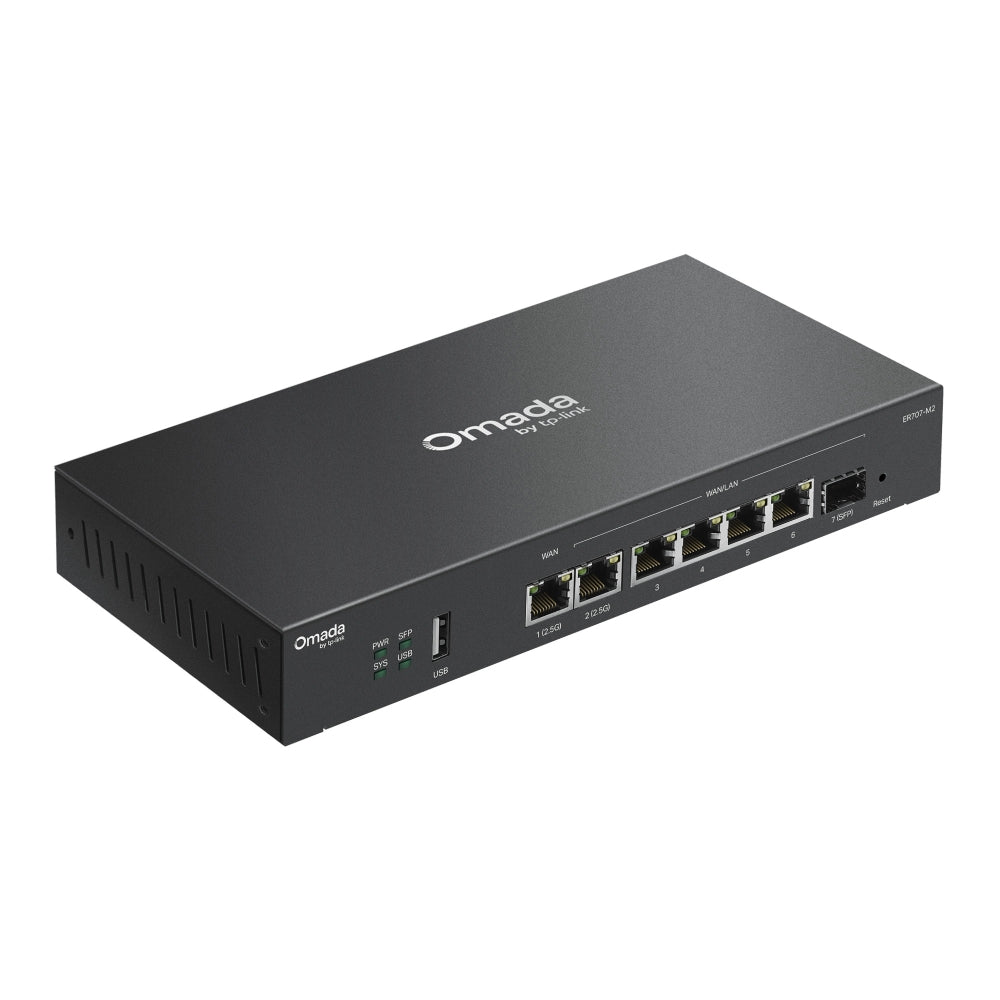

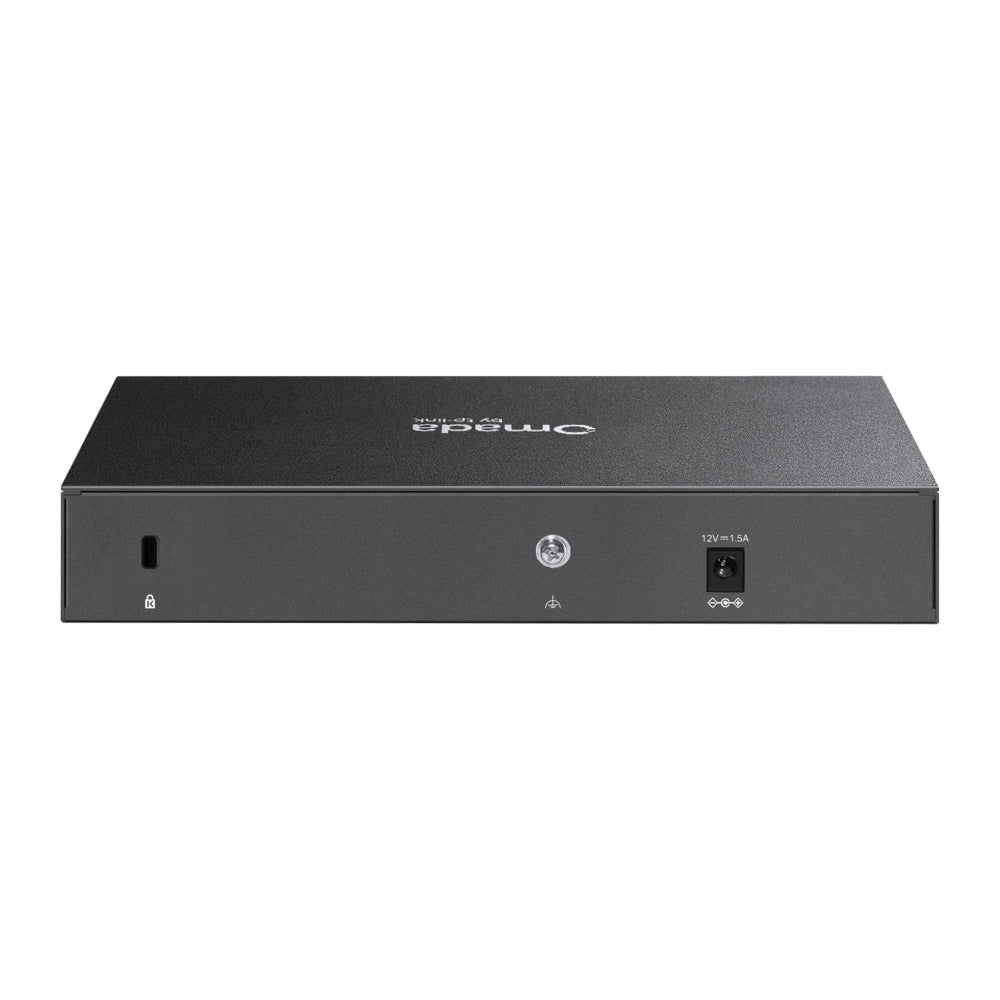

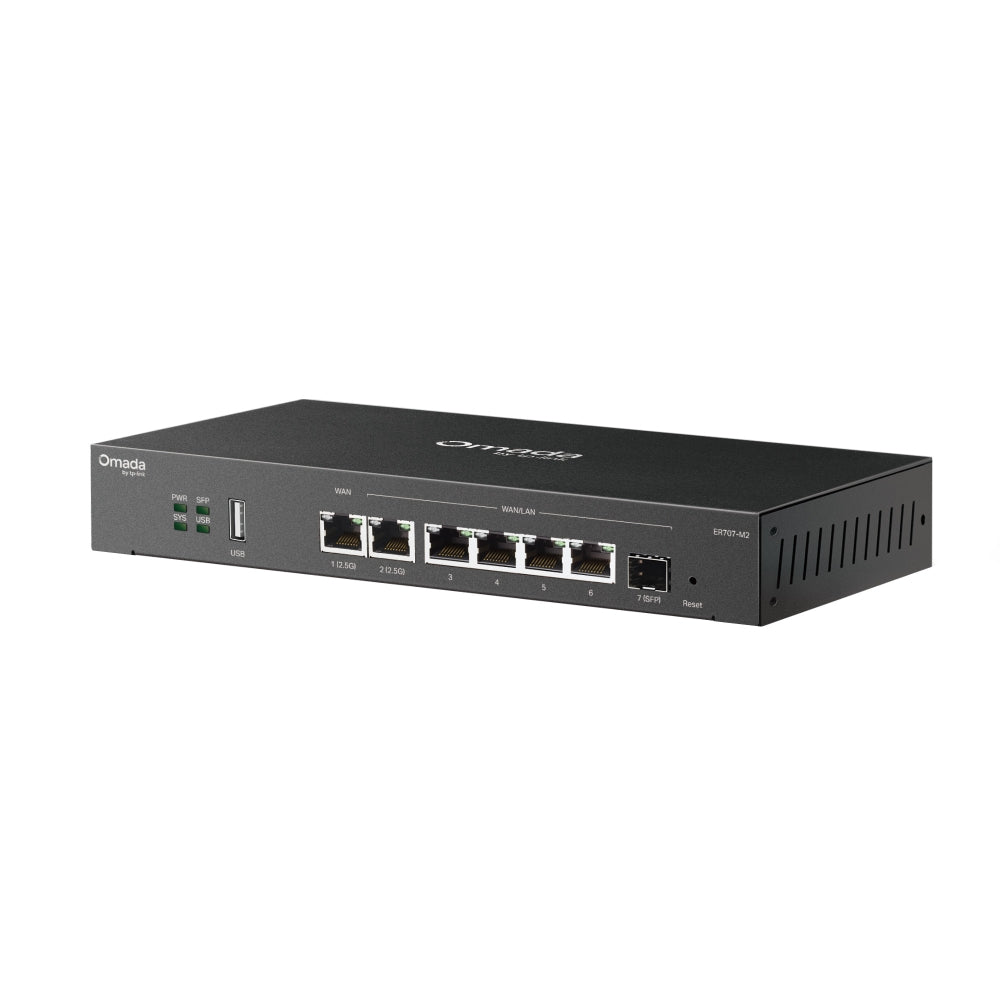

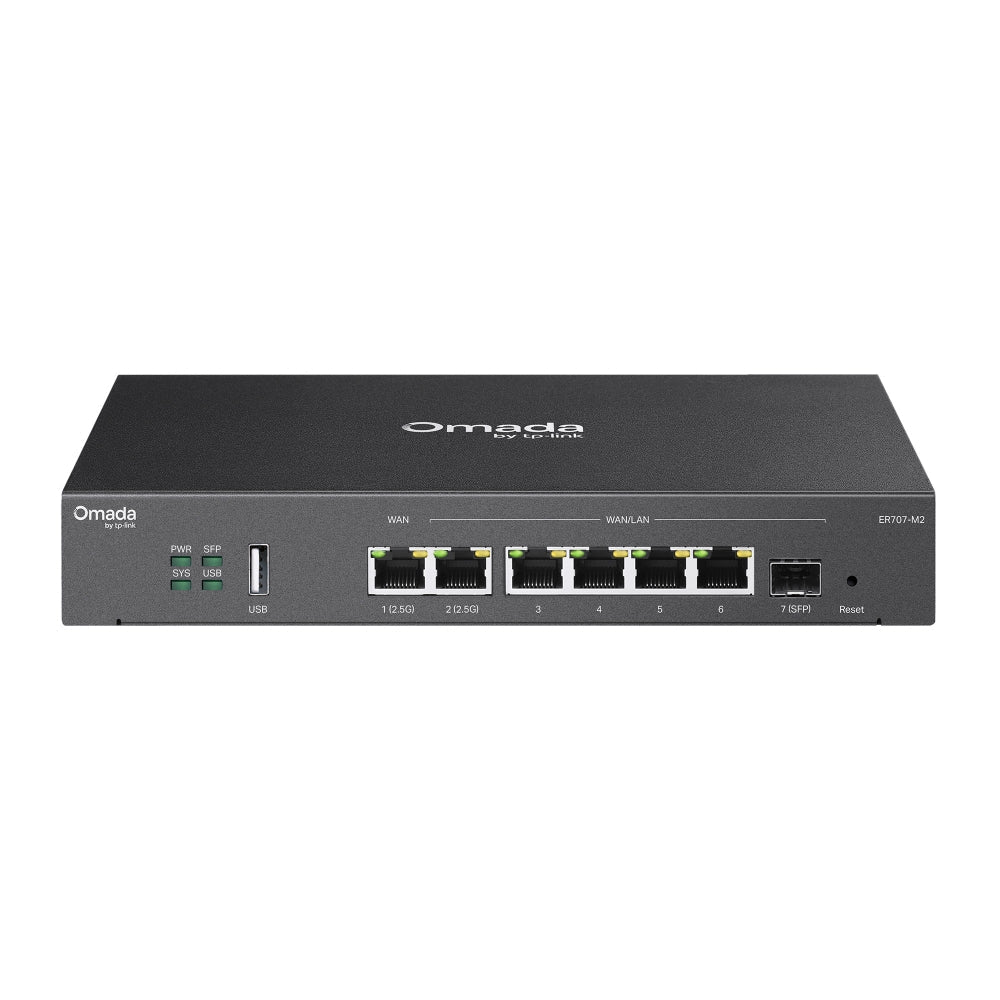

TP LINK ER707-M2 Omada Multi-Gigabit VPN Gateway

TP-LinkSKU: TL-ER707-M2

Description

2× 2.5 Gbps RJ45 ports (1× WAN, 1× WAN/LAN)
5× Gigabit WAN/LAN ports (1× SFP, 4× RJ45)
Load Balancing on up to 6 WAN ports^‡ increases the utilisation rate of multi-line broadband
1× USB port (Supports USB storage, and LTE backup with LTE dongle^#)
High-security SSL/IPSec/GRE^§/WireGuard/PPTP/L2TP VPN & OpenVPN
Centralised cloud management via the web or the Omada app*
DoS/DDoS protection, IP/MAC/URL filtering, DPI, and IPS/IDS for enhanced security
Rackmount, Desktop, or Wall Mount

SECURITY
DPI	Deep Packet Inspection Support 2421 type Applications
IDS/IPS	Signature-based IPS/IDS threat detection
Access Control	• Source/Destination IP Based ACL • Stateful ACL • IPv4/IPv6 ACL • National Based ACL • FQDN
DNS Proxy	DNSSEC, DoH, DoT, DNS Override
Filtering	• Web Group Filtering^§ • URL Categoroies and URLs Filtering • Web Security^§
ARP Inspection	• Sending GARP Packets • ARP Scanning^§ • IP-MAC Binding • ARP Detection
Attack Defense	• TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN

HARDWARE FEATURES
CPU	Dual-core ARMv8
Interface	• 1× 2.5G RJ45 WAN Port • 1× 2.5G RJ45 WAN/LAN Port • 1× Gigabit SFP WAN/LAN Port • 4× Gigabit RJ45 WAN/LAN Ports • 1× USB 2.0 Port (Supports LTE backup with LTE dongle^#, and USB Storage)
Fan Quantity	Fanless
Button	Reset Button
Power Supply	12V/1.5A Adapter
Flash	128 MB NAND
DRAM	1 GB DDR4
LED	PWR, SYS, SFP, USB, WAN (Speed, Link/Act), LAN (Speed, Link/Act)
Weight	0.886 kg
Dimensions ( W x D x H )	8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)
Protection	4 kV surge protection
Enclosure	Steel
Mounting	Desktop/Wall Mount/Rackmount
Max. Power Consumption	14.2 W (with USB 2.0 connected) 7.1 W (without USB 2.0 connected)

PERFORMANCE
IPS Throughput	TCP: 1552 Mbps UDP: 1206 Mbps
DPI Throughput	TCP: 1823 Mbps UDP: 1272 Mbps
GRE	Unencrypted: 951 Mbps Encrypted: 609 Mbps
WireGuard VPN Throughput	343 Mbps
Concurrent Session	500,000
New Sessions /Second	6,000
NAT (Static IP)	2365.17 Mbps / 2364.45 Mbps
NAT(DHCP)	2364.45 Mbps / 2366.04 Mbps
NAT(PPPoE)	2347.14 Mbps / 2348.29 Mbps
NAT (L2TP)	1308.86 Mbps / 974.10 Mbps
NAT (PPTP)	1236.27 Mbps / 1280.99 Mbps
IPsec VPN Throughput	• ESP-SHA1-AES256: 673.3 Mbps • ESP-SHA256-AES256: 650.2 Mbps • ESP-SHA384-AES256: 629.3 Mbps • ESP-SHA512-AES256: 633.8 Mbps
OpenVPN	135.0 Mbps
L2TP VPN Throughput	• Unencrypted: 1243.7 Mbps • Encrypted: 561.0 Mbps
SSL VPN Throughput	132.24 Mbps
66 Byte Packet Forwarding Rate	Upload: 3,471,004 pps Download: 3,298,939 pps
1,518 Byte Packet forwarding rate	Upload: 202,666 pps Download: 202,348 pps

BASIC FUNCTIONS
LAN DNS	√
WAN Connection Type	• IPv4_Static IP • IPv4_Dynamic IP • IPv4_PPPOE • IPv4_L2TP • IPv4_PPTP • IPv6_PPP • IPv6_DHCPv6 • IPv6_Static IP • IPv6_6to4 • IPv6_Pass-Through • Mobile Broadband: 4G/3G modem for backup via USB port
MAC Clone	Modify WAN/LAN MAC Address^§
DHCP	• DHCP Server • DHCPv6 PD Server (only in Standalone Mode) • DHCP Options Customization • DHCP Address Reservation • Multi-IP Interfaces • Multi-Net DHCP • WAN DHCP 60
Stateful ACL	√
Quality of Service	√
Bridge VLAN	√
mDNS Repeater	√
IPv6	StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode
VLAN	802.1Q VLAN
IPTV	IGMP v2/v3 Proxy, Custom Mode, Bridge Mode

Advanced Features
Advanced Routing	• Static Routing • Policy Routing • RIP ^§ • OSPF^§
Bandwidth Control	• IP/Port-based Bandwidth Control • Guarantee & Limited Bandwidth
Load Balance	• Intelligent Load Balance • Application Optimized Routing • Link Backup (Timing^§, Failover) • Online Detection
NAT	• One-to-One NAT • Multi-Net NAT • Virtual Server • Port Forwarding • Port Triggering^§ • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG • UPnP • Disable NAT
Session Limit	IP-based Session Limit

VPN
GRE	√ (Only in Standalone Mode)
SD-WAN	√ (Only in Controller Mode)
SSL VPN	SSL VPN Server 60 SSL VPN Tunnels
IPsec VPN	• 100 IPSec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, SHA1, AES128, AES192, AES256 Encryption Algorithm • IKEv1/v2 • MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS)
PPTP VPN	• PPTP VPN Server • PPTP VPN Clients (12)** • 60 Tunnels (Shared with L2TP) • PPTP with MPPE Encryption
L2TP VPN	• L2TP VPN Server • L2TP VPN Clients (12)** • 60 Tunnels (Shared with PPTP) • L2TP over IPSec
OpenVPN	• OpenVPN Server • OpenVPN Clients (6)** • 66 OpenVPN Tunnels
WireGuard VPN	√

AUTHENTICATION
Web Authentication	• No Authentication • Simple Password^△ • Hotspot (Local User/Voucher^△/SMS^△/Radius^△) • External Radius Server • External Portal Server^△ • LDAP

Management Features
Omada App	Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management	• Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller
Cloud Access	Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Service	Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)
Maintenance	• Web Management Interface • Remote Management • Export & Import Configuration • SNMP v1/v2c/v3 • Diagnostics (Ping & Traceroute) • NTP Synchronize^§ • Port Mirroring • CLI^§ • Syslog Support
Zero-Touch Provisioning	Yes. Requires the use of Omada Cloud-Based Controller.
Management Features	• Automatic Device Discovery • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration

OTHERS
Certification	CE, FCC, RoHS
Package Content	• ER707-M2 • Power Adapter • Rackmount Kit • Quick Installation Guide
System Requirements	Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10, MAC OS, NetWare, UNIX or Linux
Environment	• Operating Temperature: 0–40 ℃ (32–104 ℉); • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% non-condensing
