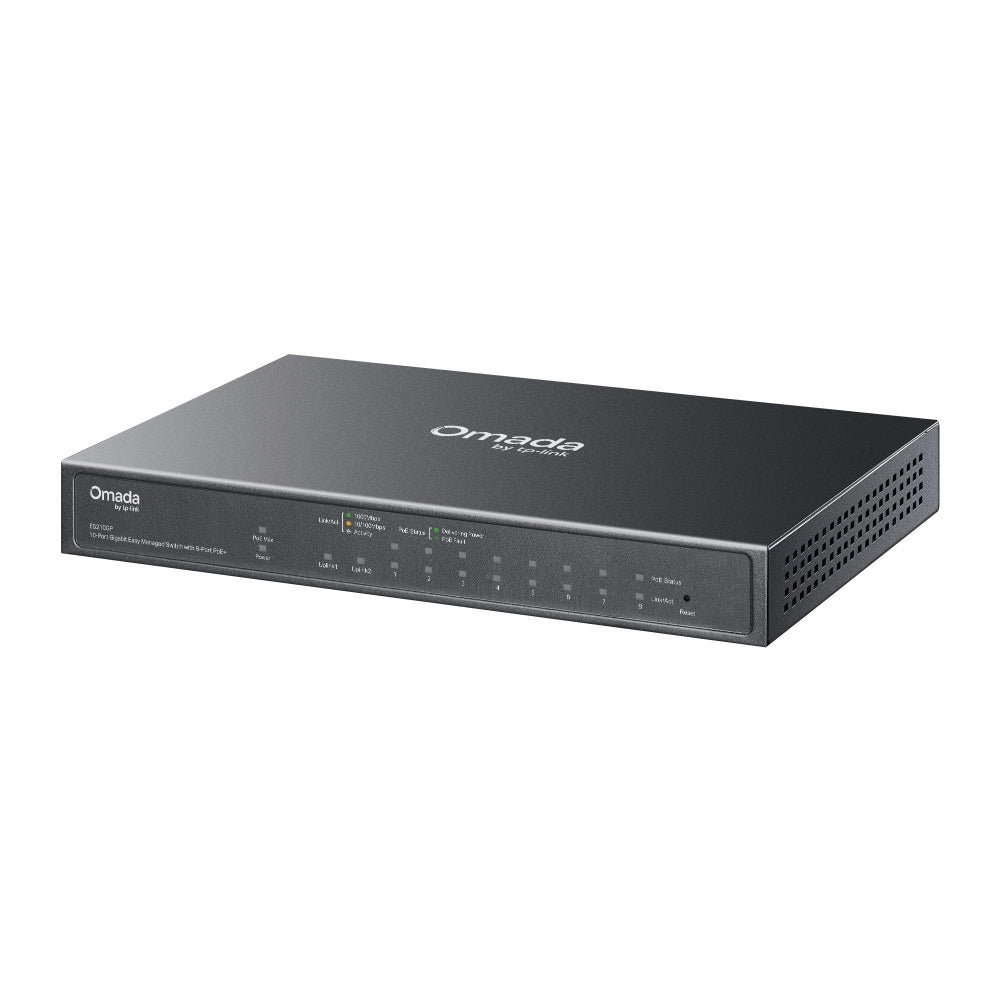

Omada 10-Port Gigabit Easy Managed Switch with 8-Port PoE+
- 8× Gigabit 802.3af/at-compliant PoE+ RJ45 ports
- 1× Gigabit RJ45 port, 1× Gigabit SFP/RJ45 Combo port
- 63W Power Budget, with up to 30W for each PoE port*
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralized Cloud Management via the web or the Omada app†
- Up to 820ft PoE**, Remote Camera Reboot†, QoS, and Port Isolation for reliable surveillance networking
- Automatic Loop Prevention, VLAN, and IGMP Snooping
- Fanless design for silent operation
- Durable metal casing and desktop/wall mounting design
Omada Central Essentials — A Free and Easy Cloud-Based Network Management
Omada Central Essentials is a free, easy-to-use version of the Omada Central.
It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.
- Abundant Functions for Reliable Surveillance Networking
- Multiple Application Scenarios
- Compact and Durable Metal Casing, Featuring Desktop/Wall Mounting and a Fanless Design
-
| HARDWARE FEATURES |
| Interface |

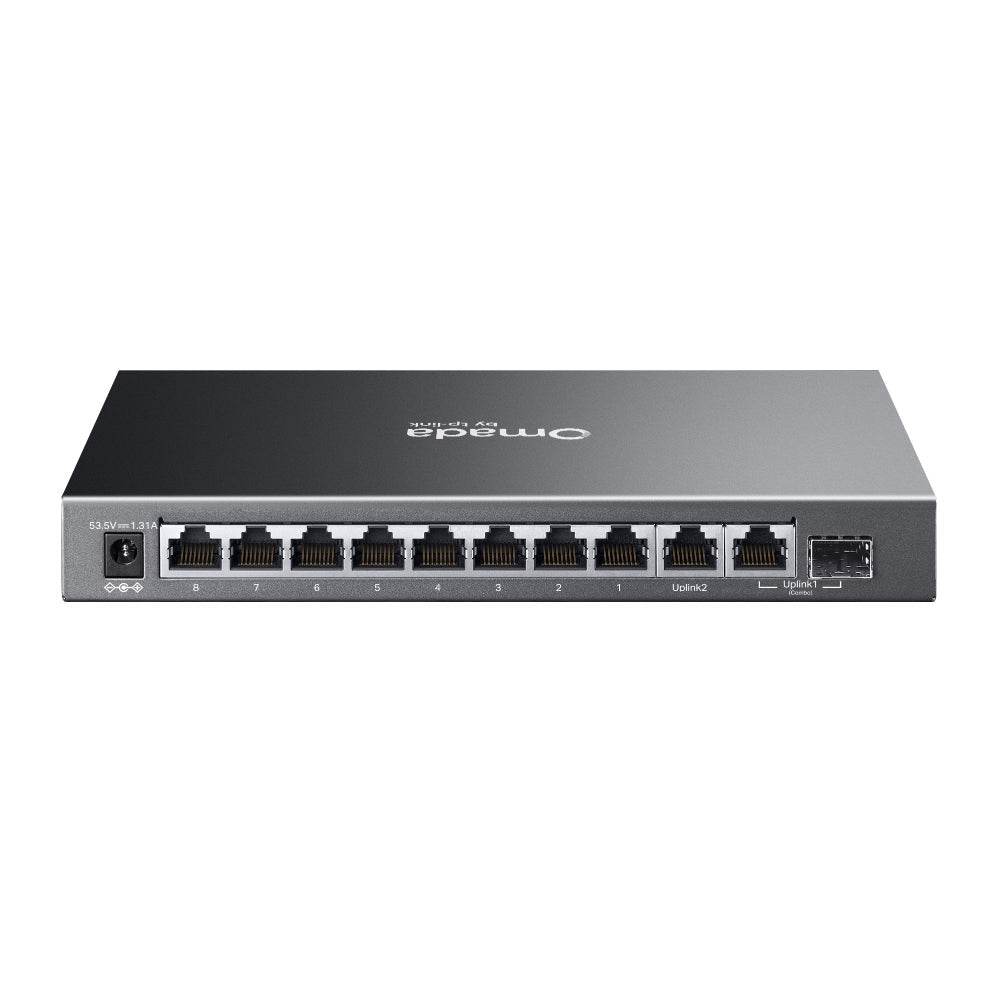

• 8× 10/100/1000 Mbps PoE+ RJ45 Ports (support 802.3af PoE and 802.3at PoE+)
• 1× 10/100/1000 Mbps RJ45 Port
• 1× Gigabit SFP/RJ45 Combo Port
• Auto-Negotiation/Auto MDI/MDIX |
| Fan Quantity |
Fanless |
| Installation |
• Desktop

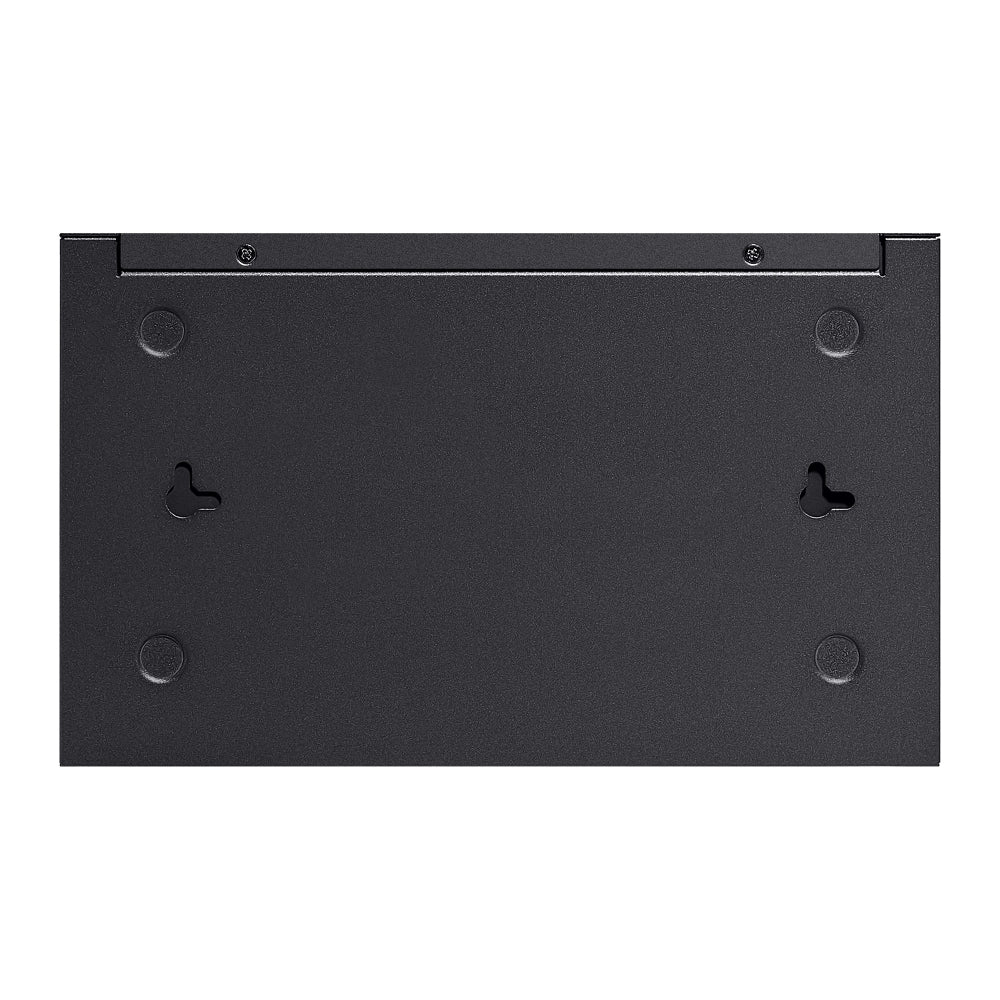

• Wall Mount |
| Physical Security Lock |
√ |
| Power Supply |
DC Power Adapter (Output: 53.5V DC / 1.31A) |
| PoE Ports (RJ45) |
• Standard: 802.3af PoE and 802.3at PoE+ compliant
• PoE Ports: 8 ports
• PoE Budget: 63W available for all PoE+ ports, 30W max per port
• Remote Camera Reboot†
• Up to 820ft (250m) PoE transmission distance** |

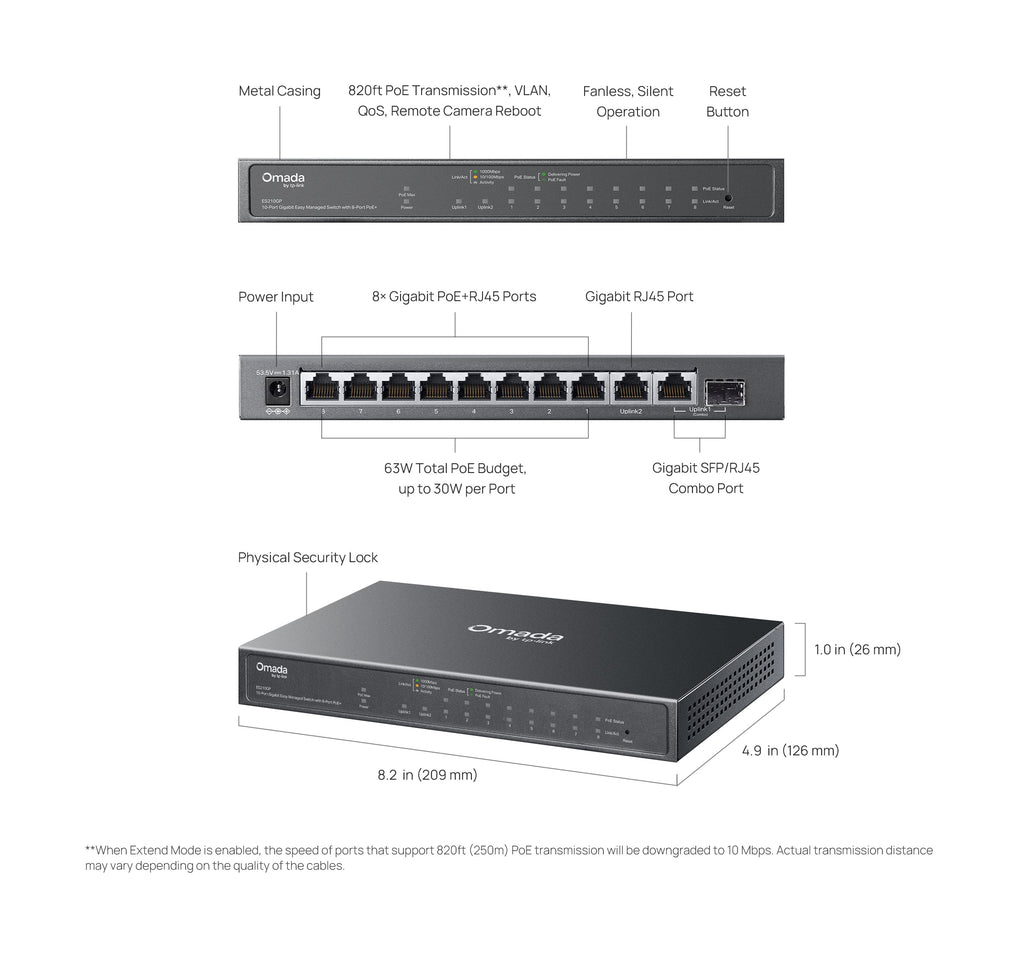

| Dimensions ( W x D x H ) |
8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm) |
| Surge Protection |
±6kV |
|
PERFORMANCE
|
| Switching Capacity |
20 Gbps |
| Packet Forwarding Rate |
14.88 Mpps |
| MAC Address Table |
8K |
| Packet Buffer Memory |
4 Mbit |
| Jumbo Frame |
15 KB |
|
SOFTWARE FEATURES
|
| Quality of Service |
• Port-based/802.1p/DSCP QoS
• 8 Priority Queues
• Priority Schedule Mode
- WRR (Weighted Round Robin)
• Queue Weight Config
• Bandwidth Control
- Port-Based Rating Limit
• Storm Control
- Multiple Control Modes (kbps/pps)
- Broadcast/Multicast/Unknown-Unicast Control△
|
| L2 Features |
• Static Link Aggregation
• Loop Prevention / Loopback Detection
• Flow Control
- 802.3x Flow Control
• Mirroring
- Port Mirroring
- One-to-One
- Many-to-One
- Ingress/Egress/Both
• Port Statistics
- Port Mirror Status
- Traffic Statistics
• 802.1ab LLDP |
| L2 Multicast |
• IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave |
| VLAN |
• MTU VLAN
• Port-Based VLAN
• 802.1Q Tag VLAN
- Max 32 VLAN Groups
- 4K VID |
| Transmission Method |
Store-And-Forward |
|
Management Features
|
| Omada App |
Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management |
• Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller |
| Cloud Access |
Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning |
Yes. Requires the use of Omada Cloud-Based Controller |
| Management Features |
• Web-based GUI
• DHCP Client
• Cable Diagnostics
• Automatic Device Discovery†
• Batch Configuration†
• Batch Firmware Upgrading†
• Unified Configuration†
|
| OTHERS |
| Certification |
FCC, CE, RoHS |
| Package Content |
• ES210GP
• Power Adapter
• Power Cord
• Installation Guide
• Rubber Feet |
| Environment |
• Operating Temperature: 0℃~40℃ (32℉~104℉)
• Storage Temperature: -40℃~70℃ (-40℉~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing |
