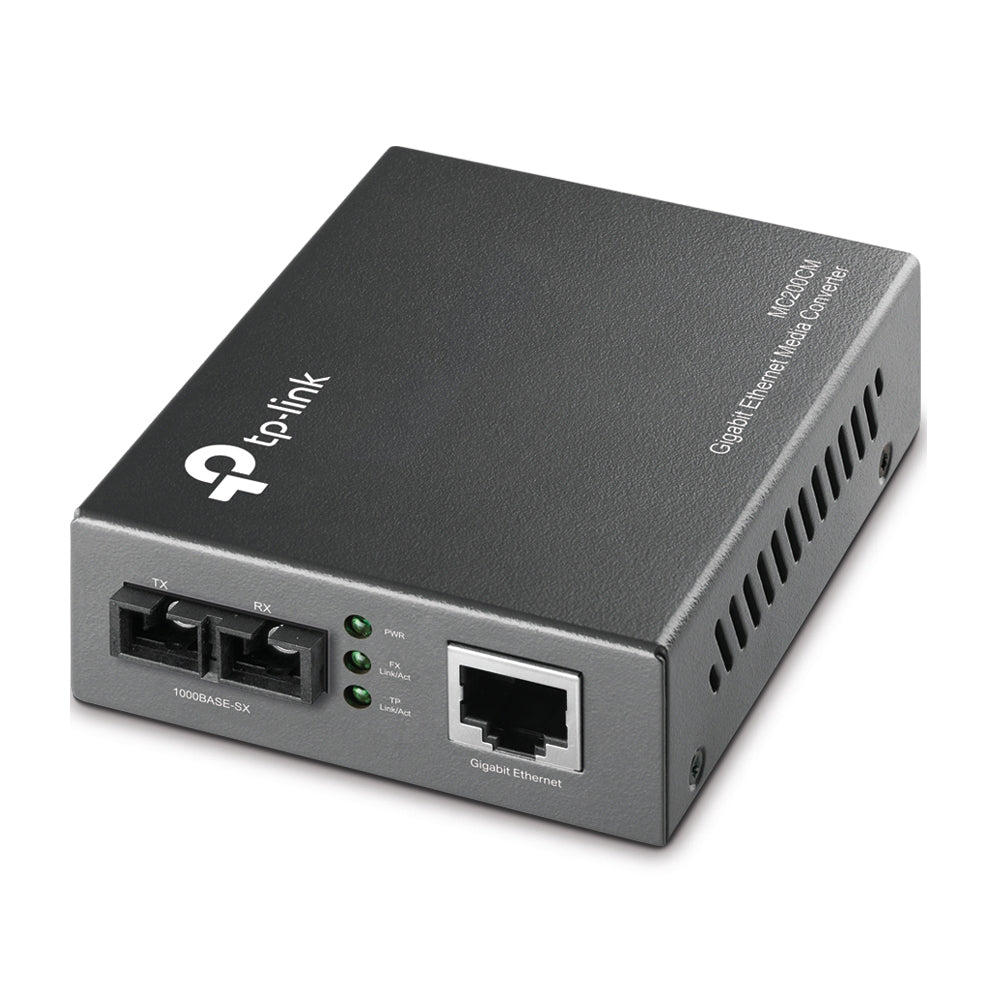

Gigabit Multi-Mode Media Converter
- Complies with IEEE 802.3ab and IEEE 802.3z
- Provides switch configuration of Force /Auto transfer mode for FX port
- Extends fiber distance up to 0.55km
What This Product Does

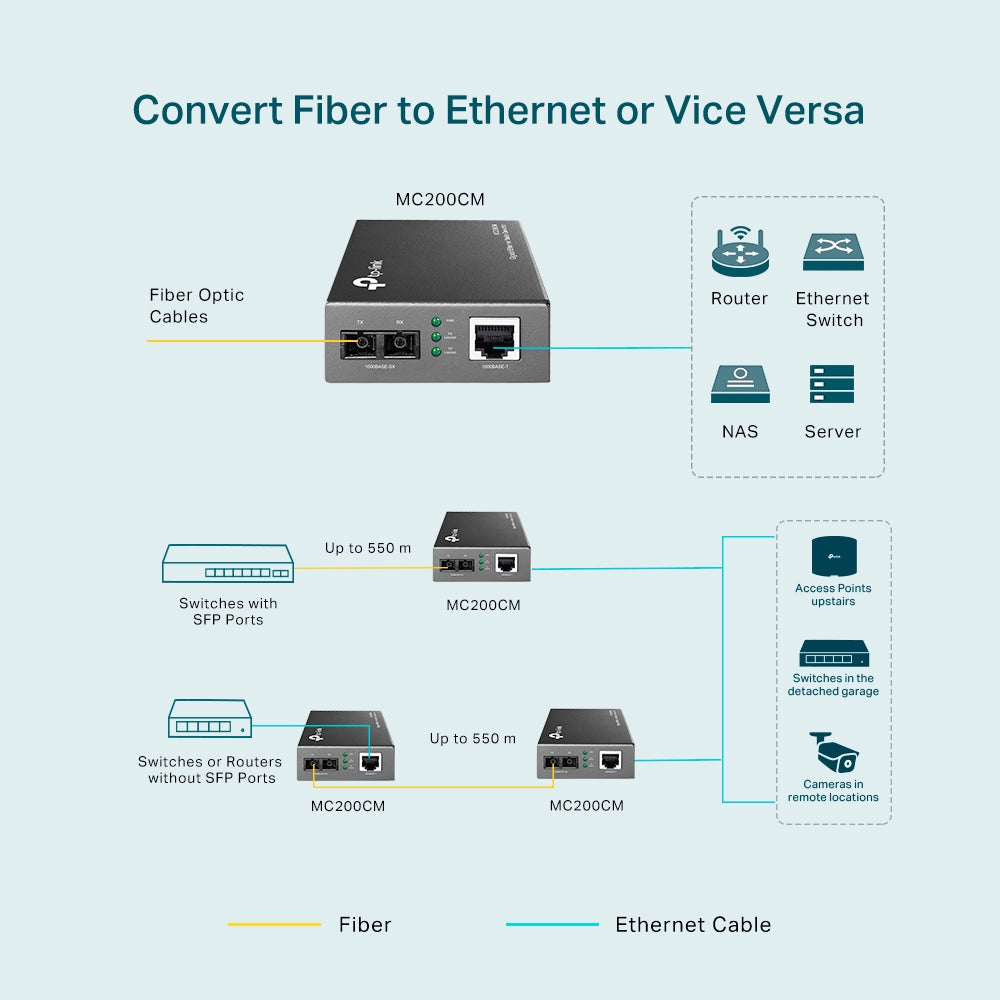

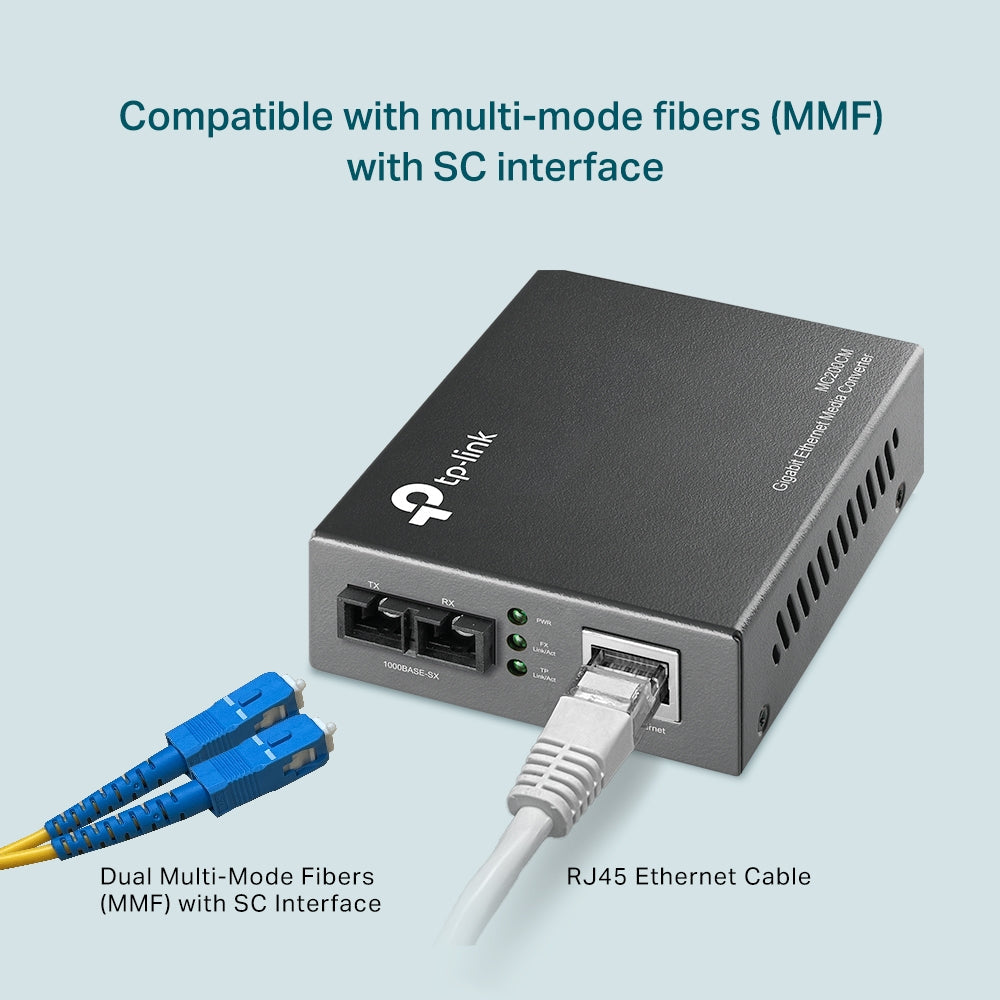

The MC200CM is a media converter designed to convert 1000BASE-SX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX standards, the MC200CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector. The MC200CM supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 850nm on both transmitting and receiving data.
Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK´s 19´system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC200CM will transmit at extended fiber optic distances utilizing multi-mode fiber up to 0.55 kilometers.
| MEDIA CONVERTER & MODULE |
| Standards and Protocols |
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
|
| Basic Function |
Extends fibre distance up to 0.55km using 50/125um fibre
Extends fibre distance up to 0.22km using 62.5/125um fibre
|

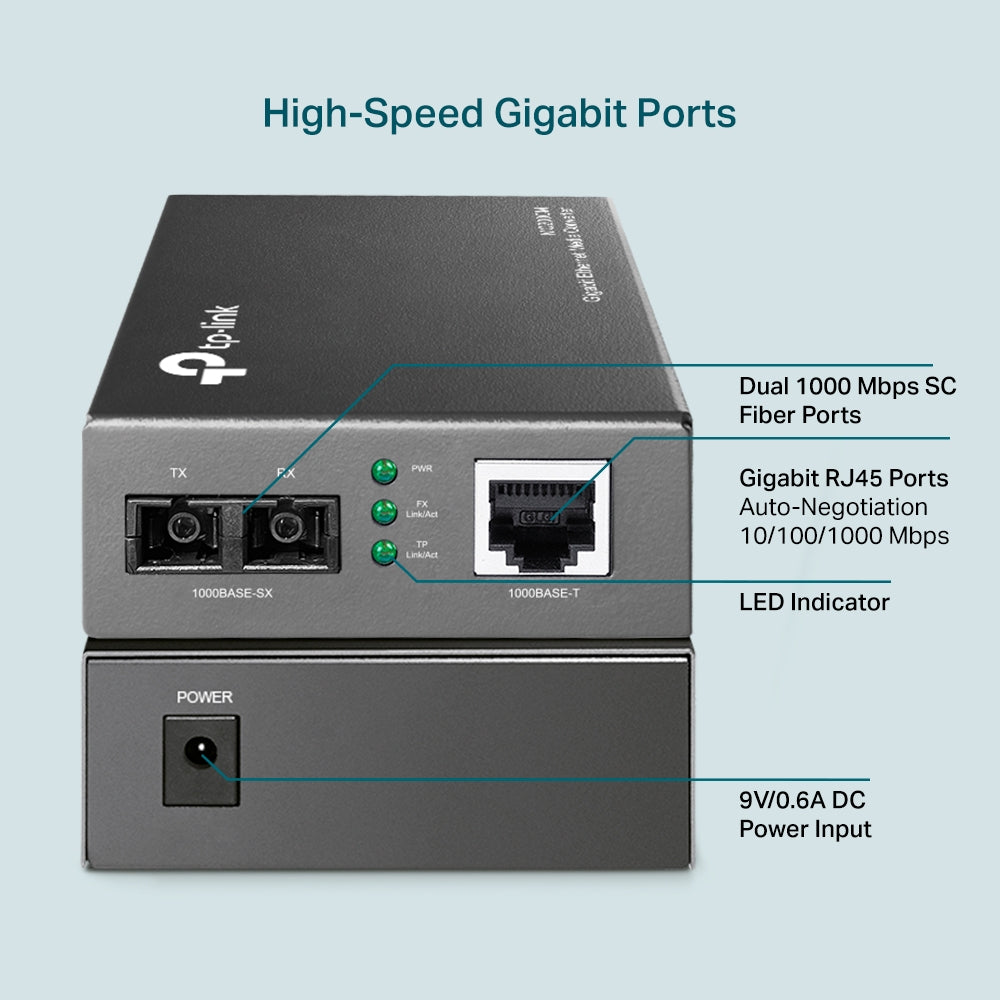

| Ports |
1 1000M SC/UPC port
1 1000M RJ45 port (Auto MDI/MDIX) |
| Wave Length |
850nm |
| Network Media 1000BASE-SX |
Multi-mode Fiber |
| Network Media 1000BASE-T |
UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
|
| LED Indicators |
PWR, Link/Act
|

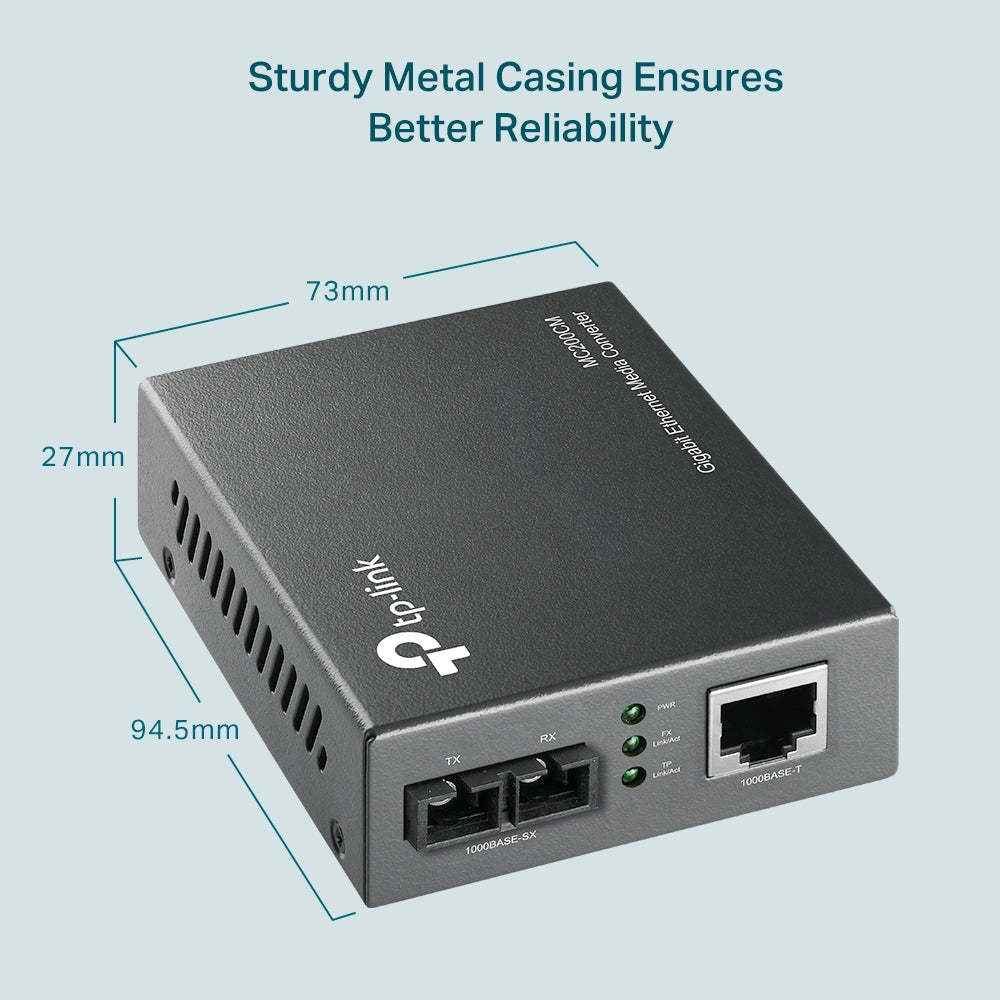

| Dimensions (W*D*H) |
3.7*2.9*1.1 in. (94.5*73.0*27.0 mm)
|
| Power Supply |
External Power Adapter
|
| Max Power Consumption |
1.66W |
| Safety & Emission |
FCC, CE, RoHS |
| Package Contents |
• Media Converter MC200CM
• Power Adapter
• Installation Guide |
| Environment |
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
|
| OTHERS |
| Warranty |
Limited 3-Year Warranty
For further information on our warranty policy please visit: http://www.tp-link.com.au/support/rma |
