TP-Link 6-Port Gigabit Desktop Switch with 3-Port PoE+ and 1-Port PoE++

Roll over image to zoom in Click on image to zoom

TP-Link 6-Port Gigabit Desktop Switch with 3-Port PoE+ and 1-Port PoE++

Name: TP-Link 6-Port Gigabit Desktop Switch with 3-Port PoE+ and 1-Port PoE++
Brand: TP-LINK
SKU: TL-SG1006PP
Price: 139.0 NZD
Availability: OutOfStock

TP-LINKSKU: TL-SG1006PP

Description

6-Port Gigabit Desktop Switch with 3-Port PoE+ and 1-Port PoE++

6× 10/100/1000 Mbps RJ45 ports

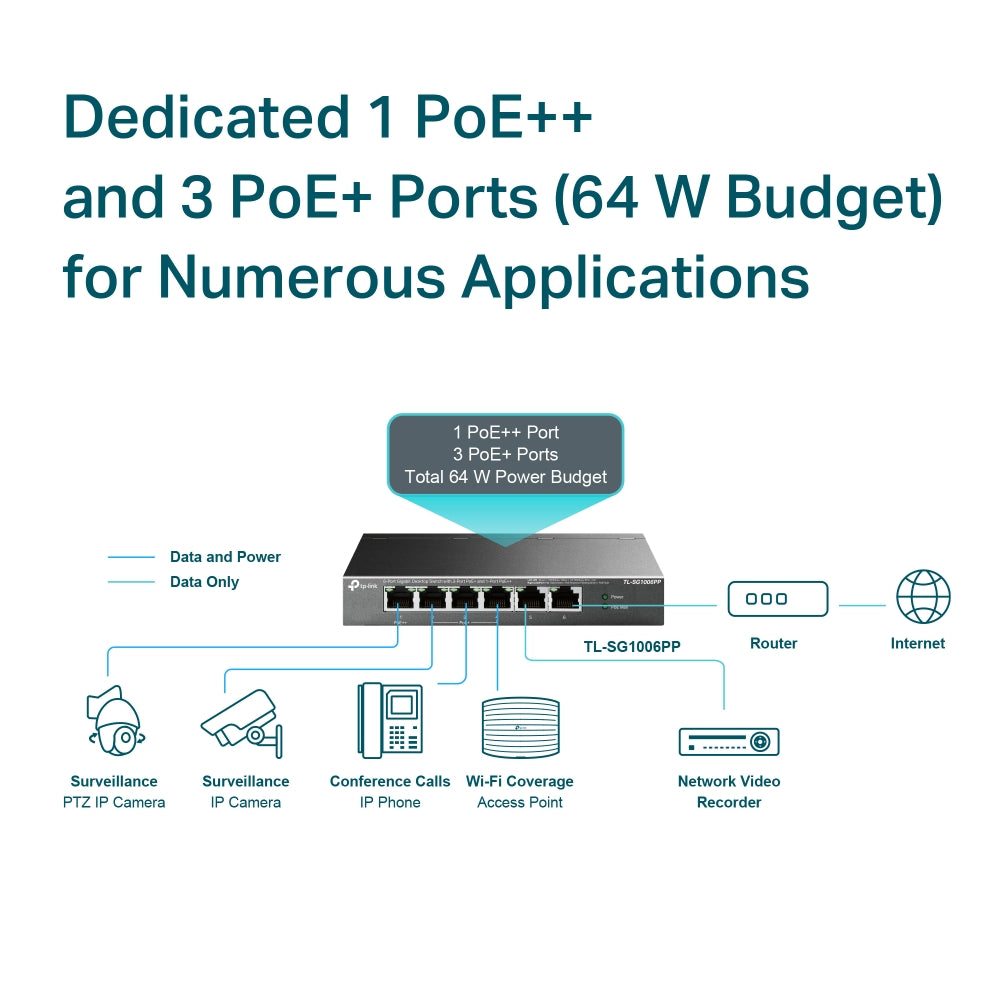

With one PoE++ port and three PoE+ ports, transfers data and power on one single cable
Works with IEEE 802.3af/at/bt compliant PDs
802.1p/DSCP QoS enable smooth latency-sensitive traffic
Supports PoE Power up to 30 W for each PoE+ port and 60W for PoE++ port
Supports PoE Power up to 64 W for all PoE ports^*

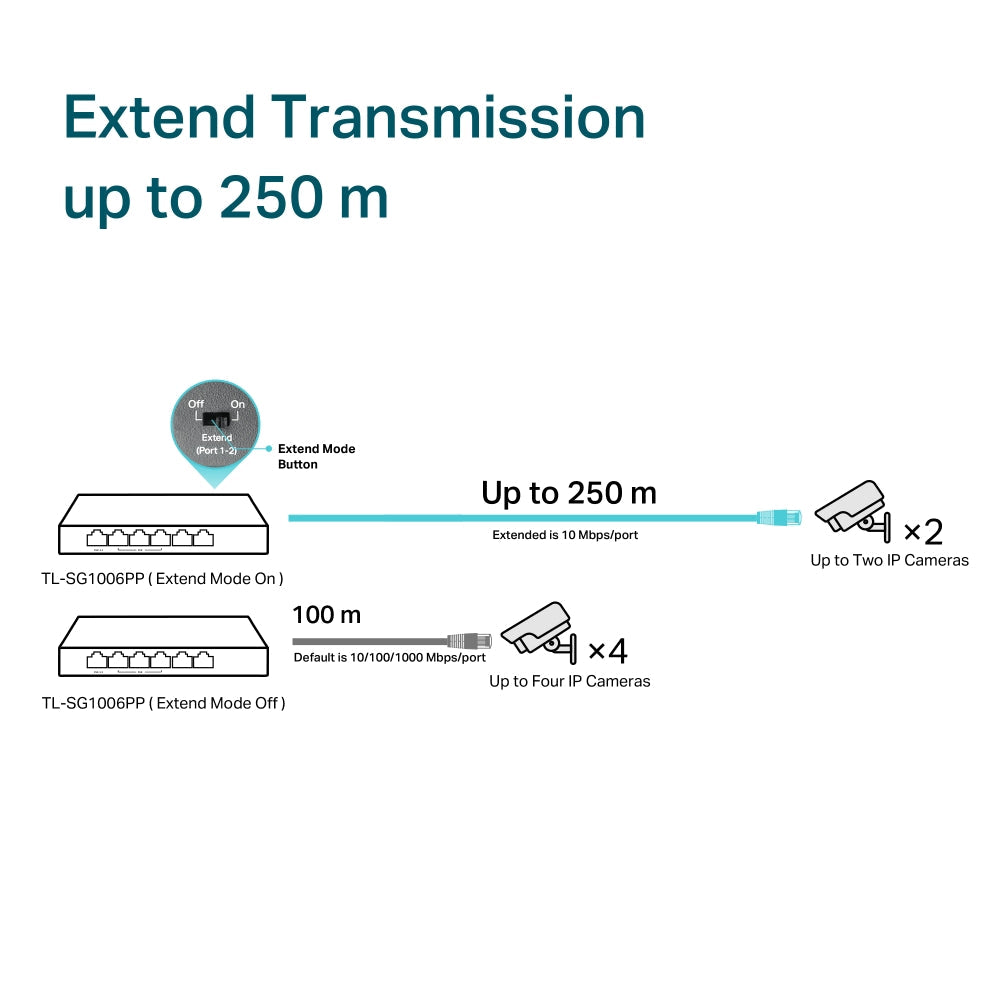

Up to 250m data and power transmitting range under Extend Mode^**

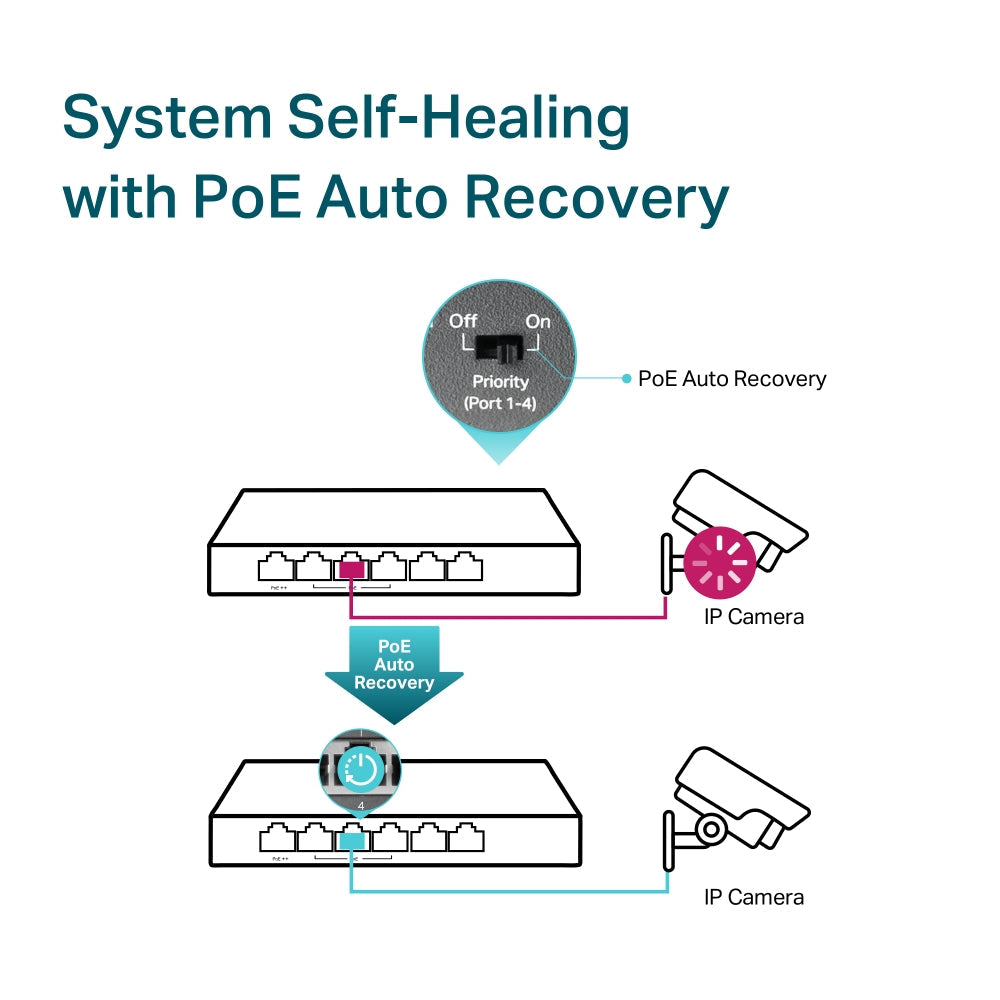

PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices

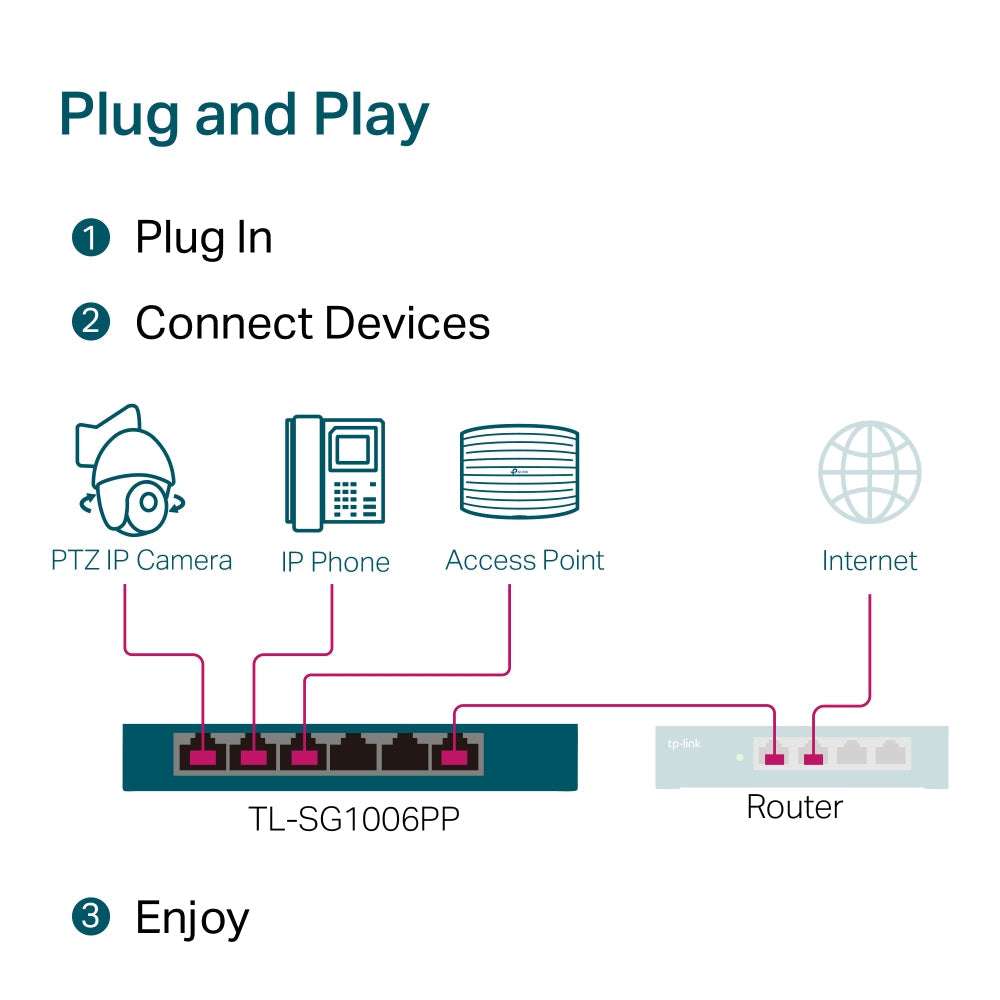

Plug and Play, no configuration and installation required

HARDWARE FEATURES
Interface	• 6× 10/100/1000Mbps RJ45 Ports • AUTO Negotiation • AUTO MDI/MDIX
Network Media	• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity	Fanless
External Power Supply	External Power Adapter (Output: 53.5 VDC / 1.31 A)
Packet Forwarding Rate	8.928 Mpps
PoE Ports (RJ45)	• Port 1 compliances with 802.3af/at/bt; Ports 2-4 compliance with 802.3af/at • Power Supply: 64 W
Mac Address Table	4K
Switching Capacity	12 Gbps
Dimensions ( W x D x H )	6.2x4.0x1.0 in (158x101x25 mm)
Max Power Consumption	• 4.75 W (220/50 Hz. no PD connected) • 71.46 W (220/50 Hz. with 64 W PD connected)
Max Heat Dissipation	• 16.20 BTU/h (220/50 Hz. no PD connected) • 243.68 BTU/h (220/50 Hz. with 64 W PD connected)

SOFTWARE FEATURES
Advanced Features	• Compatible With IEEE 802.3af/at/bt Compliant PDs • Mac Address Auto-Learning And Auto-Aging • IEEE 802.3x Flow Control • 802.1p/DSCP QoS • IGMP Snooping • Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data transmission) • PoE Auto Recovery (Ports 1-4)
Transfer Method	Store-And-Forward

OTHERS
Certification	FCC, CE, RoHS
Package Contents	• TL-SG1006PP • Power Adapter • Installation Guide
Environment	• Operating Temperature: 0–40 ℃ (32–104 ℉); • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing

For additional version information, please go to the support page.

^*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.

**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.
