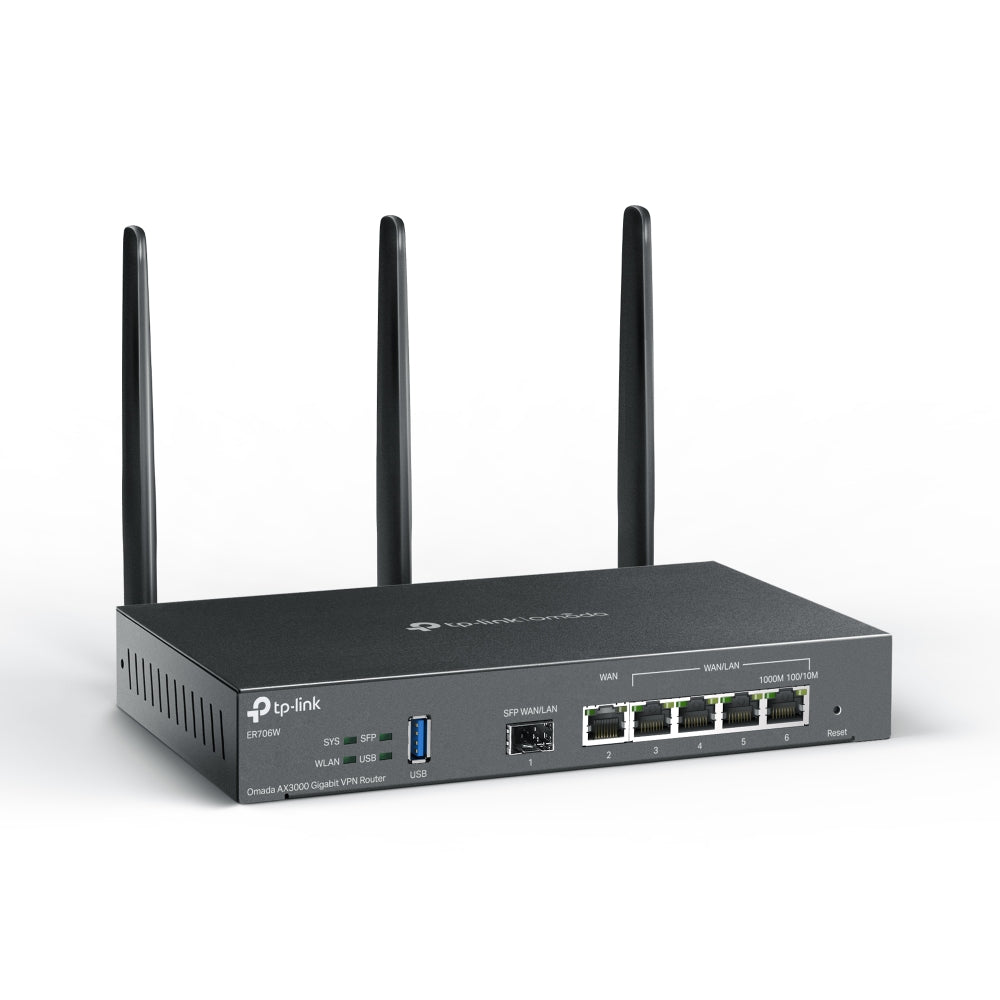

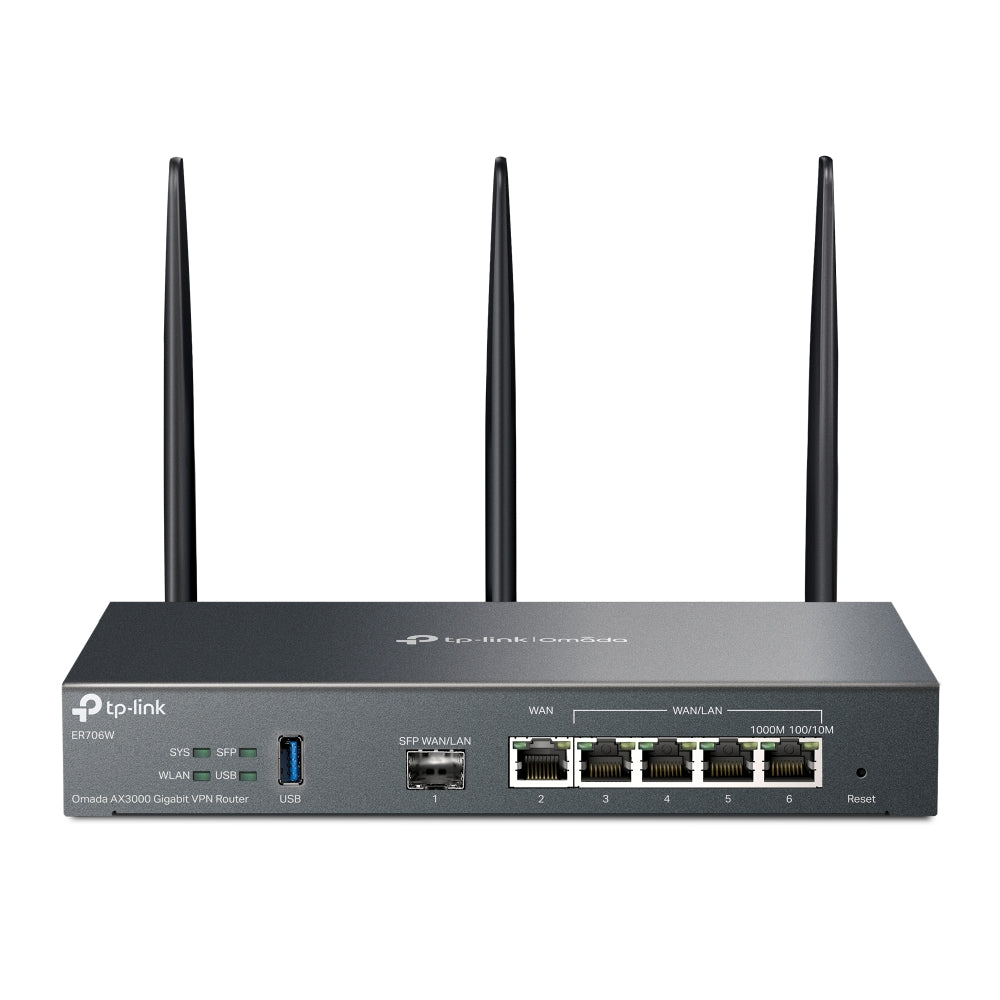

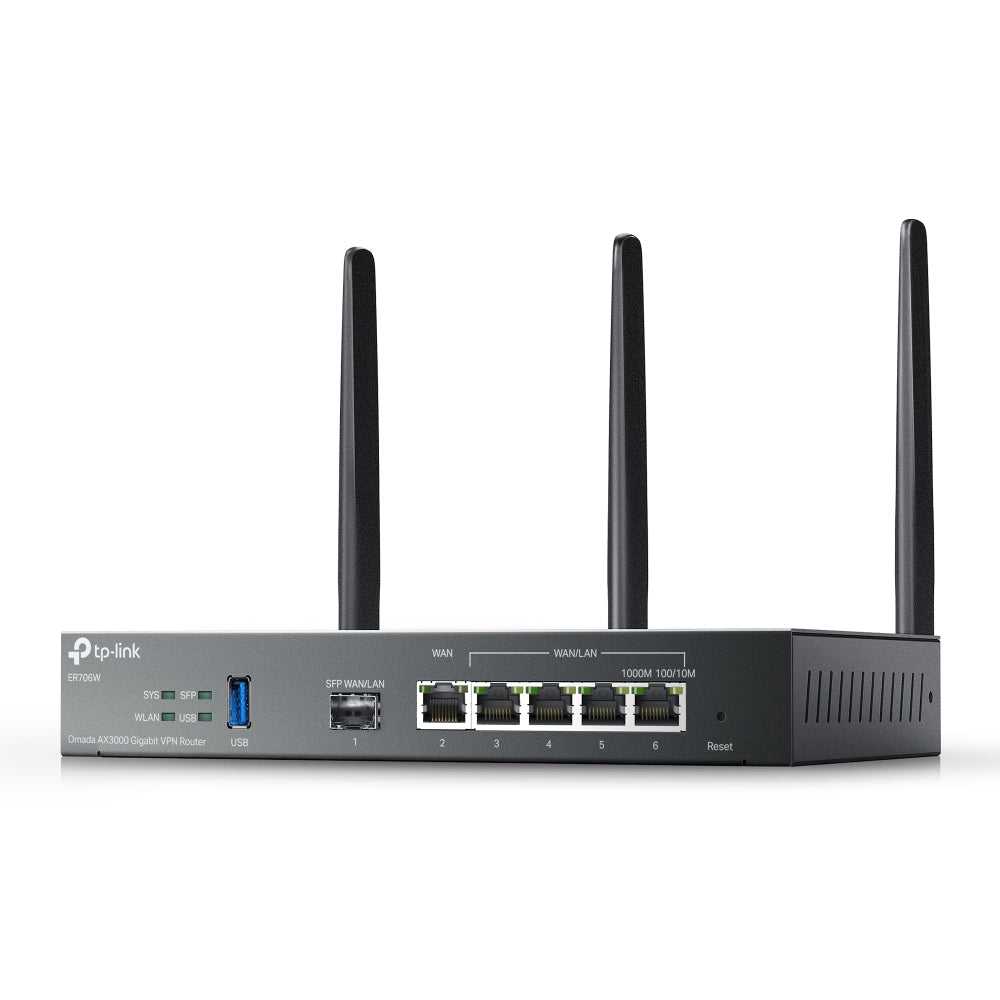

TP LINK Omada AX3000 Gigabit VPN Router

Name: TP LINK Omada AX3000 Gigabit VPN Router
Brand: TP-LINK
SKU: TL-ER706W
Price: 339.0 NZD
Availability: InStock

TP-LINKSKU: TL-ER706W

Description

Omada AX3000 Gigabit VPN Router

AX3000 Dual-Band WiFi: Supports 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz^*
6 Gigabit Ethernet Ports: 1 gigabit SFP and 5 gigabit RJ45 ports provide high-speed wired connectivity.

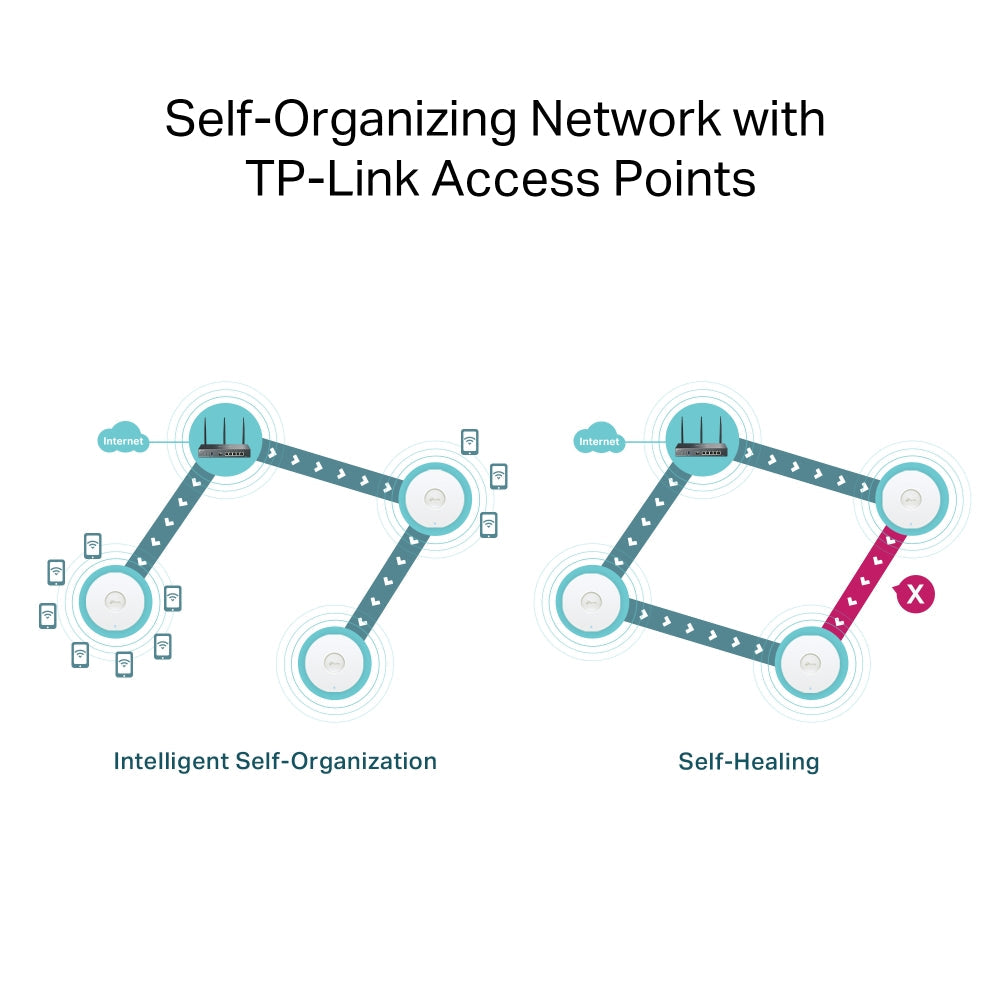

Omada Mesh Technology: Seamlessly connects to EAPs that support mesh technology, ideal for large-scale scenarios.^**

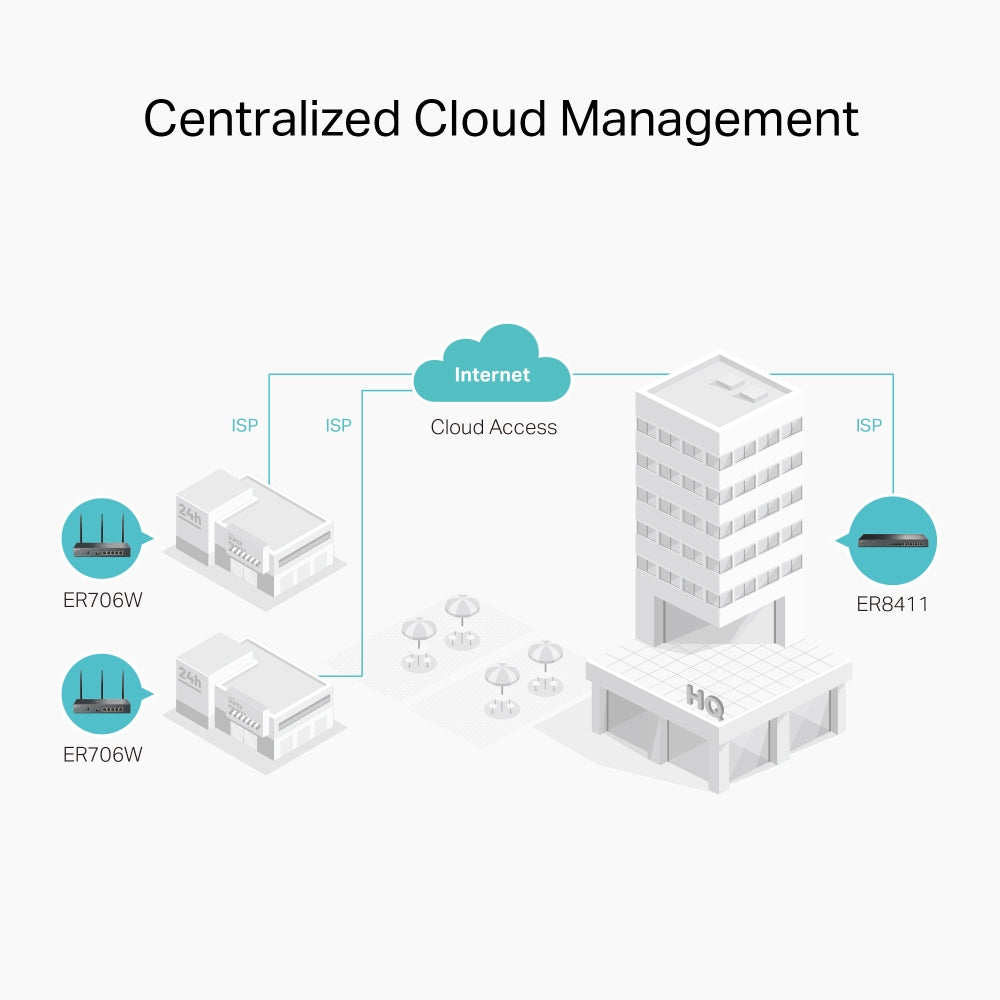

Centralised Management: Cloud access and Omada app for ultra convenience and easy management.

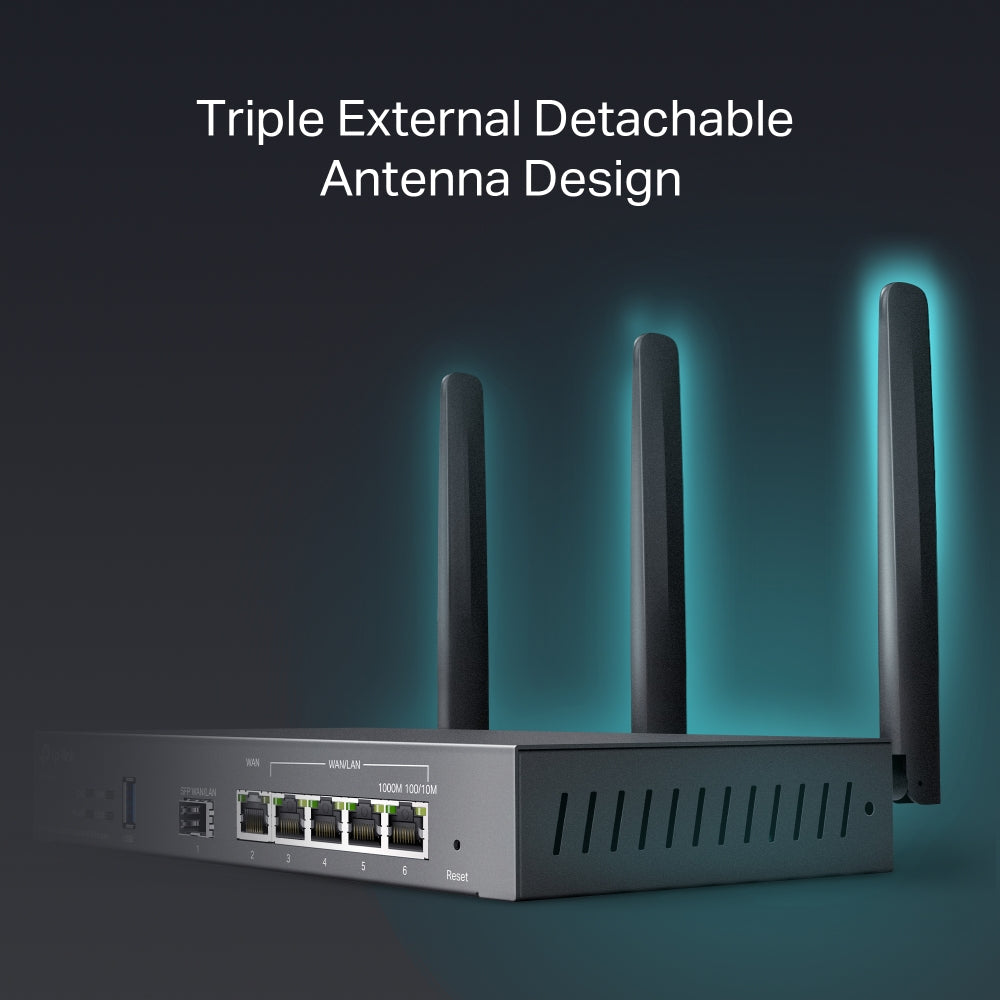

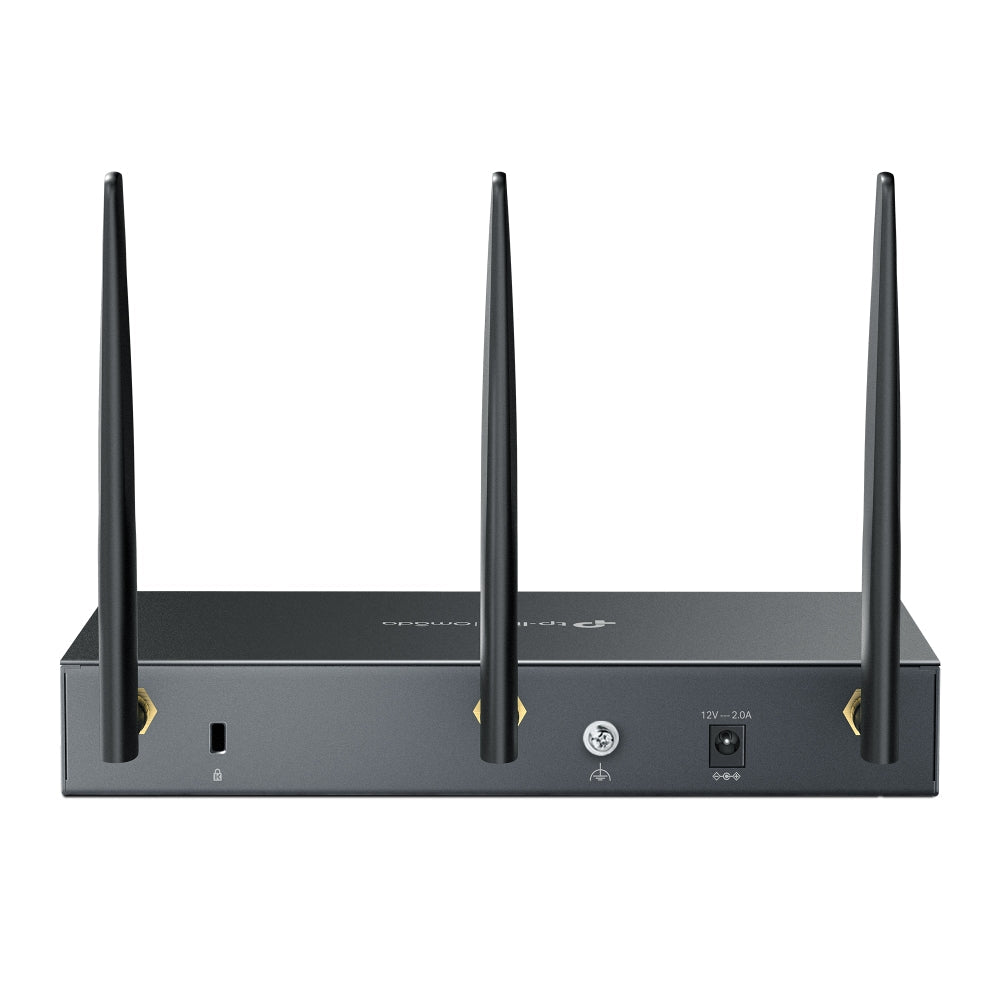

Boosted Coverage: Triple external antennas extend and concentrate the Wi-Fi signals.

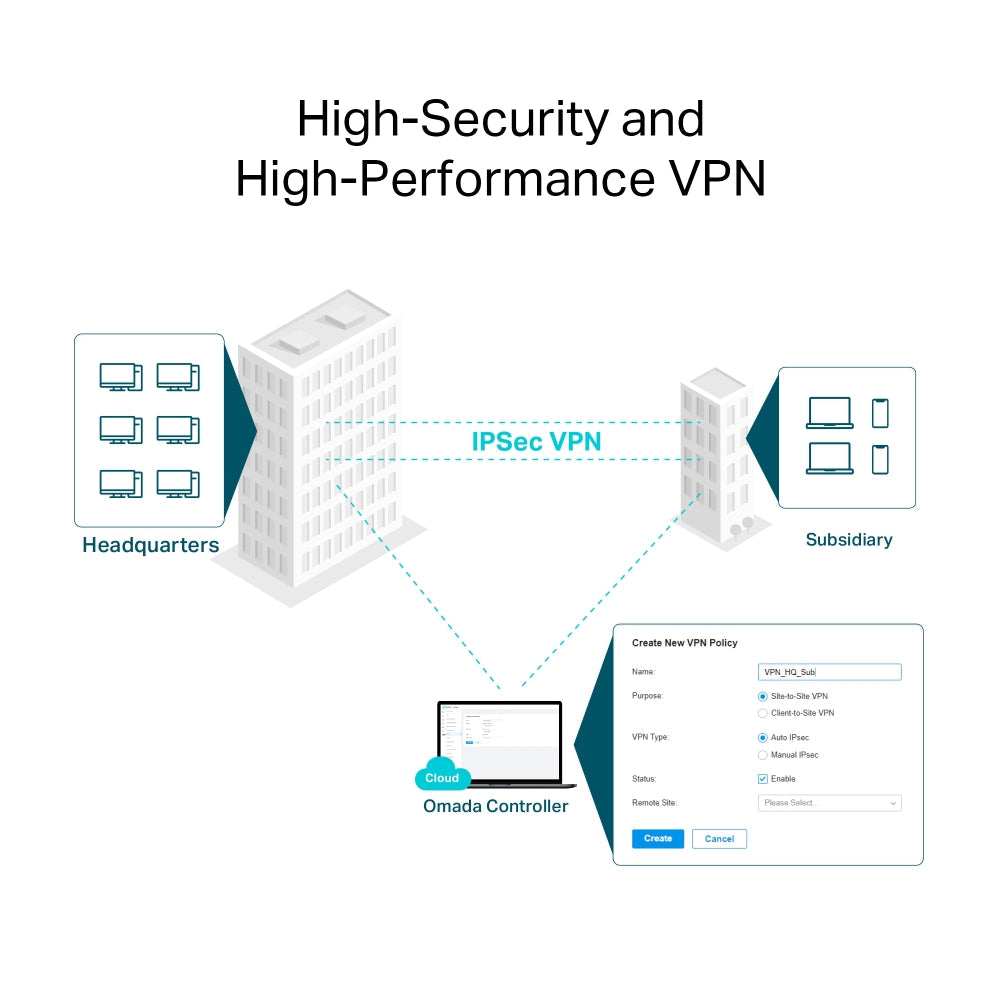

High-Security VPN: Supports multiple VPN protocols including IPSec / SSL / Wireguard / PPTP / L2TP VPN, helping users to establish remote connections more flexibly.^△
Abundant Security Features: Advanced firewall policies, DoS defence,IP/MAC/URL filtering, and more security functions protect your network and data.

Learn more about Omada Cloud SDN>

HARDWARE FEATURES

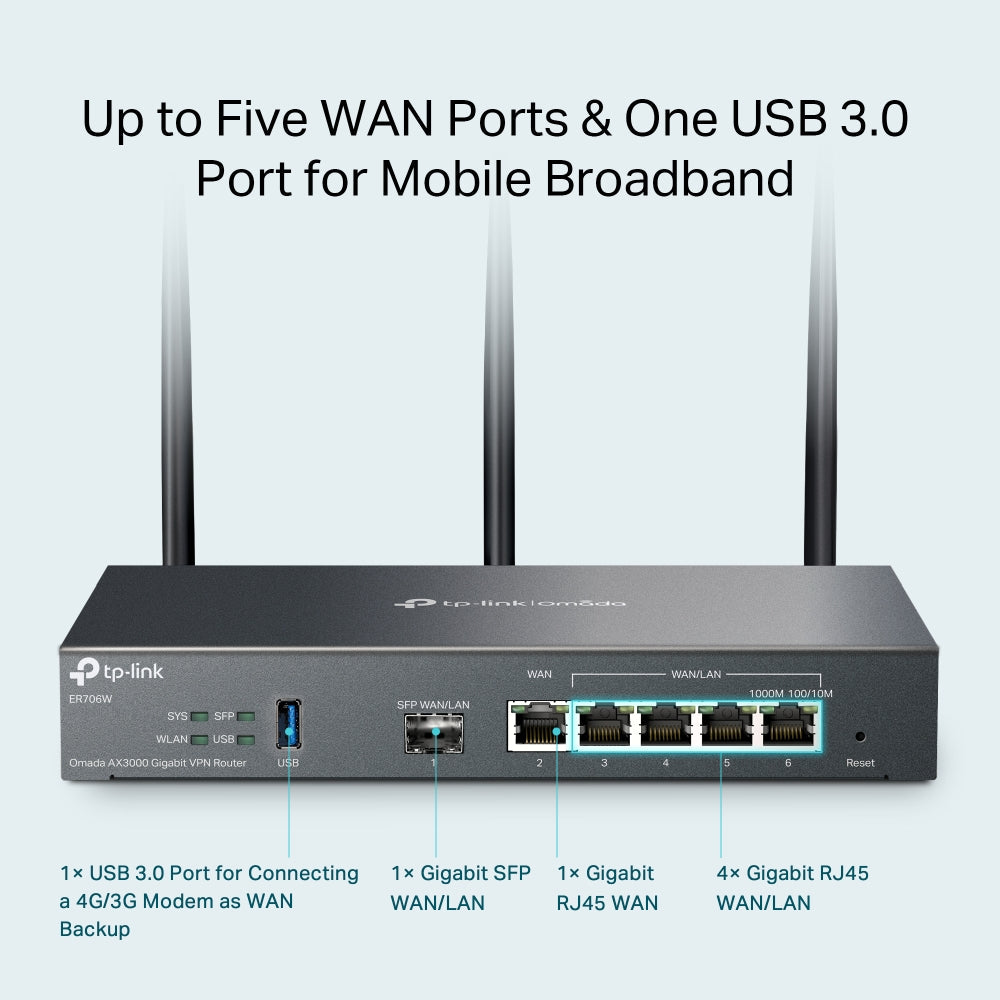

Interface	• 1 Gigabit SFP WAN/LAN Port • 1 Gigabit WAN Port • 4 Gigabit LAN/WAN Ports • 1 USB3.0 (supports USB LTE dongle and USB Storage)
Button	Reset Button
Power Supply	12VDC / 2A Power Adapter
Wi-Fi Frequency & Signal Rate	• 2.4 GHz: 574 Mbps • 5 GHz: 2402 Mbps (HE160)
Flash	128 MB NAND
DRAM	512 MB DDR4
Dimensions ( W x D x H )	8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) (Antenna dimensions are not included)
Antenna	• 2.4 GHz: 2x 3 dBi dual-band detachable antennas • 5 GHz: 3x 4.5 dBi dual-band detachable antennas
Mounting	Desktop/Wall-mounting
Max Power Consumption	• EU: 16.8W (with USB 3.0 connected), 11.8W (without USB 3.0 connected) • US: 22.7W (with USB 3.0 connected) 18.2W (without USB 3.0 connected)

PERFORMANCE
GRE	• Unencrypted: 624.2Mbps • Encrypted: 301.5Mbps
WireGuard VPN	393.5Mbps
Concurrent Session	150,000
New Sessions /Second	5,100
NAT (Static IP)	937.2 Mbps / 936.1Mbps
NAT(DHCP)	945.8 Mbps / 940.6Mbps
NAT(PPPoE)	942.9 Mbps / 942.9Mbps
NAT (L2TP)	837.4 Mbps / 881.5Mbps
NAT (PPTP)	803.0 Mbps / 910.5 Mbps
IPsec VPN Throughput	• ESP-SHA1-AES256: 646.9Mbps • ESP-SHA256-AES256: 642.8Mbps • ESP-SHA384-AES256: 648.9Mbps • ESP-SHA512-AES256: 658.4 Mbps
OpenVPN	129.3Mbps
L2TP VPN Throughput	• Unencrypted: 1034.0 Mbps • Encrypted: 570.0 Mbps
PPTP VPN Throughput	• Unencrypted: 1165.0 Mbps • Encrypted: 209.0 Mbps
SSL VPN Throughput	126.7Mbps
66 Byte Packet forwarding rate	1,453,489 pps / 1,453,488 pps
1,518 Byte Packet forwarding rate	81,274 pps / 91,275 pps

WIRELESS FEATURES
Advanced Functions	• Seamless Roaming • Mesh (with EAP that supports Mesh) • OFDMA • Beamforming • MU-MIMO • Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise
Guest Network	Support

BASIC FUNCTIONS
WAN Connection Type	• Static IP • Dynamic IP • PPPoE (supports MRU Configuration) • PPTP • L2TP
MAC Clone	Modify WAN Address
DHCP	• DHCP Server • DHCPv6 PD Server (only in Standalone Mode) • DHCP Options Customization • DHCP Address Reservation • Multi-IP Interfaces • Multi-Net DHCP
IPv6	StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode
VLAN	802.1Q VLAN
IPTV	IGMP v2/v3 Proxy, Custom Mode, Bridge Mode

ADVANCED FUNCTIONS
ACL	IP/Port/Protocol/Domain Name Filtering
Advanced Routing	• Static Routing • Policy Routing • RIP^† • OSPF^†
Bandwidth Control	IP-Based Bandwidth Control
Load Balance	• Intelligent Load Balance • Application Optimized Routing • Link Backup(Timing, Failover) • Online Detection
NAT	• One-to-One NAT • Multi-Net NAT • Virtual Server • Port Triggering^† • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG • UPnP
Session Limit	IP-Based Session Limit

VPN
SSL VPN	50 Tunnels
IPsec VPN	• 100 IPSec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm • IPsec Failover • IKE v1/v2 • MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS)
PPTP VPN	• PPTP VPN Server • PPTP VPN Client (10)^△ • 50 Tunnels • PPTP with MPPE Encryption
L2TP VPN	• L2TP VPN Server • L2TP VPN Client (10)^△ • 50 Tunnels • L2TP over IPSec
OpenVPN	• OpenVPN Server • OpenVPN Client (5)^△ • 55 OpenVPN Tunnels • "Certificate + Account" Mode • Full Mode

SECURITY
Filtering	• Web Group Filtering^† • URL Filtering • Web Security^†
ARP Inspection	• Sending GARP Packets • ARP Scanning^† • IP-MAC Binding
Attack Defense	• TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN
Access Control	Source/Destination IP Based Access Control

AUTHENTICATION
Web Authentication	• No Authentication • Simple Password^§ • Hotspot (Local User / Voucher^§ / SMS^§ / Radius^§) • External Radius Sever • External Portal Sever^§ • LDAP

MANAGEMENT
Omada App	Yes.
Centralized Management	• Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller
Cloud Access	Yes.
Service	Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
Maintenance	• Web Management Interface • Remote Management • Export & Import Configuration • SNMP v1/v2c/v3 • Diagnostics (Ping & Traceroute)^† • NTP Synchronize^† • Port Mirroring • CLI (only in Standalone Mode) • Syslog Support
Zero-Touch Provisioning	Yes. Require the use of Omada Cloud-Based Controller.
Management Features	• Automatic Device Discovery • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration

OTHERS
Certification	CE, FCC, RoHS
Package Contents	• ER706W • Power Adapter • Quick Installation Guide
System Requirements	• Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11 • MAC OS, NetWare, UNIX or Linux
Environment	• Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F) • Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F) • Operating Humidity: 10% to 90% non-condensing • Storage Humidity: 5% to 90% non-condensing

For additional version information, please go to the support page.

^*Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and coverage are not guaranteed and will vary.

^**Omada Mesh Technology requires the use of EAPs that support mesh functionality. Please refer to https://www.tp-link.com/en/omada-mesh/product-list/ to confirm which Omada EAPs are compatible with Omada Mesh. Additionally, ER706W also supports standalone mesh. Please refer to https://www.tp-link.com/en/standalonemesh/product-list/ to confirm the specific models.

^‡Use of WiFi 6 (802.11ax) and its features, including OFDMA, HE160, and 1024-QAM, require clients to support the corresponding features. The 160 MHz bandwidth is only available on the 5 GHz band. It may be unavailable in some regions/countries due to regulatory restrictions.

^△For PPTP VPN and L2TP VPN, ER706W V1 can connect with up to 10 VPN servers. For OpenVPN, ER706W V 1 can connect with up to 5 VPN servers.

**Omada Mesh Technology requires the use of EAPs that support mesh functionality. Please refer to https://www.tp-link.com/en/omada-mesh/product-list/ to confirm which Omada EAPs are compatible with Omada Mesh. Additionally, ER706W also supports standalone mesh. Please refer to https://www.tp-link.com/en/standalonemesh/product-list/ to confirm the specific models.
