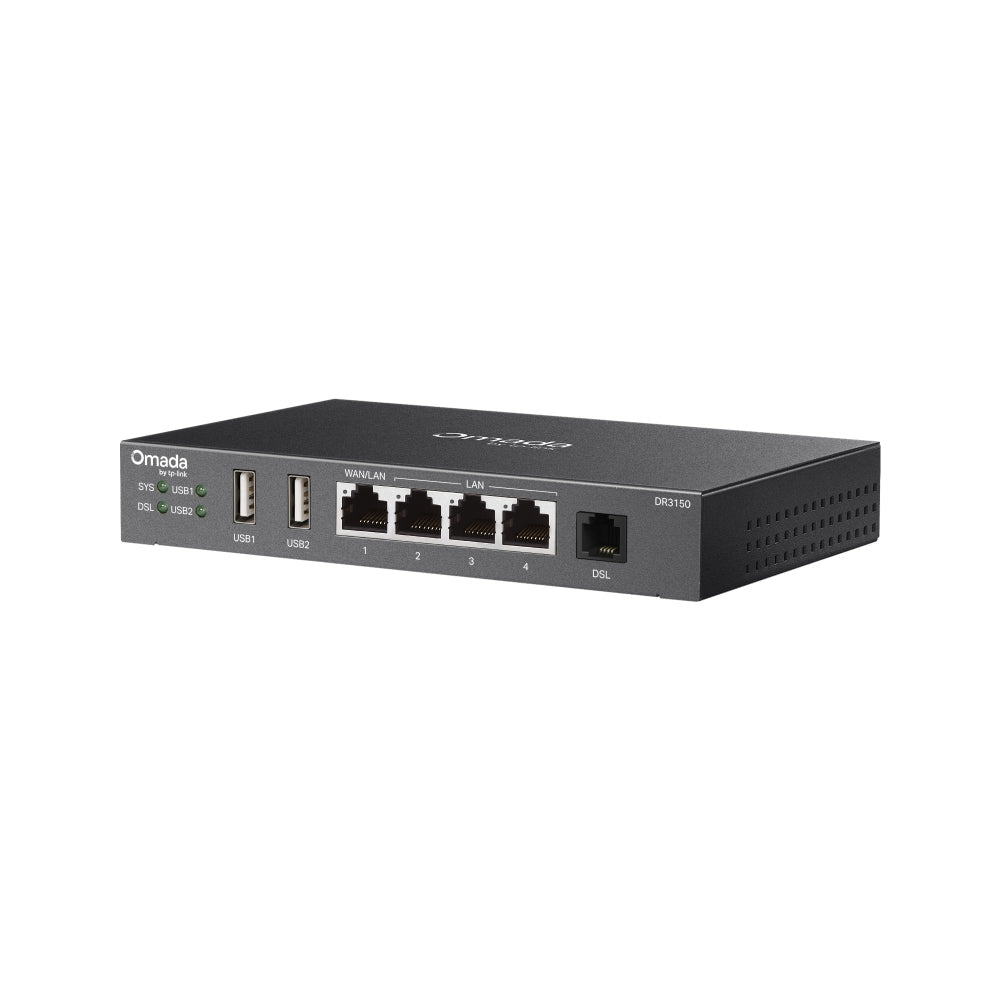

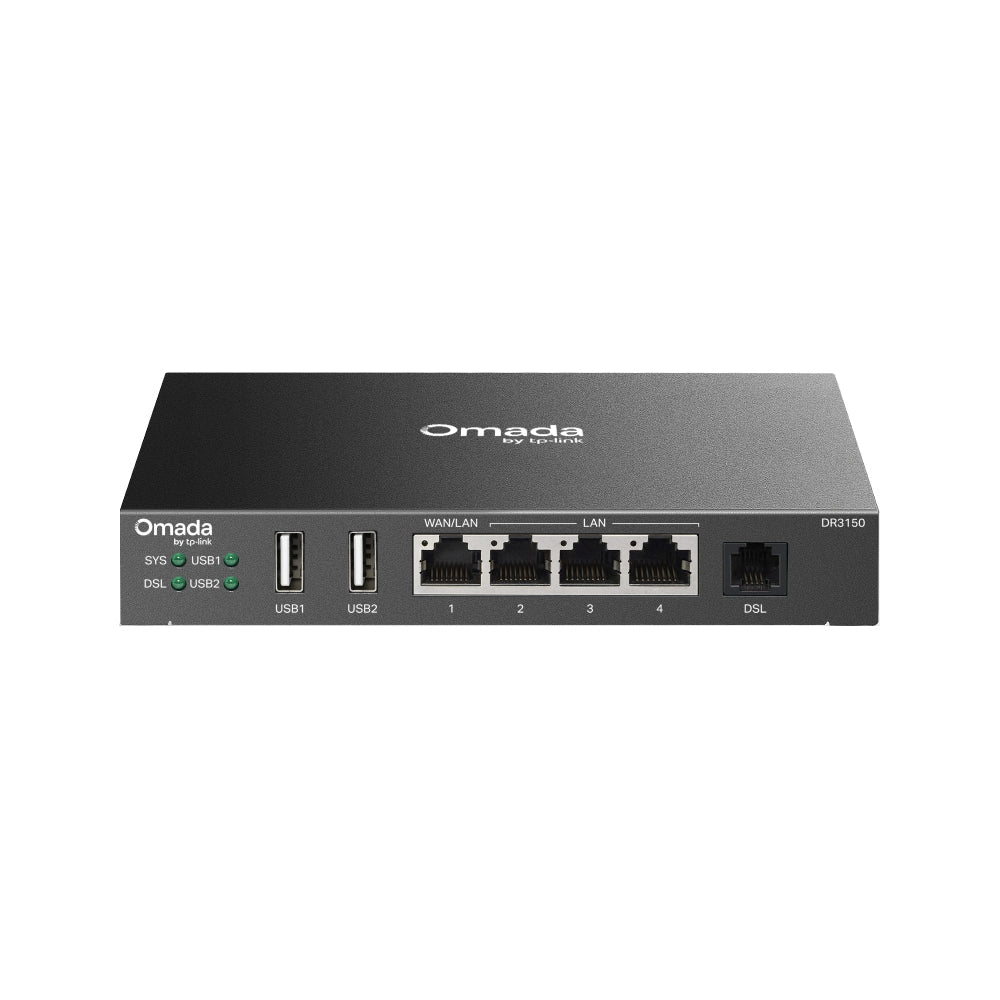

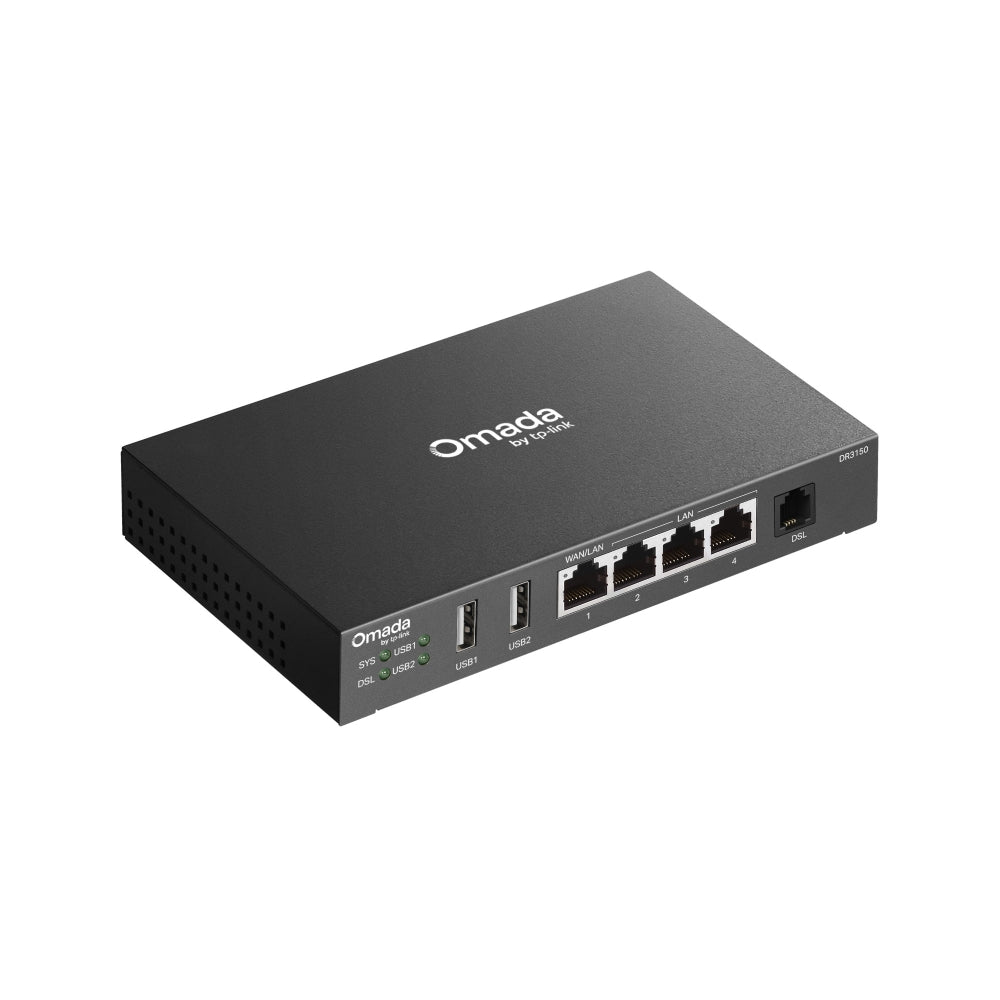

TP Link Omada Gigabit Desktop DSL Gateway

TP-LinkSKU: TL-DR3150

Description

SECURITY
Access Control	• Source/Destination IP Based ACL • Stateful ACL • IPv4/IPv6 ACL • National Based ACL • FQDN
DPI	• Deep Packet Inspection • Support 2466 type Applications
DNS Proxy	DNSSEC, DoH, DoT, and DNS Override
Filtering	• Web Group Filtering^§ • URL Filtering^# • Web Security^§
Attack Defense	• TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN
ARP Inspection	• Sending GARP Packets^§ • ARP Scanning^§ • IP-MAC Binding • ARP Detection

VPN
GRE	√ (Only in Standalone Mode)
IPsec VPN	• 20 IPSec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm • IPsec Failover • IKE v1/v2 • MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS)
PPTP VPN	• PPTP VPN Server • PPTP VPN Client (10)*** • 16 Tunnels • PPTP with MPPE Encryption
L2TP VPN	• L2TP VPN Server • L2TP VPN Client (10)*** • 16 Tunnels • L2TP over IPSec
OpenVPN	• OpenVPN Server • OpenVPN Client (10)*** • 50 OpenVPN Tunnels • "Certificate + Account" Mode • Full Mode
WireGuard VPN	√
SD-WAN	√ (Only in Controller Mode)

HARDWARE FEATURES
DSL Standards	• VDSL2: ITU G.993.2, ITU-T G.997.1 • VDSL2 Profile: 8a, 8b, 8c, 8d, 12a, 12b, 17a, 35b • ADSL2+: ITU-T G.992.5 • ADSL2: ITU-T G.992.3 • ADSL: ITU-T G.992.1(G.dmt), ITU-T G.992.2 (G.lite)
DSL Speed	Up to 350 Mbps
Standards and Protocols	IEEE 802.3, IEEE 802.3i, EEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP, LLDP
Compatibility	VDSL2/ADSL2+/ADSL2/ADSL
Interface	• 1× RJ11 Ports • 4× RJ45 Gigabit Ports (1× WAN/LAN, 3× LAN) • 2× USB 2.0 Ports ((Supports USB LTE dongle and USB Storage*)
Button	Reset Button
Power Supply	12V/2A external DC power adapter
Flash	128 MB NAND
DRAM	256 MB DDR
Dimensions ( W x D x H )	6.2 × 4.0 × 1.0 in (158 × 101 × 25 mm)

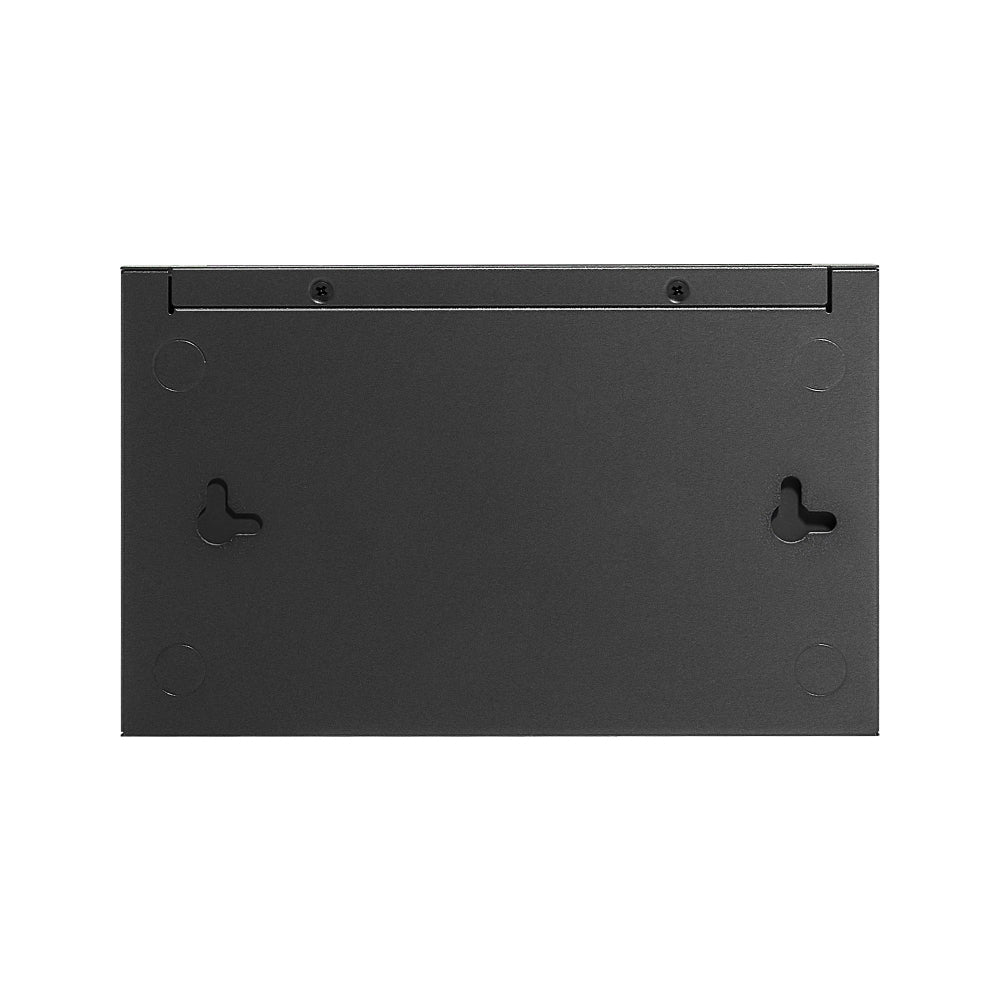

Mounting	Desktop/Wall Mount
Max. Power Consumption	• Power adapter not included: 13.44 W • Power adapter included: 15.12 W

PERFORMANCE
Concurrent Session	50,000
New Sessions /Second	2,500
NAT (Static IP)	• Upload: 945 Mbps • Download: 945 Mbps
NAT(DHCP)	• Upload: 945 Mbps • Download: 945 Mbps
NAT(PPPoE)	• Upload: 940 Mbps • Download:940 Mbps
NAT (L2TP)	• Upload: 703 Mbps • Download: 496 Mbps
NAT (PPTP)	• Upload: 703 Mbps • Download: 496 Mbps
66 Byte Packet Forwarding Rate	• Upload: 727,679 pps • Download: 598,214 pps
1,518 Byte Packet forwarding rate	• Upload: 76,147 pps • Download: 76,555 pps
IPsec VPN Throughput	• ESP-SHA1-AES256: 230 Mbps • ESP-SHA256-AES256: 233 Mbps • ESP-SHA384-AES256: 54 Mbps • ESP-SHA512-AES256: 34 Mbps
GRE	• Unencrypted: 623 Mbps • Encrypted: 205 Mbps
WireGuard VPN	66 Mbps
OpenVPN	15 Mbps
L2TP VPN Throughput	• Unencrypted: 433 Mbps • Encrypted: 175 Mbps
PPTP VPN Throughput	• Unencrypted: 511 Mbps • Encrypted: 44 Mbps
DPI Throughput	• TCP: 995 Mbps • UDP: 762 Mbps

Management Features
Omada App	Yes. Require the use of an Omada Controller.
Centralized Management	• Omada Central (Cloud-Based) • Omada Hardware Controller • Omada Software Controller
Cloud Access	Yes. Require the use of an Omada Controller.
Service	Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
Maintenance	• Web Management Interface • Remote Management • Export & Import Configuration • SNMP v1/v2c/v3 • Diagnostics (Ping & Traceroute) • NTP Synchronize^§ • Port Mirroring • CLI^§ • Syslog Support • TR-069 (data models of TR-098 and TR181 are supported)
Zero-Touch Provisioning	Yes. Require the use of an Omada Controller.
Management Features	• Automatic Device Discovery • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration

BASIC FUNCTIONS
LAN DNS	√
WAN Connection Type	• Static IP • Dynamic IP • PPPoE (supports MRU Configuration) • PPTP • L2TP
MAC Clone	Modify WAN/LAN MAC Address^‡
DHCP	• DHCP Server • DHCPv6 PD Server^§ • DHCP Options Customization • DHCP Address Reservation • Multi-IP Interfaces • Multi-Net DHCP • WAN DHCP 60
Stateful ACL	√
Quality of Service	√
Bridge VLAN	√
mDNS Repeater	√
IPv6	StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode
VLAN	802.1Q VLAN
IPTV	IGMP v2/v3 Proxy, Custom Mode, Bridge Mode

Advanced Features
Advanced Routing	• Static Routing • Policy Routing • RIP^§ • OSPF^§
Bandwidth Control	IP-Based Bandwidth Control
Load Balance	• Intelligent Load Balance • Application Optimized Routing • Link Backup(Timing, Failover) • Online Detection
NAT	• One-to-One NAT • Multi-Net NAT • Port Forwarding • Port Triggering^§ • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG • UPnP • Disable NAT
Session Limit	IP-Based Session Limit

AUTHENTICATION
Web Authentication	• No Authentication • Simple Password • Hotspot (Local User / Voucher^△ / SMS^△ / Radius^△) • External Radius Sever • External Portal Sever^△ • LDAP^§

OTHERS
Network Services Enabled by Default	Web Server Manage and configure device through web (HTTP/HTTPS) • Port: 80/443 Protocol: TCP _____________________________________________________ TDP Server Device discovery • Port: 20003 Protocol: UDP _____________________________________________________ VOIP Server Monitor SIP messages • Port: 5060 Protocol: UDP _____________________________________________________ DHCP Server Handle DHCP packets • Port: 67 Protocol: UDP _____________________________________________________ DNS Handle DNS packets • Port: 53 Protocol: TCP/UDP
Certification	CE, FCC, RoHS
Package Content	• DR3150 • Power Adapter • Ethernet Cable • Phone Cable • External Splitter • Mounting Feet • Quick Installation Guide
System Requirements	• Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11 • MAC OS, NetWare, UNIX or Linux
Environment	• Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F) • Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F) • Operating Humidity: 10% to 90% non-condensing • Storage Humidity: 5% to 90% non-condensing
