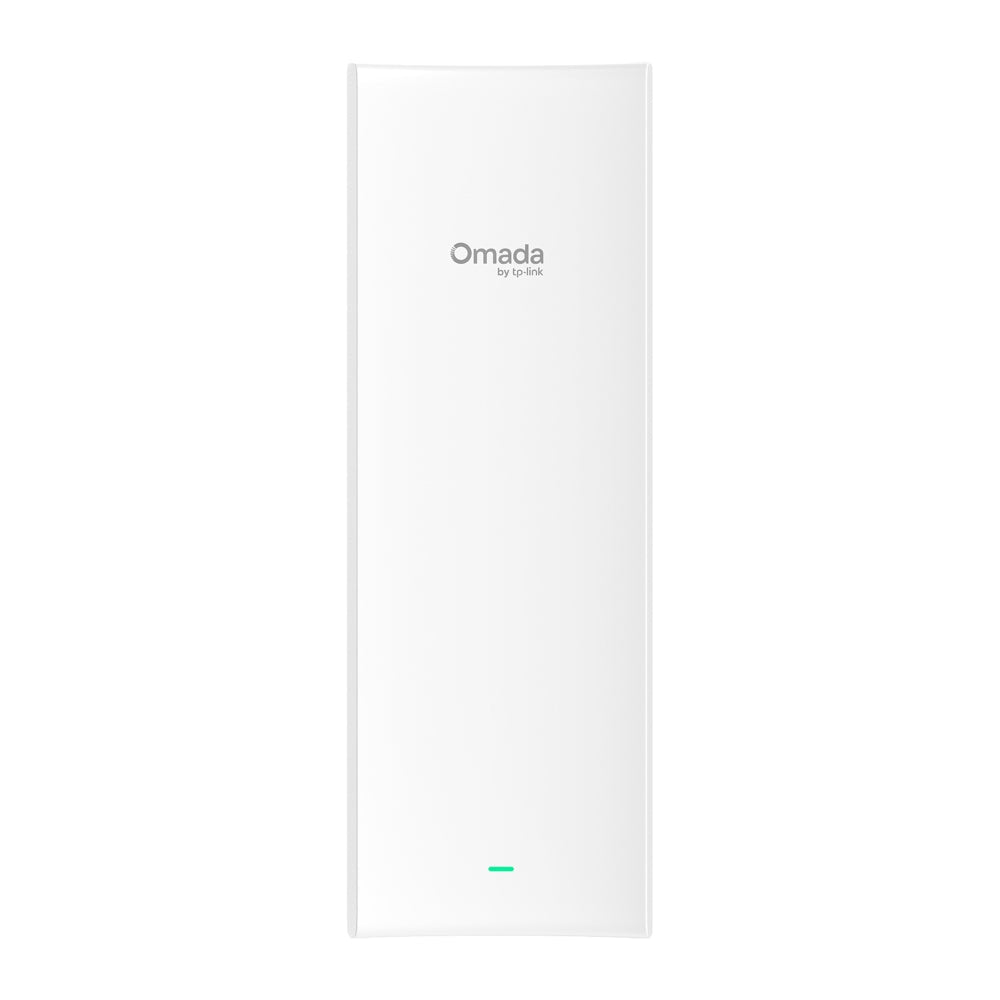

TP Link Omada Sector Bridge 5 Omada 5 GHz 867 Mbps Scalable Central Hub for Long-Range Indoor/Outdoor Connectivity

Roll over image to zoom in Click on image to zoom

TP Link Omada Sector Bridge 5 Omada 5 GHz 867 Mbps Scalable Central Hub for Long-Range Indoor/Outdoor Connectivity

Name: TP Link Omada Sector Bridge 5 Omada 5 GHz 867 Mbps Scalable Central Hub for Long-Range Indoor/Outdoor Connectivity
Brand: TP-Link
SKU: TL-SectorBridge5
Price: 329.0 NZD
Availability: OutOfStock

TP-LinkSKU: TL-SectorBridge5

Description

Sector Bridge 5

Omada 5 GHz 867 Mbps Scalable Central Hub for Long-Range Indoor/Outdoor Connectivity

Supports up to 32 Flex Bridges via TDMA: Enables scalable multipoint networks across multiple buildings or remote endpoints.
120° Wide Beamwidth for Multipoint Hub Deployment: Deliver extensive, high-quality wireless coverage for wide-area deployments.
3.1 mi (5 km) Long-Range 5 GHz Connectivity: Delivers dependable 867 Mbps speeds via powerful 16 dBi dual-polarised directional antennas.
DIP Switches for Simple Pairing: Reduces configuration and deployment complexity.

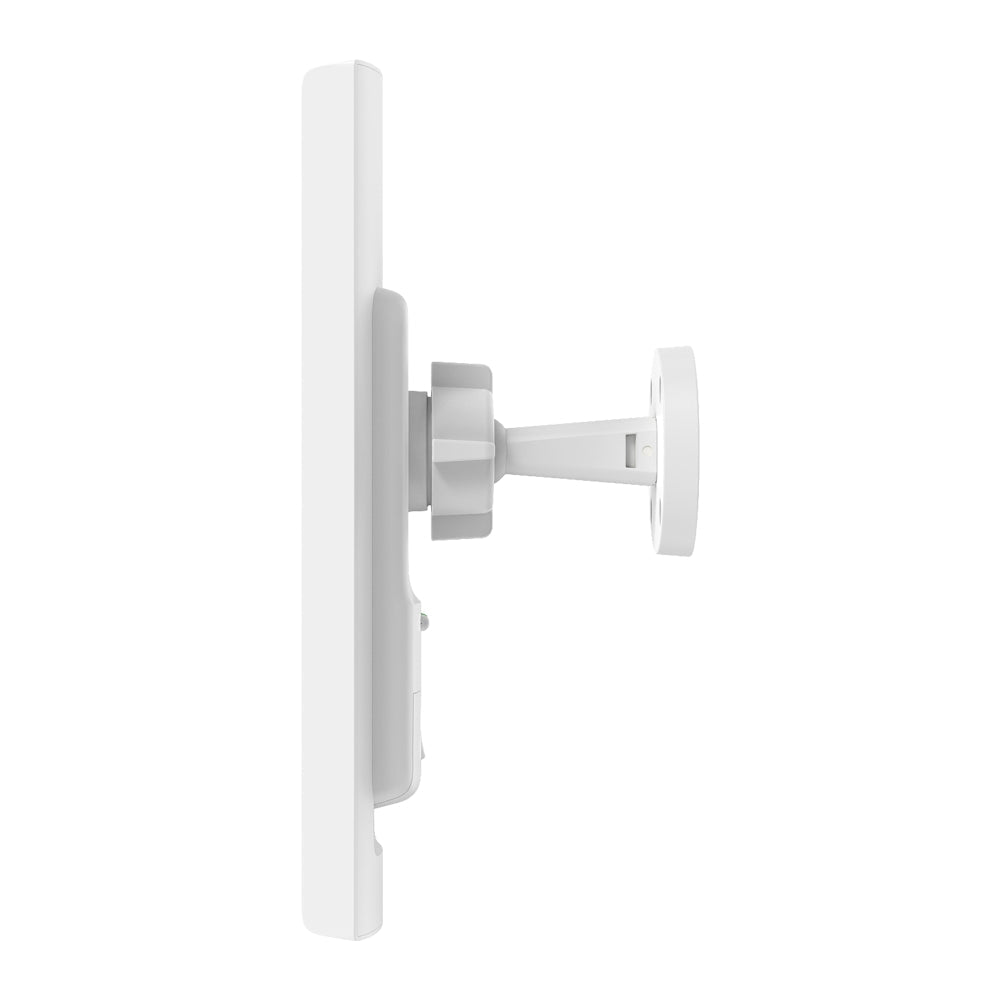

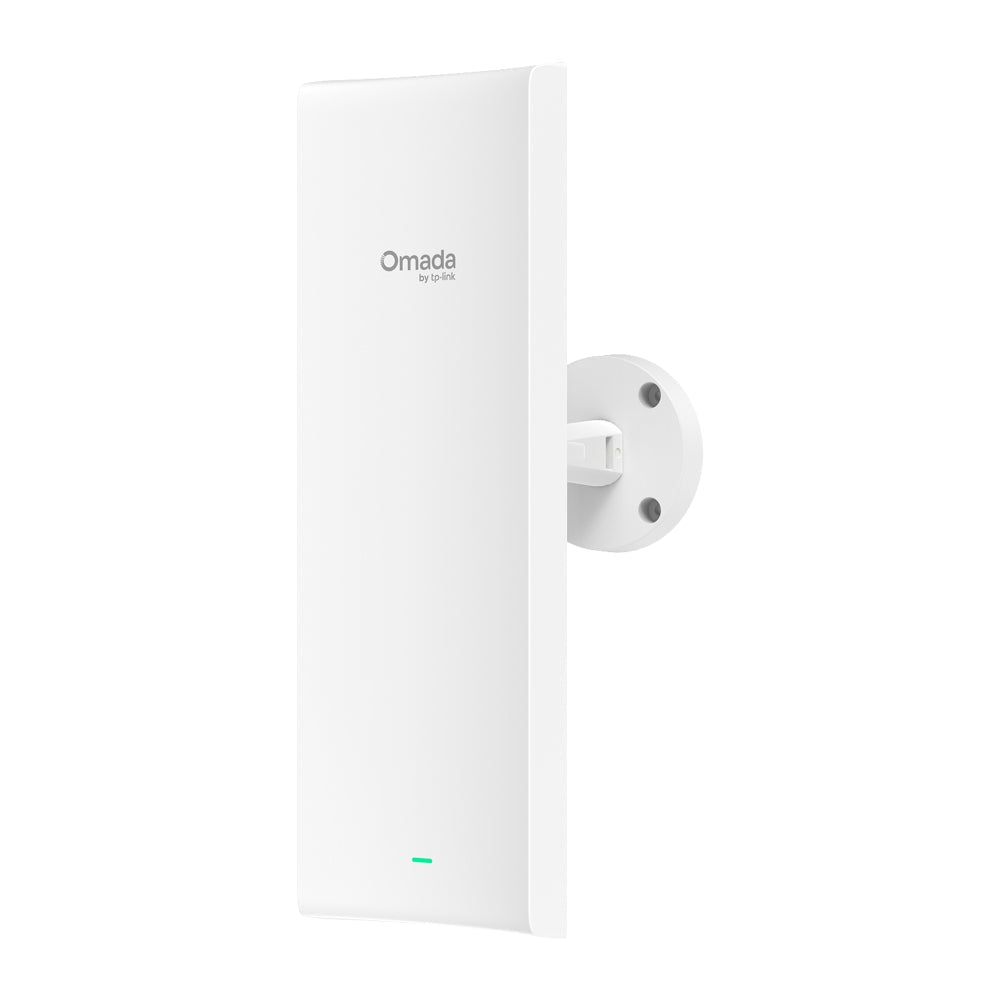

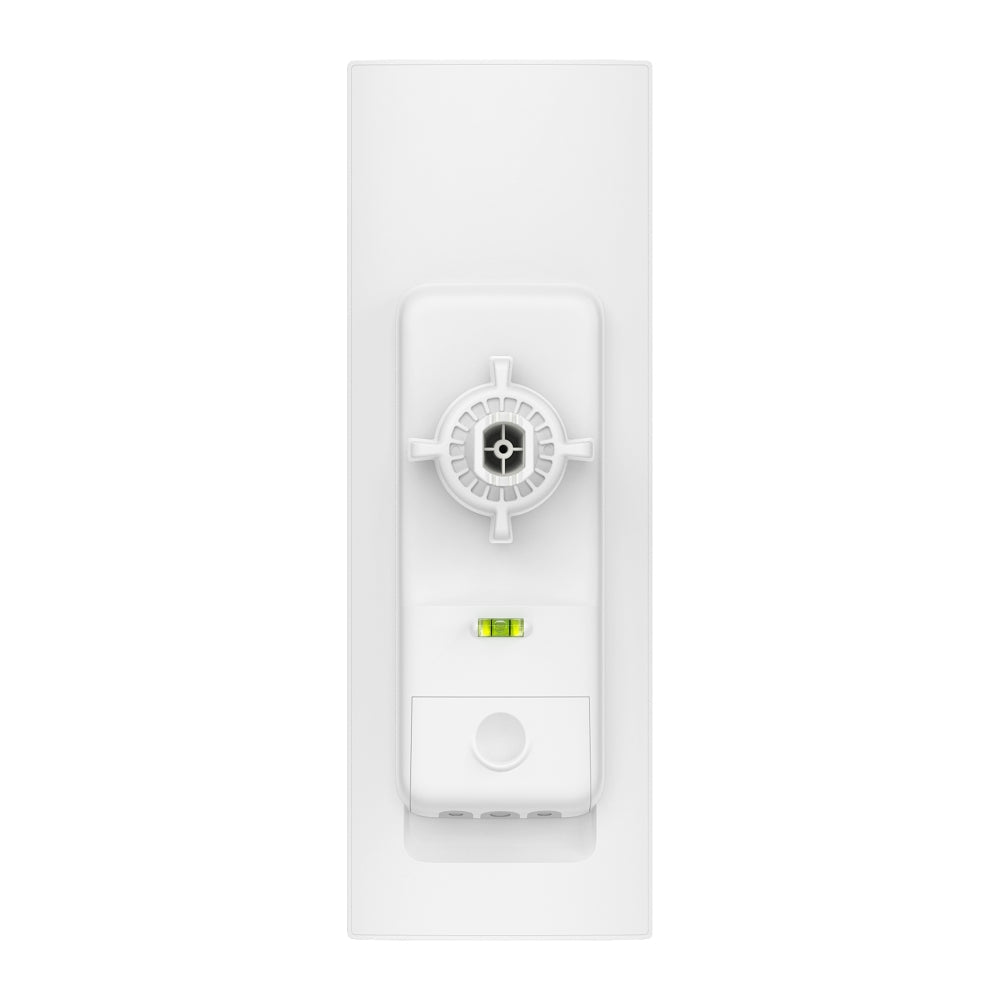

Easy & Versatile Installation: Supports wall or pole installations, with a built-in bubble level and a ball-joint mount for accurate adjustment.
Designed for Outdoor Durability & Reliability: Features an IP66 weatherproof enclosure, 6kV lightning protection, and an operating range of -40 °C to +70 °C.
App-Guided Alignment: Visual alignment guidance and instant speed testing simplify long distance setups and verify performance.
Flexible Power Supply: Supports 802.3af PoE, 24V Passive PoE (adapter included), and 12V DC.
Remote Monitoring with Standalone & SDN Management: Standalone mode or Omada SDN mode enables remote centralised management via Web UI or app.

HARDWARE FEATURES

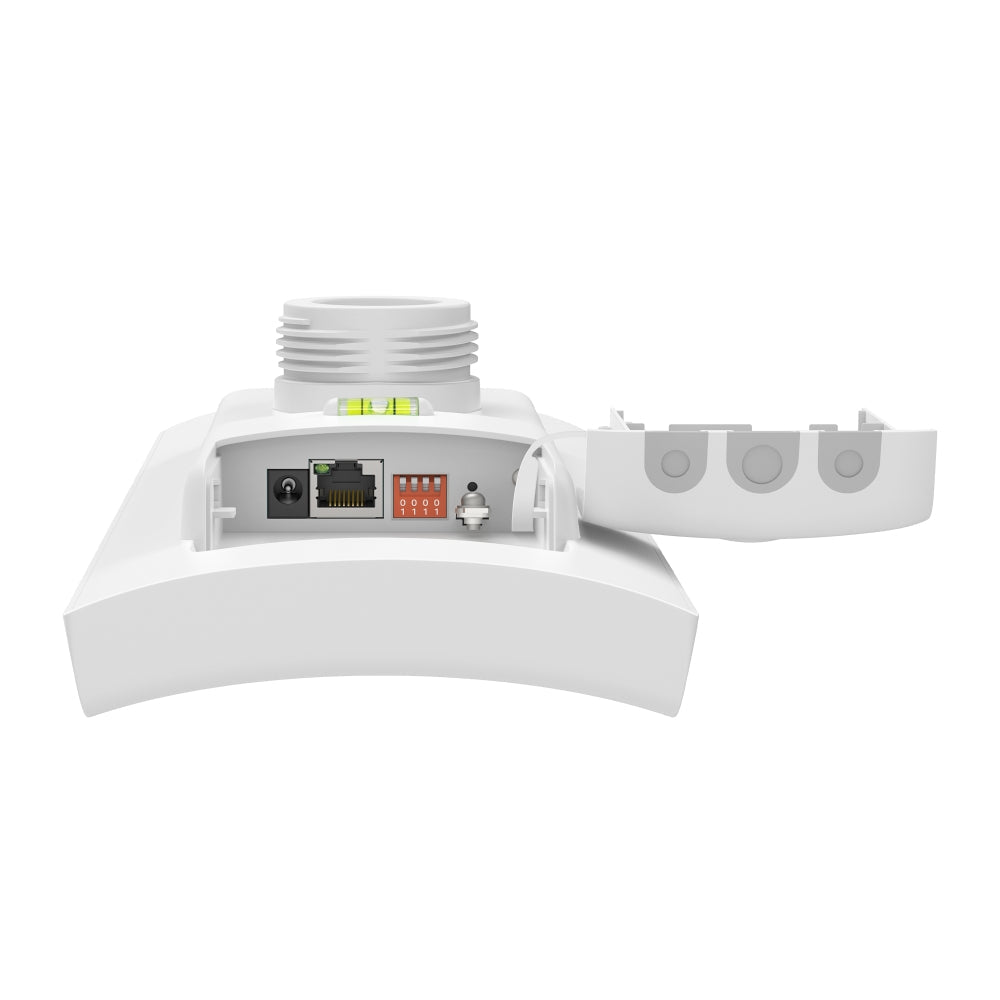

Interface	1× Gigabit Ethernet Port
Button	Reset
DIP Switch	Pairing Code Switch
Power Supply	• 12V DC/1A • 802.3af PoE • 24V Passive PoE (Passive PoE Adapter Included - For Dry Indoor Use Only)
Max. Power Consumption	DC: 9W PoE: 10.5W
Dimensions ( W x D x H )	14.1 × 4.9 × 2.8 in (358.5 × 124.6 × 70.5 mm)
Antenna	• 2.4 GHz: 1 × 4 dBi (peak gain), internal omnidirectional antennas • 5 GHz: 2 × 16 dBi (peak gain), internal directional antennas • Beamwidth: Horizontal 120°, Vertical 13°
Weatherproof Enclosure	IP66
Mounting	Pole and wall mounting (Kits included)

Management Features
Omada App	Yes
Restore & Backup	Yes
Firmware update via Web	Yes
NTP	Yes
Centralized Management	• Omada Central (Cloud-Based) • Omada Hardware Controller • Omada Software Controller
Cloud Access	Yes. Require the use of an Omada Controller.
Email Alerts	Yes
LED ON/OFF Control	Yes
SNMP	Yes
SSH	Yes
Web-based Management	Yes
Zero-Touch Provisioning	Yes

WIRELESS FEATURES
PtP	Yes
PtMP	32 Maximum
Transmission Distance	3.1 mi (5,000 m)
Wireless Standards	IEEE 802.11a/b/g/n/ac
Frequency	• 2.4 GHz (Device Management Only) • 5 GHz
Signal Rate	5 GHz: Up to 867 Mbps
Wireless Functions	• MU-MIMO: 5G 2x2 MU-MIMO DL • Wireless Statistics • Reboot Schedule • RADIUS Accounting • Static IP/Dynamic IP • Rate Limit • Enable/Disable Wireless Radio • Enable/Disable SSID Broadcast
Wireless Security	• VLAN • Rogue AP Detection • WPA/WPA2
Transmission Power	• CE: 6-23 dBm (5 GHz, U-NII-1 & U-NII-2A, EIRP) 6-30 dBm (5 GHz, U-NII-2C, EIRP) • FCC: 4-23 dBm (5 GHz, U-NII-1) 4-25 dBm (5 GHz, U-NII-3)

OTHERS
Certification	CE, FCC
Package Content	• Sector Bridge 5 • Installation Guide • Mounting Kit • Passive PoE Adapter • Power Cord
Lightning Protection	• Air discharge: ±8kV • Contact discharge: ±4kV • Common mode 10/700: ±6kV
Environment	• Operating Temperature: -40 °C–70 °C (-40 °F–158 °F); • Storage Temperature: -40 °C–70 °C (-40 °F–158 °F); • Operating Humidity: 10%–90% non-condensing; • Storage Humidity: 5%–90% non-condensing
