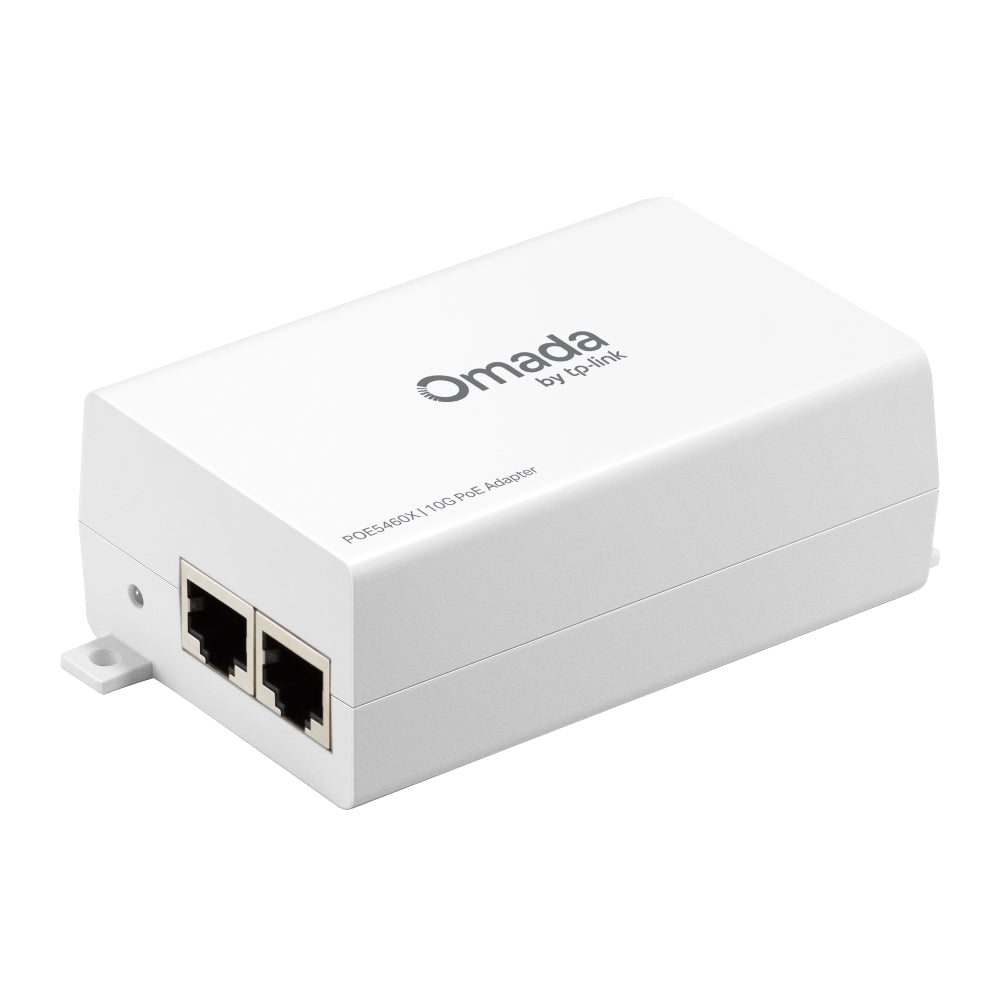

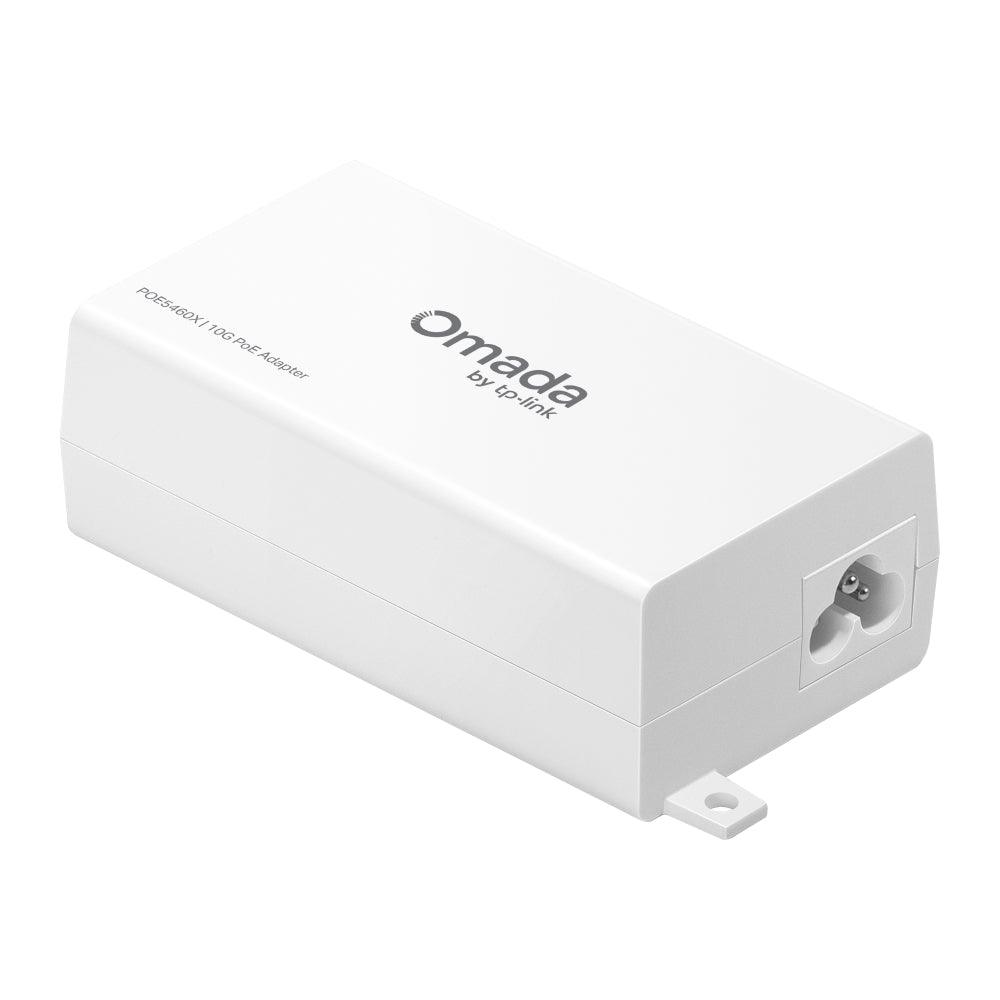

Omada 10G Passive PoE Adapter
• 54V passive PoE supported
• Convenient wall-mount design
• Auto-determine the necessary power requirements
• 1x 10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps/10 Mbps RJ45
• Maximum power up to 60W
• Plug-and-Play, requires no configuration
What This Product Does
The passive PoE adapter POE5460X can be used to simultaneously supply power and transmit data to a passive PoE device.
| HARDWARE FEATURES |
| Interface |

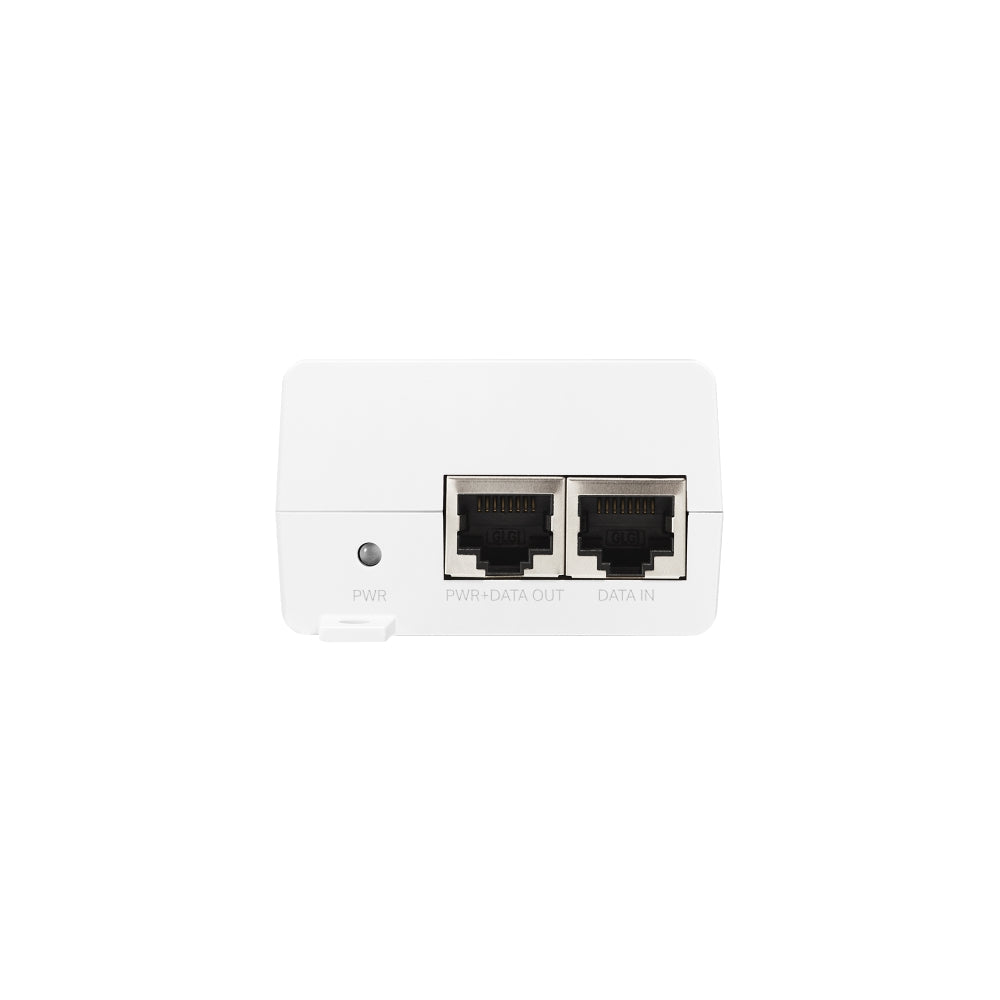

• 1x 10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps/10 Mbps RJ45 DATA IN port
• 1x 10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps/10 Mbps RJ45 PWR+DATA OUT port |
| Power Supply |
54V/1.11A |
| LED |
PWR |
| Dimensions ( W x D x H ) |
125 × 59.4 ×36.8 mm (4.92 × 2.34 × 1.45 in) |
| OTHERS |
| Certification |
CE, FCC, BSMI, KC |
| Package Content |
• POE5460X
• Power Cord
• Installation Guide |
| Environment |
• Operating Temperature: -5℃~40℃ (23℉~104℉)
• Storage Temperature: -40℃~70℃ (-40℉~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing |
