Omada 26-Port 10G Stackable L3 Managed Aggregation Switch with 6 25G Slots
- 26× 10G SFP+ slots and 6× 25G SFP28 slots
- 820 Gbps switching capacity
- Physical Stacking for built-in redundancy and performance
- L3 features: RIP, OSPF, ECMP, VRRP, PIM-DM, DHCP Server/Relay
- Security Strategies: ACL, Port Security, DoS Defend, 802.1X
- Highly Available with two field-replaceable power supplies*, VRRP, and ERPS
- Centralized cloud management via the Omada SDN controller
- Standalone management via web, CLI, SNMP, and RMON
-
What This Product Does
The Omada SX6632YF is a true L3 managed switch with full fiber ports that offers L3 routing, swift 25 Gbps wired speed, stacking, and redundant power supplies, catering to convergence layer demands. It comes with 6× 25 Gbps SFP28 slots, 26× 10 Gbps SFP+ slots, and physical stacking. Integrated with robust security and comprehensive management features, this switch ensures reliable performance for SMB, enterprise, and ISP networks.
| HARDWARE FEATURES |

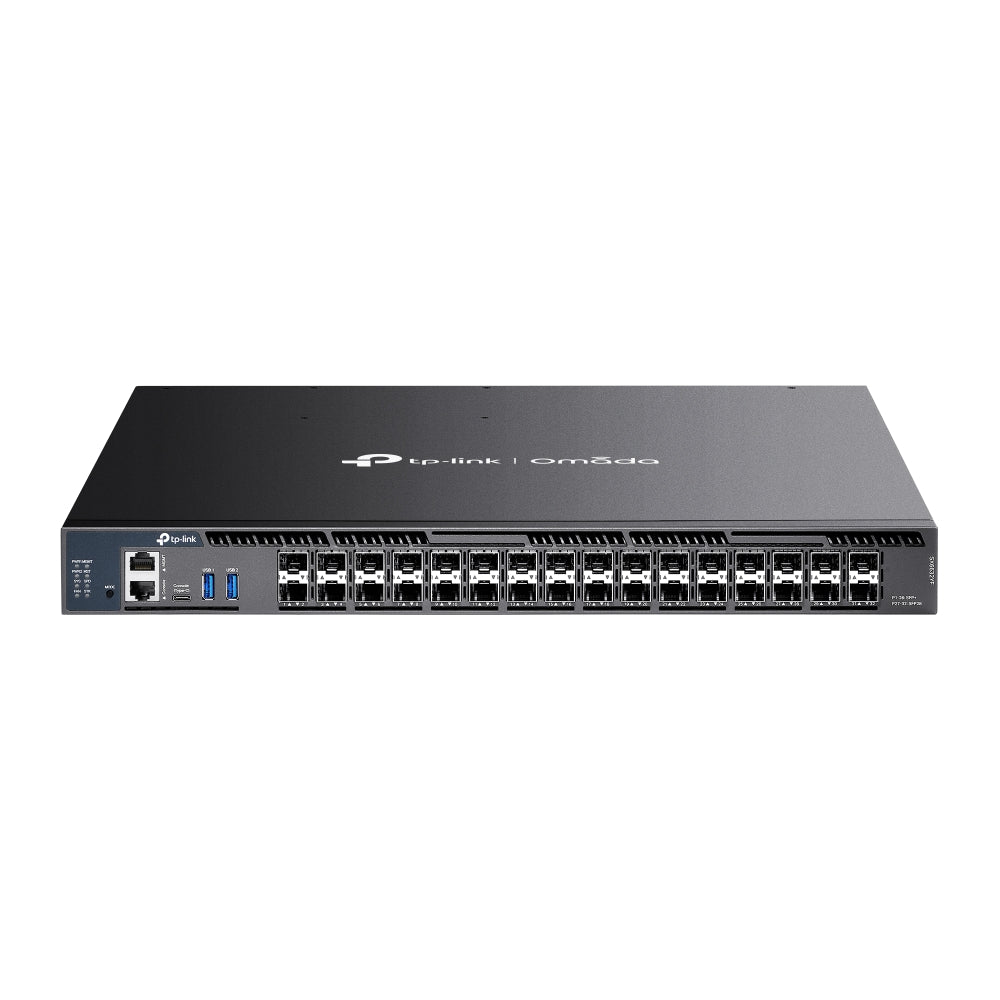

| Interface |
• 6× 10/25G SFP28 Slots
• 26× 10G SFP+ Slots
• 2× USB 3.0 Ports
• 1× RJ45 Console Port
• 1× USB Type C Console Port
• 1× RJ45 Management Port |
| Fan Quantity |

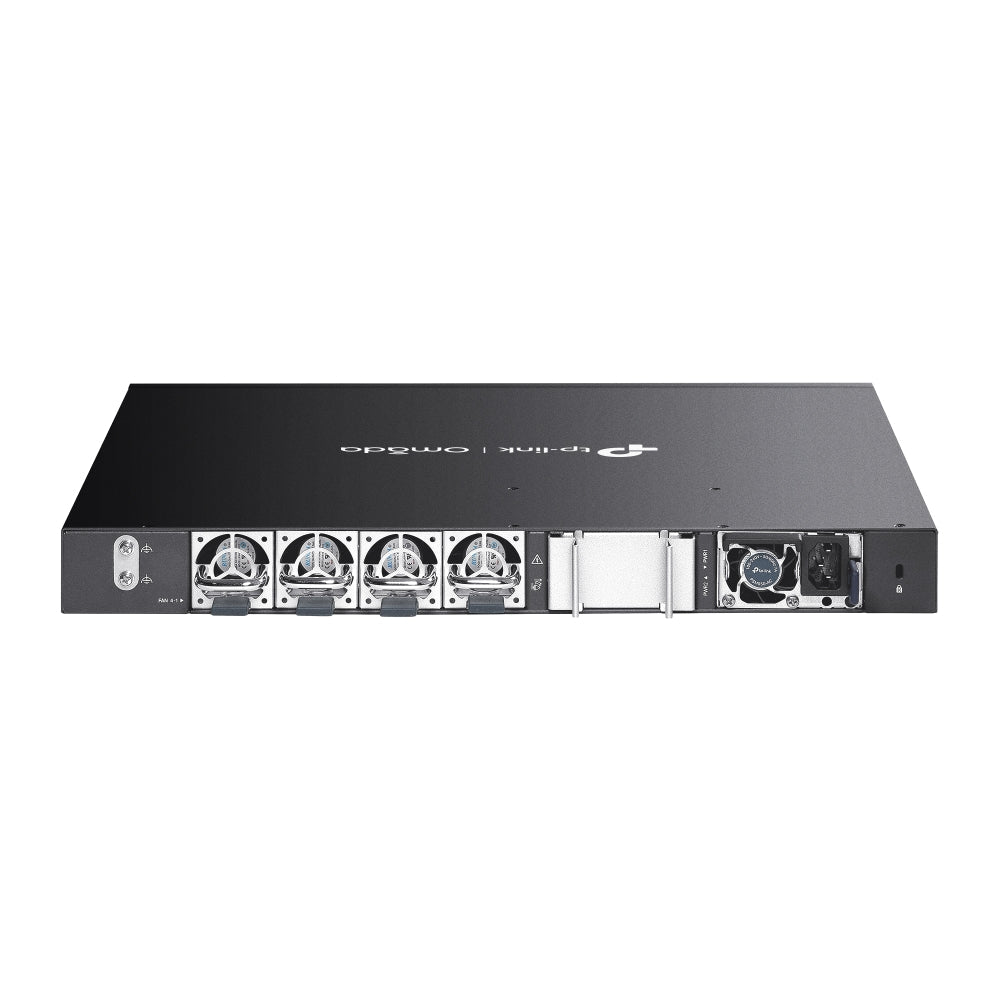

Four field-replaceable and hot-swappable fans |
| Physical Security Lock |
√ |
| Power Supply |
Two field-replaceable and hot-swappable redundant power supplies (100–240 VAC, 50/60 Hz)
*Ships with one PSM550-AC module by default, and another field-replaceable redundant power supply requires a separate purchase. |
| Power Consumption |
86.7 W (110 V/60 Hz) |
| Dimensions ( W x D x H ) |
17.3 × 15.0 × 1.7 in (440 × 380 × 44 mm) |
| Mounting |
Rack Mountable |
| Max Heat Dissipation |
295.85 BTU/hr (110 V/60 Hz) |
| PERFORMANCE |
| Switching Capacity |
820 Gbps |
| Stacking |
• Stacking Number: 8
• Stacking Port: 25G SFP28
• Stack Bandwidth: Up to 300 Gbps (6 stack ports) |
| Packet Forwarding Rate |
610.1 Mpps |
| MAC Address Table |
128 K |
| Packet Buffer Memory |
8 MB |
| Jumbo Frame |
9 KB |
| SOFTWARE FEATURES |
| Quality of Service |
• Class of Service
- 8 Queues of Priority
- Port Priority
- IEEE 802.1p Priority
- DSCP Priority
- Queue Min-Bandwidth
- Schedule Mode (SP, WRR, SP+WRR)
• Bandwidth Control
- Rate Limit
- Strom Control
• Voice VLAN
• User-Defined OUI
|
| L3 Features |
• Routing IP Interfaces
- Static Routing
- Host Route Table
- RIP v1/v2
- RIPng
- OSPFv2/v3
- VRRP
- ECMP
- ARP Proxy
• DHCP
- DHCP Server
- DHCP Relay
- DHCPv6 Relay
- DHCP Snooping
- DHCPv6 Snooping
• Multicast
- Multicast Table
- IGMP v1/v2/v3
- Static Multicast Routing
|
| L2 and L2+ Features |
• Switching
- Port Mirroring（SPAN）
- RSPAN
- Loopback Detection
- Traffic Monitor
• Trunking
- Static LAG
- LACP 802.3ad
• Mac Address
- MAC Address Table
- Static MAC
- Dynamic MAC Address
- Filtering MAC Address
- MAC Flapping
• STP
- STP 802.1d
- RSTP 802.1w
- MSTP 802.1s
- Loop/Root/TC Protect
- BPDU Protect/Filtering
• ERPS
• Multicast
- IGMP Snooping
- MLD Snooping
- L2 Multicast Table
- Fast Leave
- Multicast VLAN Registration (MVR)
- Static Multicast IP
- Multicast Filtering
|
| Advanced Features |
• Automatic Device Discovery†
• Batch Configuration†
• Batch Firmware Upgrading†
• Intelligent Network Monitoring†
• Abnormal Event Warnings†
• Unified Configuration†
• Reboot Schedule†
ISP Features:
• 802.3ah Ethernet Link OAM
• L2PT (Layer 2 Protocol Tunneling)
• Device Link Detect Protocol (DLDP)
• DDM
• sFlow |
| VLAN |
• IEEE 802.1q Tag VLAN
• MAC VLAN
• Protocol VLAN
• VLAN VPN(QinQ)
• Private VLAN
• GARP/GVRP
• Voice VLAN
• Multicast VLAN
• Management VLAN
|
| Security |
• Access Security
- Port/MAC/IP-based Access Control
- SSL
- SSH
• Port Security
• Port Isolation
• CPU-Deffend
• Time Range
- Time Range Defination
- Periodic Time Range
- Absolute Time Range
- Time Holiday
• ACL
- Entries
- L2/L3/L4 ACL
- ACL Action
- ACL over VLAN
- ACL over Port
• IP-MAC Binding
- IP+MAC+PORT+VID Binding
- Manual Binding
- ARP Scanning
- DHCP Filter
- DHCPv6 Filter
- DHCP Option 82
• ARP Inspection (Dynamic ARP Inspection)
• IP Source Guard
• IPv6 Source Guard
• ND Neighbor Discovery/ ND Snooping/ ND Filtering
• DoS Defend
• Authentication, Authorization & Accounting (AAA)
- 802.1X Port Authentication
- RADIUS Authentication
- RADIUS Accounting
- TACACS+ Authentication |
| MANAGEMENT |
| Omada App |
Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management |
• Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller |
| Cloud Access |
Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning |
Yes. Requiring the use of Omada Cloud-Based Controller. |
| Management Features |
• Web-based GUI
• Command Line Interface (CLI) through console port, telnet
• SNMPv1/v2c/v3
- Trap/Inform
- RMON (1, 2, 3, 9 groups)
• SDM Template
• DHCP/BOOTP Client
• 802.1ab LLDP/LLDP-MED
• DHCP Auto Install
• Dual Image, Dual Configuration
• CPU Monitoring
• Cable Diagnostics
• Password Recovery
• SNTP
• System Log |
| OTHERS |
| Package Contents |
• SX6632YF Switch
• Power Cord
• Quick Installation Guide
• Rackmount Kit
• Rubber Feet |
| System Requirements |
Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux. |
| Environment |
• Operating Temperature:
-5 °C to 50 °C (23 °F to 122 °F) @ 300 meters
-5 °C to 45 °C (23 °F to 113 °F) @ 2,000 meters
-5 °C to 40 °C (23 °F to 104 °F) @ 3,000 meters
• Storage Temperature: -40 °C to 70 ℃ (-40 ℉ to 158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing |
