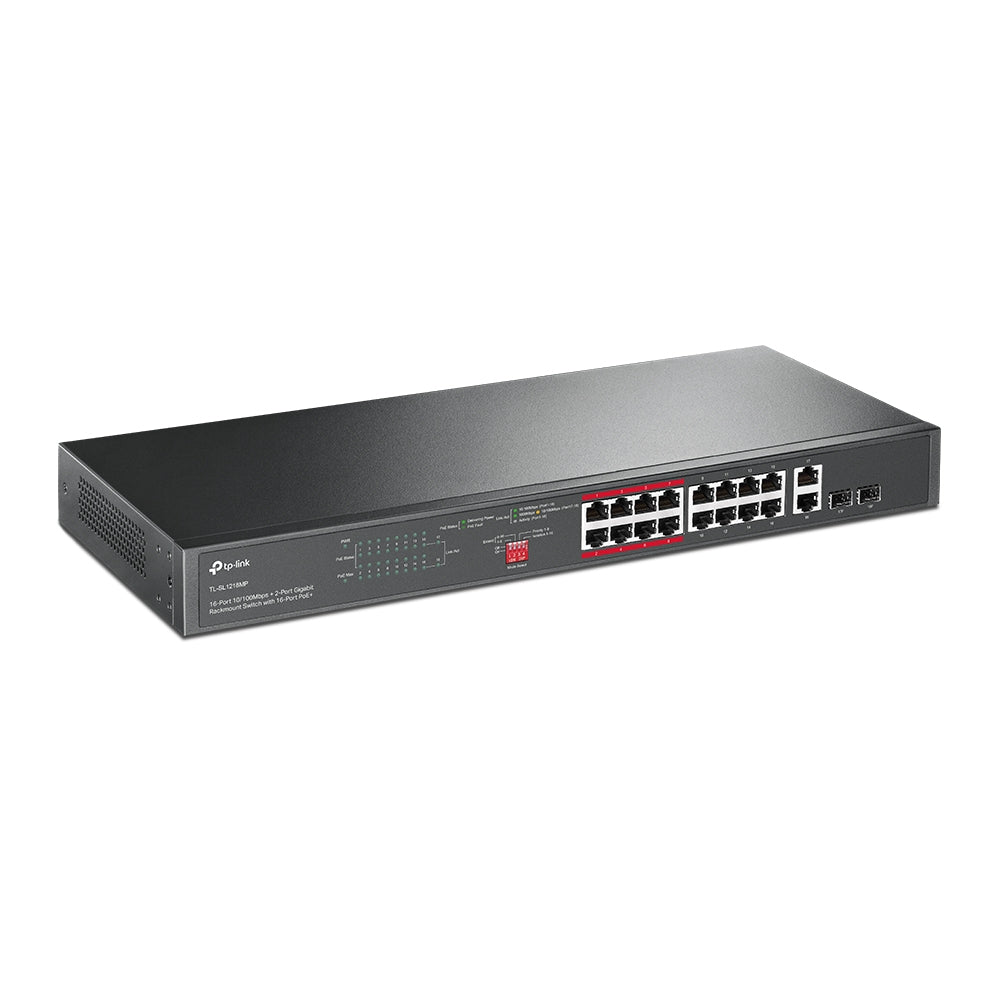

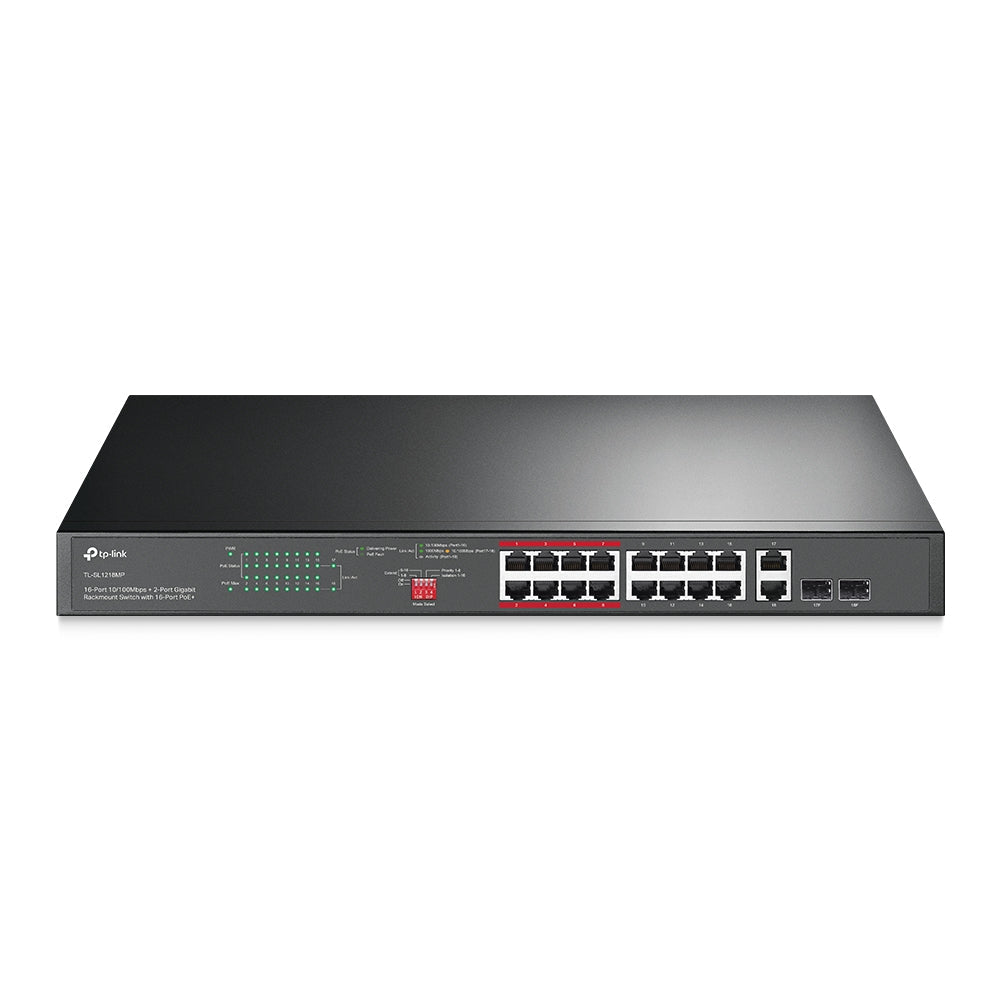

16-Port 10/100 Mbps + 2-Port Gigabit Rackmount Switch with 16-Port PoE+
- 16× PoE+ 10/100 Mbps RJ45 ports, 2× Gigabit RJ45 ports, and 2× combo Gigabit SFP slots.
- High PoE power budget with up to 30 W for each PoE port and 250 W for all PoE ports.
- Up to 250 m data and power transmission under extend mode specially designed for surveillance system.

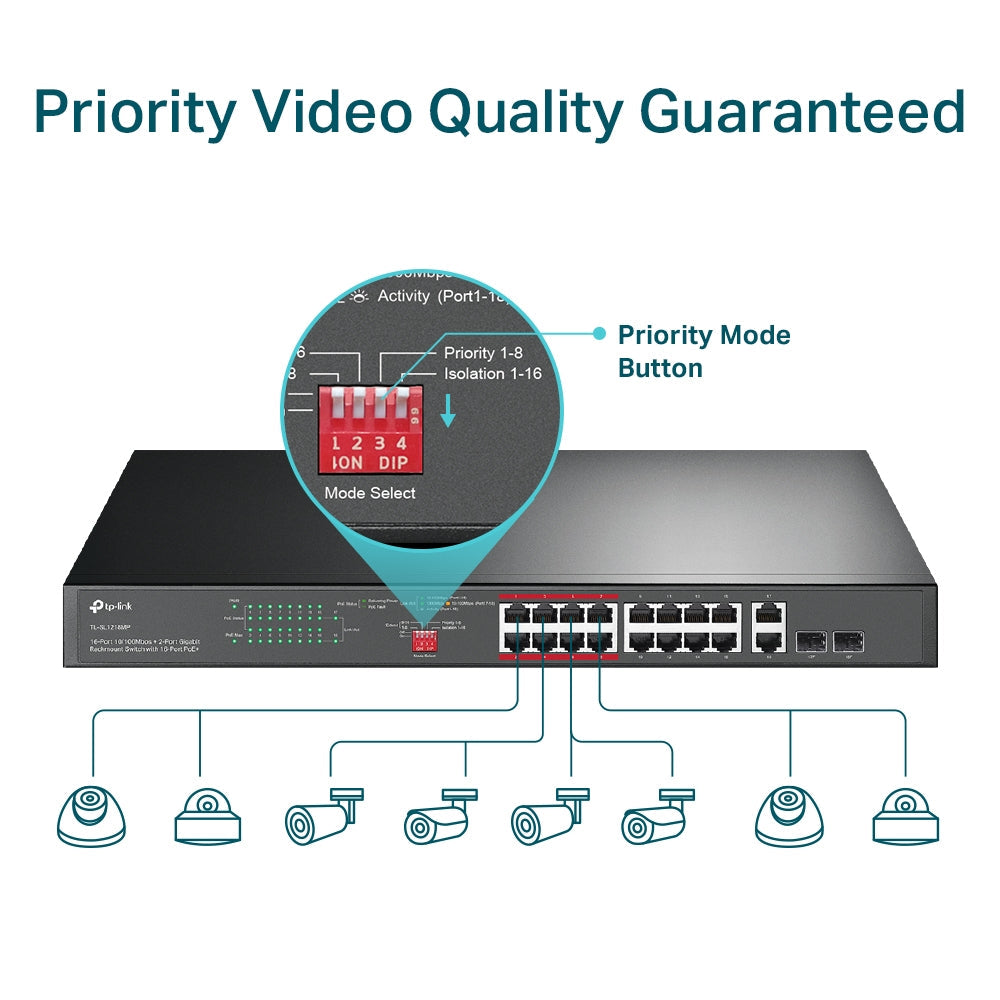

- Priority mode for ports 1–8 to guarantees the quality of sensitive applications like video monitor.
- Isolation Mode allows one-click client traffic separation for higher security and performance.

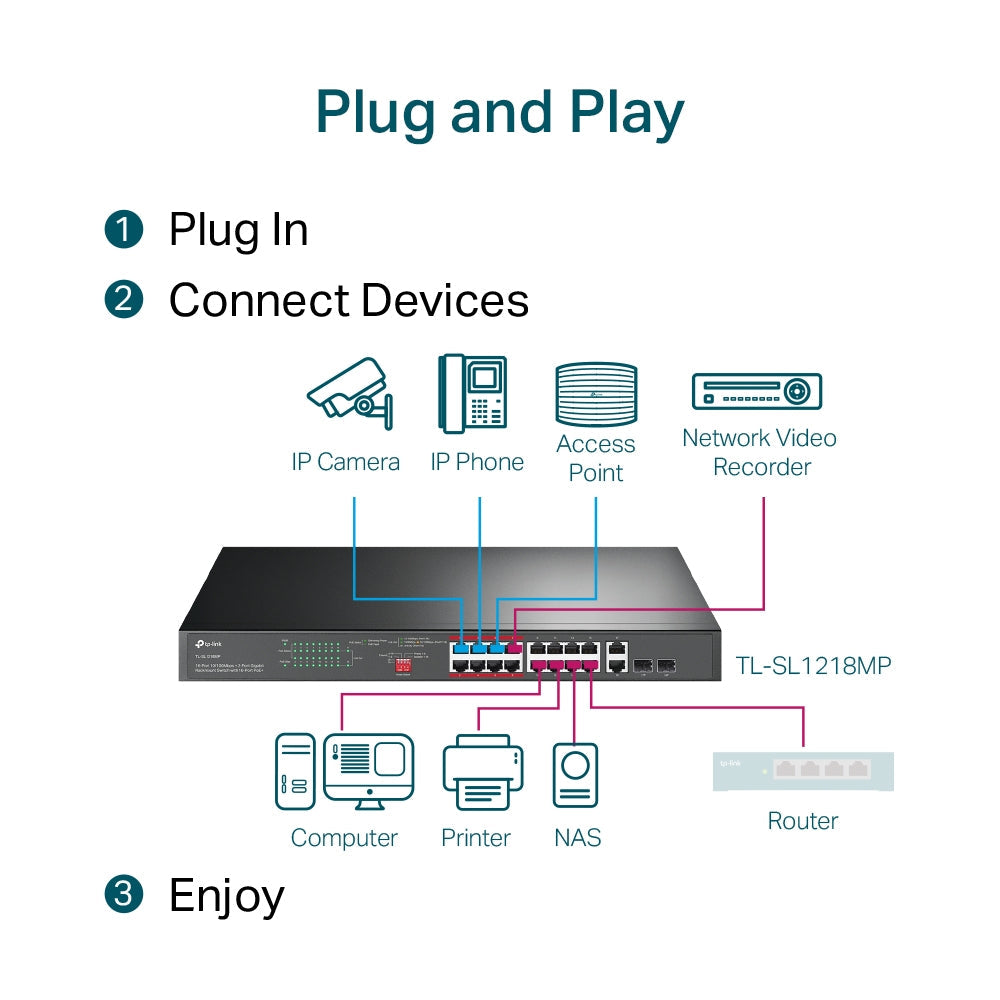

- Easy to use, with no configuration and installation needed.

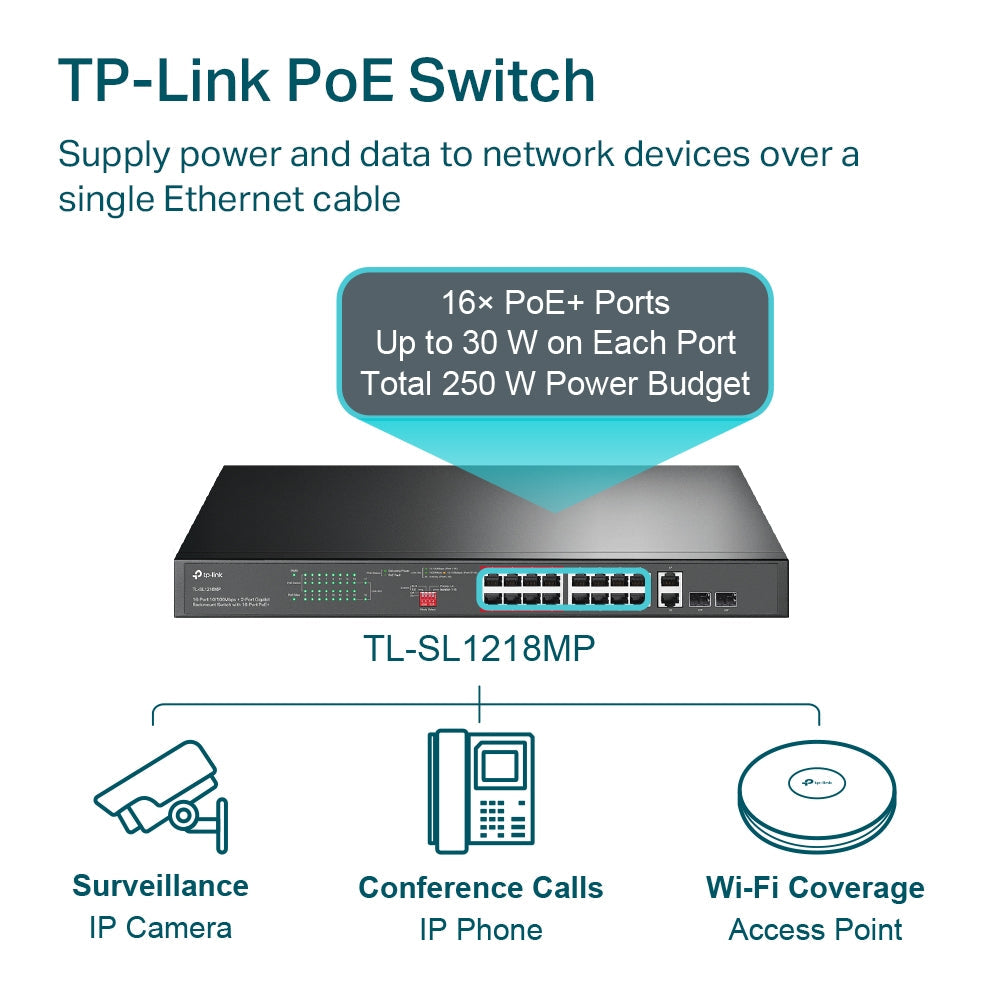

Dedicated 16-Port PoE+ Switch (250 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget* for the 16× PoE+ ports makes it has wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.

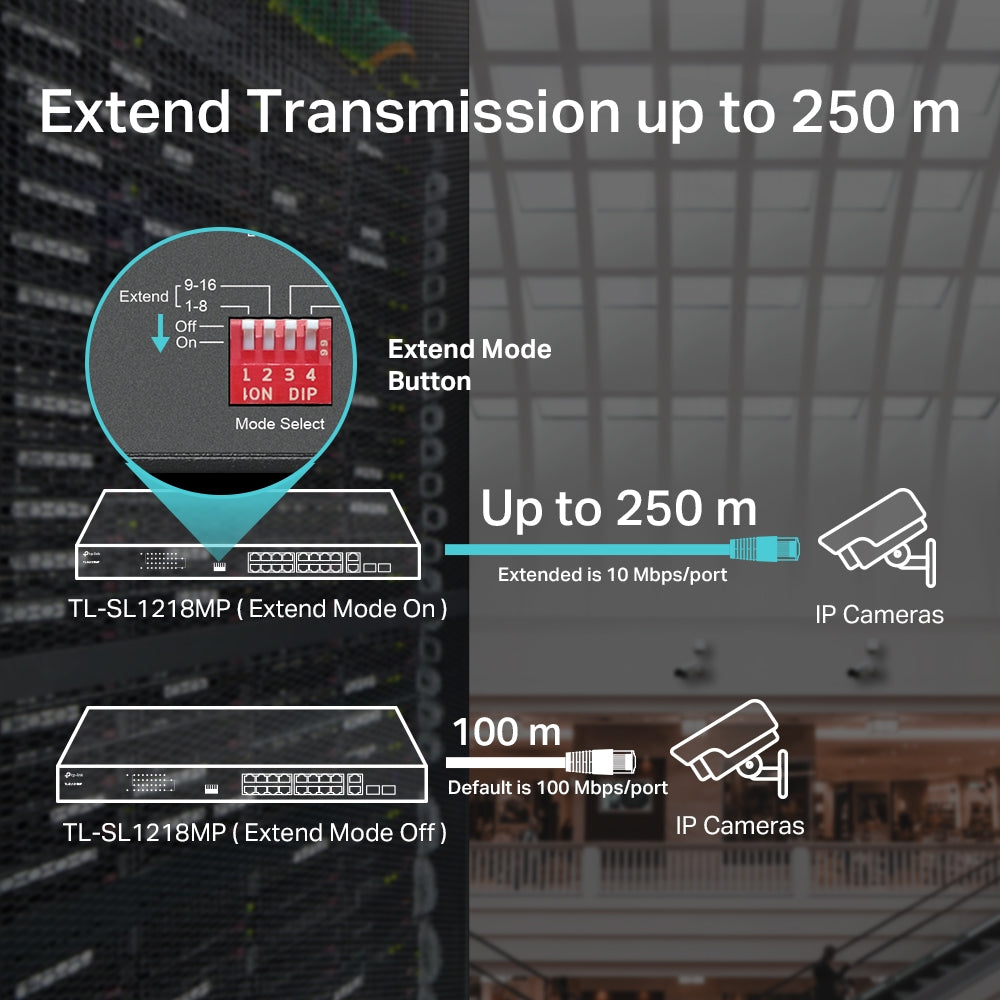

Ideal for IP Surveillance—Up to 250 m Transmission
With extend mode, the PoE transmission distance reaches up to 250 m—perfect for IP Camera deployment in large areas. The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.
|
HARDWARE FEATURES
|
| Interface |
• 16 PoE+ 10/100 Mbps RJ45 Ports
• 2× 10/100/1000 Mbps RJ45 Ports
• 2× Combo Gigabit SFP Slots |
| Network Media |
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-X MMF, SMF |

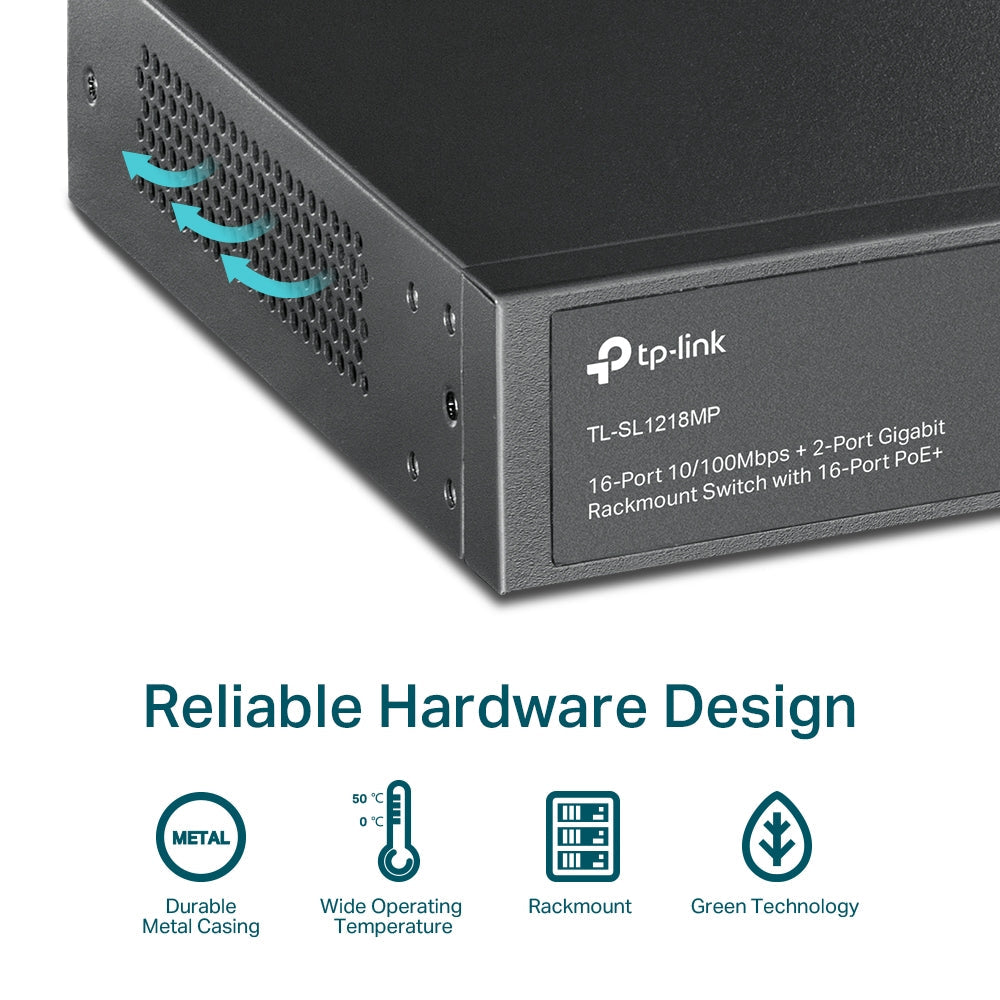

| Fan Quantity |
2 Fans |
| Physical Security Lock |
Yes |

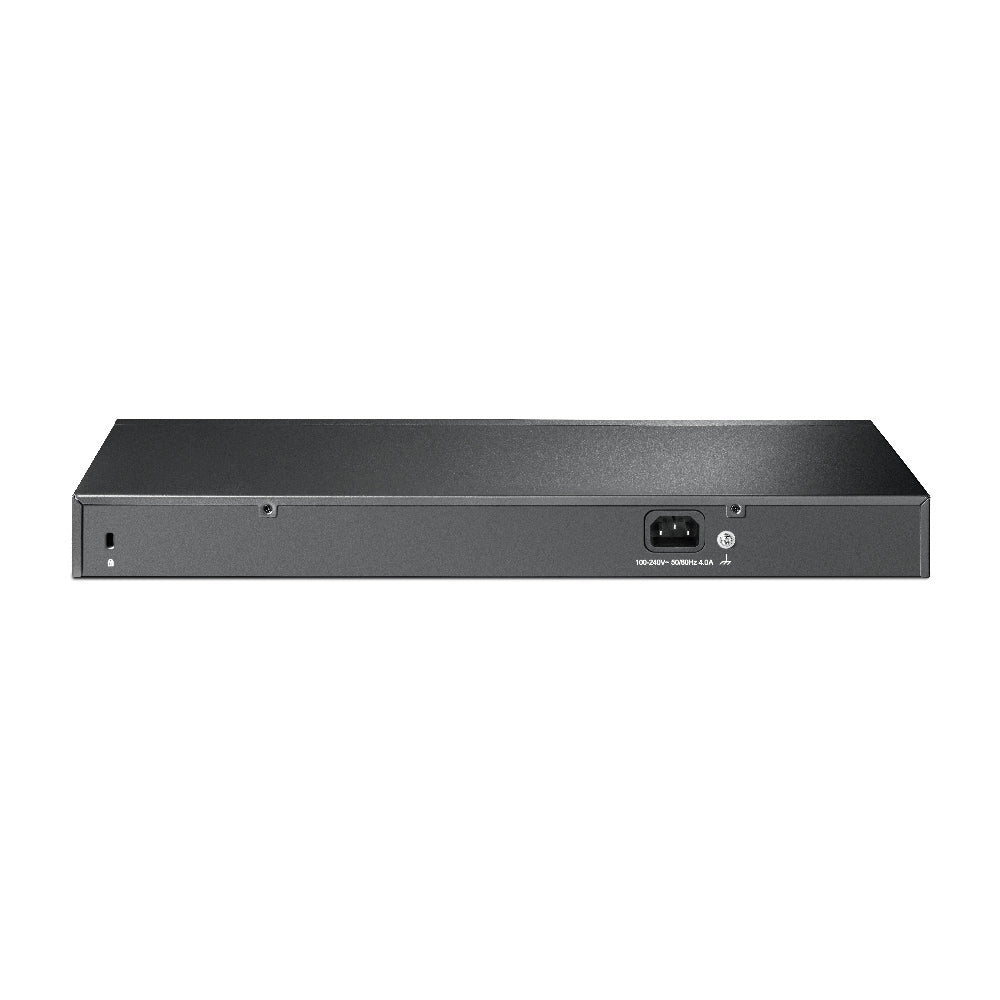

| Power Supply |
100–240V AC, 50/60 Hz |
| PoE Ports (RJ45) |
• Standard: 802.3at/802.3af compliant
• PoE Ports: Ports 1–16
• PoE Power Budget: 250 W |
| Dimensions ( W x D x H ) |
17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm) |
| Max. Power Consumption |
• 14.97 W (220/50Hz. no PD connected)
• 285.8 W (220/50Hz. with 250 W PD connected) |
| Max. Heat Dissipation |
• 51.05 BTU/h (no PD connected)
• 974.58 BTU/h (with 250 W PD connected) |
|
PERFORMANCE
|
| Switching Capacity |
7.2 Gbps |
| Packet Forwarding Rate |
5.36 Mpps |
| MAC Address Table |
8K |
| Jumbo Frame |
10 KB |
|
SOFTWARE FEATURES
|
| Advanced Features |
• Compatible With IEEE 802.3at/af Compliant PDs
• Extend Mode (Up to 250m PoE power supply and data transmission)
• Priority Mode
• Isolation Mode
• Mac Address Auto-Learning And Auto-Aging
• IEEE802.3x Flow Control |
| Transmission Method |
Store-And-Forward |
|
OTHERS
|
| Certification |
CE, FCC, RoHS |
| Package Content |
• TL-SL1218MP
• Power Cable
• Installation Guide
• Two mounting brackets and the fittings |
| Environment |
• Operating Temperature: 0–50 °C (32–122 °F)
• Storage Temperature: -40–70 °C (-40–158 °F)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing |
